9kW 600Ω Open Wire (Ladder-Line) Doublet Antennas — Legendary Versatility Meets Premium Craftsmanship
9kW 600Ω Open Wire (Ladder-Line) Doublet Antennas — Legendary Versatility Meets Premium Craftsmanship
Couldn't load pickup availability
All our products are handmade, and fulfilment times may vary depending on order volume. Please allow 2–3 weeks for your order to be completed and shipped.
Our Doublet Series offers time-tested performance for amateur radio enthusiasts across a wide range of bands. Whether you need a rugged full-size performer or a compact, pole-ready companion for portable ops, there’s a Doublet for your shack or your backpack.
These antennas are designed as single-wire radiators with a weatherproof and UV-resistant mount that fits seamlessly on top of our carbon fiber masts.
Optional Carbon Masts
Carbon masts of 6m, 10m, or 16m are available separately.
Choose Your Match
| Length (m) | Use Case | Bands | Pros | Name |
|---|---|---|---|---|
| 82m | Home (full-size) | 160–10m | Full coverage, great performance | Doublet MAXI |
| 42m | Home / Field | 80–10m | Best all-round, easier to install | Doublet CLASSIC |
| 29m | Field / Light | 40–10m | Very portable, good match with tuners | Doublet MIDI |
| 13m | POTA / Compact | 40–10m | Light, fast deploy, 7m pole ready | Doublet MINI |
Why Choose a Doublet?
Unlike monoband dipoles or commercial gimmick multibanders, a well-made doublet with a balanced feedline offers:
- True multiband capability when paired with a tuner (internal or external)
- No traps, no coils, no compromises
- Extremely low feedline loss
- High power handling, clean radiation, and great efficiency across HF
All our doublets use premium wire, weatherproof center insulators, and are designed for low-loss operation even at high power.
Tested for compatibility with a wide range of tuners, including:
- JC4s Tuner (StockCorner)
-
Tuner Genius XL (FlexRadio)
- Icom QRP AH-705 (iCOM)
- Elecraft T1 QRP Tuner (Elecraft)
- Internal tuners of FlexRadio 6000 and 8000 series
Other decent quality tuners—especially those with balanced or high-impedance capabilities—will also work effectively with our Doublet Series.
Optional Accessories
For best results and versatility, we offer an optional Wideband 9kW ICAS 1:1 Unun / Line Isolator / Choke, ideal for:
- Connecting to a coax-fed shack tuner
- Feeding any remote tuner at the feedpoint
- Minimizing common-mode currents
You may also use your own Z-Match or balanced tuner. (We currently do not offer Z-Matches, but that might change in the future.)
Mechanical & Electrical Characteristics
- Power Rating: Matches the optional 1:1 isolator – up to 9kW ICAS
- Wire: Hard-drawn, tinned copper, XLPE sheathed, weather-resistant
- Center Feed: High-strength weatherproof insulator (with optional isolator add-on)
- Feedline Compatibility: 450-ohm ladder line or open-wire line recommended
- Mounting: UV-resistant top-mount system for carbon masts (6m, 10m, or 16m options)
Deployment Recommendations

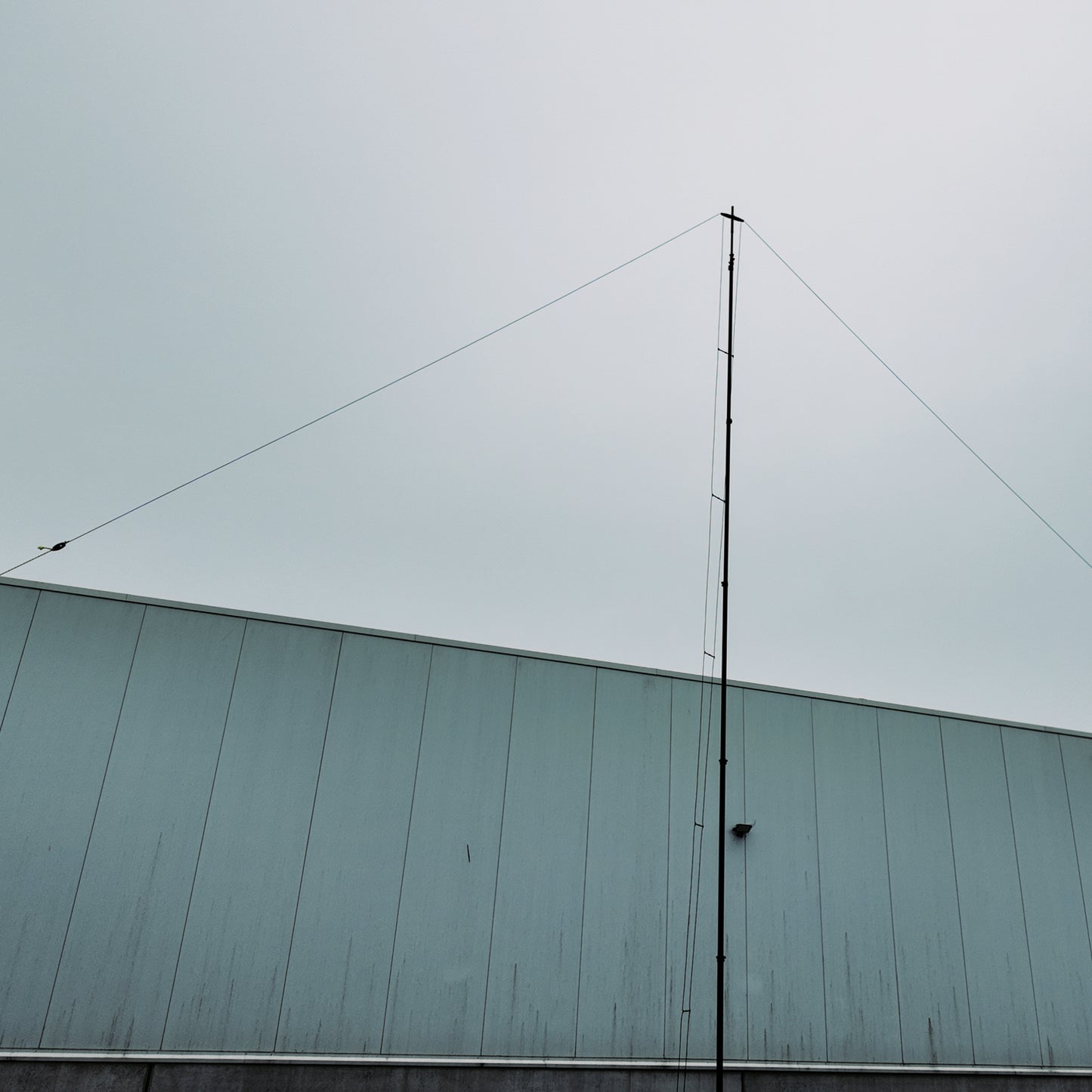

- Install as inverted-V or flattop
- Optimal height: 10m or more (the POTA version @6m height)
- For best multiband results, use with a tuner or zmatch
SWR & Tuning Note
Each installation is unique. Factors like height, terrain, feedline length, and nearby structures can impact SWR and performance. For ideal operation:
- Use a balanced tuner or a 1:1 choke + tuner or a zmatch
- Keep feedline away from metal and grounded surfaces
- SWR typically <3:1 on most bands with proper feed and tuner combo
Conclusion
Whether you need a full-sized 160m performer, a compact POTA solution, or something in between — our Doublet Series delivers. Built for serious hams who value quality, flexibility, and long-lasting materials.
From shack to summit — go balanced, go Doublet.
