2022-P-104 | µPico Stick

Details

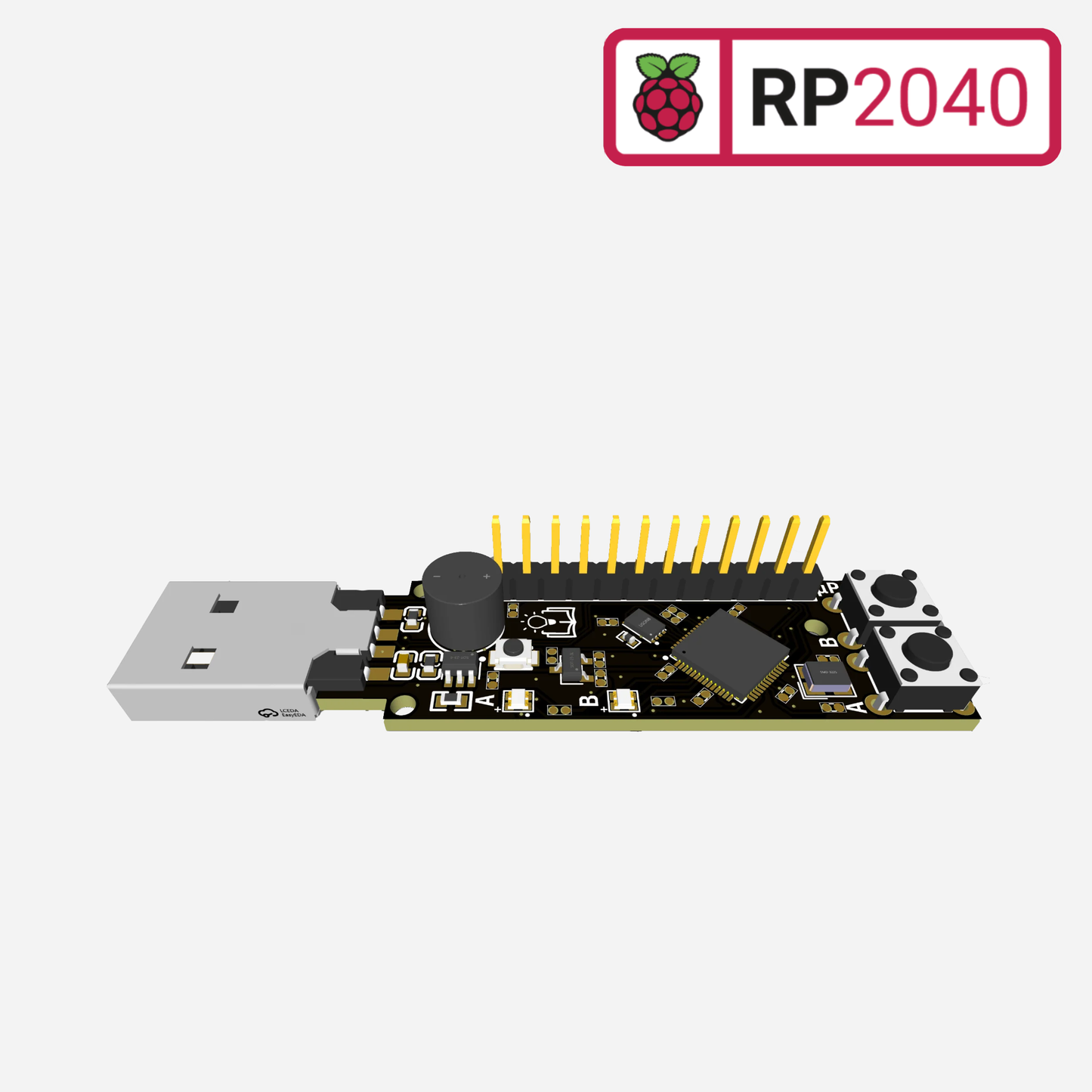

The µPico Stick is an affordable and high-performing development board, utilizing the RP2040 PICO chip developed by Raspberry Pi. You can also opt for a stylish case for added protection.

The RP2040 microcontroller chip, often referred to as "Raspberry Silicon," features a dual-core ARM Cortex-M0+ processor clocked at 133 MHz, 256 KB of RAM, 30 GPIO pins, and various interface options. Additionally, it boasts 2 MB of onboard QSPI flash memory for storing both code and data.

On Board IO

• 2 push buttons
• 2 RGB Leds
• A Piezo buzzer for audio output

Pins It exposes RP2040 pins 16 till 24. 2 ADC ports, I2C bus, SPI bus and UART0

Software

https://github.com/Guru-RF/MicroPico

Breakout board

We offer a convenient breakout board (available as an option) that exposes the pins while providing on PCB printed documentation, simplifying the process of connecting to other components.

Specifications

RP2040 microcontroller chip designed by Raspberry Pi in the UK Dual-core ARM Cortex M0+ processor, with a flexible clock running up to 133 MHz 264 kB SRAM, and 2 MB on-board Flash memory USB 1.1 host and device support Energy-efficient sleep and dormant modes Drag and drop programming using mass storage via USB On-chip accurate clock and timer Temperature sensor On-chip accelerated floating point libraries

Bill of materials

Bill of materials will be added soon.

Assembly

An assembly video will be available in the future.
