Ease Electronics SMA Male to SMA Female 50 Ω RF Right Angle Adapter
Ease Electronics SMA Male to SMA Female 50 Ω RF Right Angle Adapter
Couldn't load pickup availability

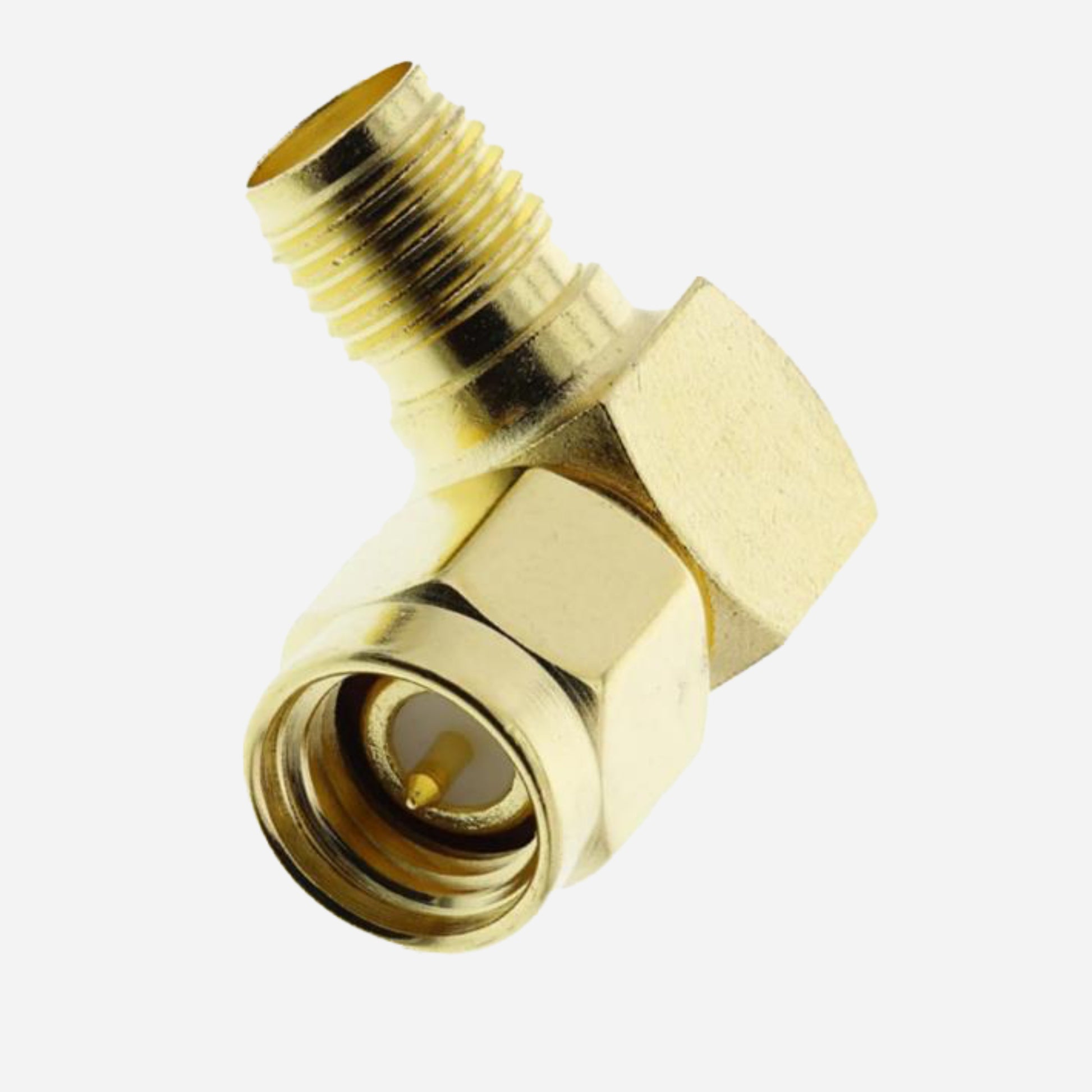

The Ease Electronics 7123292A077 is a compact right-angle SMA-to-SMA RF adapter that converts an SMA plug (male pin) to an SMA jack (female socket) while maintaining a 50 Ω interface. Use it when you need a clean 90° turn to reduce mechanical stress, fit tight enclosures, or keep a compact RF stack.
Ready to deploy: When a straight SMA connection sticks out too far, this elbow keeps your setup compact ... without adding a jumper cable.
What this adapter is for
- Tight enclosures ... route SMA connections in small boxes without bending coax hard against the connector.
- SDR + RF accessory chains ... a neat 90° turn between filters, attenuators, LNAs, and receivers.
- Strain reduction ... less leverage on SMA jacks compared to a stiff coax pulling straight out.
Specs at a glance
| Parameter | Value |
|---|---|
| Manufacturer / MPN | Ease Electronics / 7123292A077 |
| Adapter type | Plug to Jack |
| Conversion type | Same series (SMA to SMA) |
| Convert from | SMA Plug, Male Pin |
| Convert to | SMA Jack, Female Socket |
| Center gender | Female to Male |
| Impedance | 50 Ω |
| Style | Right angle |
| Mounting type | Free hanging (in-line), right angle |
| Fastening type | Threaded, threaded |
| Frequency (max) | 12.4 GHz |
| Center contact material | Beryllium copper |
| Center contact plating | Gold, nickel |
| Body finish | Gold |
Installation notes (so it stays reliable)
- Snug, not savage ... SMA is precision hardware; avoid over-torque.
- Support stiff coax ... strain-relief heavier cables so the adapter doesn’t become a lever.
- Keep mating faces clean ... dust/oils can cause intermittent contact over time.
Safety note
RF adapters are not high-voltage test accessories. Avoid handling live RF connections and follow safe RF practices.
Install with confidence: A compact 50 Ω SMA elbow that keeps your RF chain clean and mechanically stable ... ideal for SDR benches and compact receiver front ends.
Mini-FAQ
- Is this SMA male to SMA female? ... yes: SMA plug (male pin) to SMA jack (female socket).
- Is it 50 Ω? ... yes.
- Is it straight or right-angle? ... right-angle (90°).
- Is it OK for HF? ... absolutely; it’s rated far above HF.
