250W Solid Mini V - Ultimate Inverted V Dipole: For the balcony operator

250W Solid Mini V - Ultimate Inverted V Dipole: For the balcony operator

€1,00 EUR
€1,00 EUR
Sale Sold out
Tax included.
All our products are handmade, and fulfilment times may vary depending on order volume. Please allow 2–3 weeks for your order to be completed and shipped.

Built to endure. Engineered for performance.

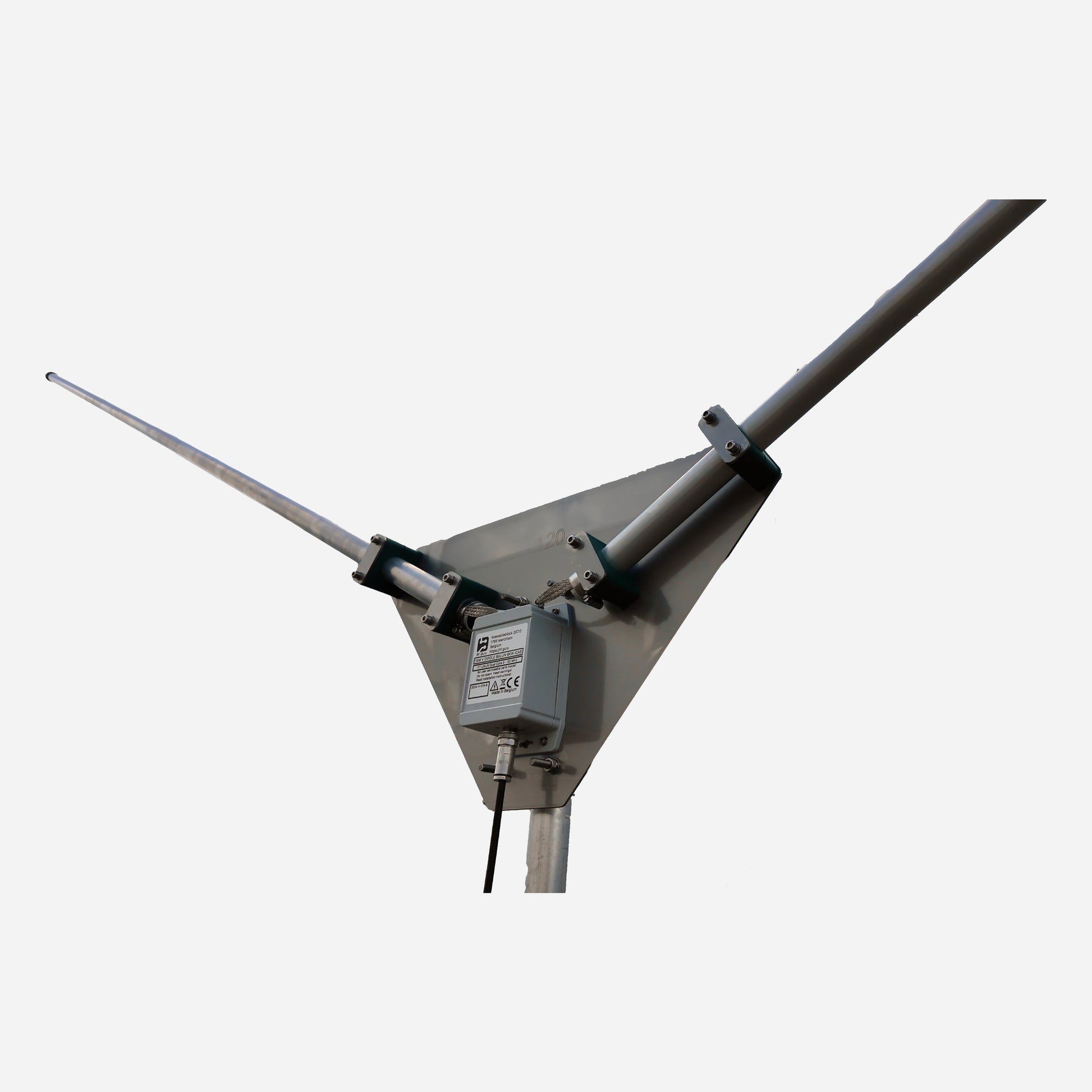

Our Solid Mini V Dipole redefines ruggedness in HF operation. Constructed from 35 mm diameter, 2.5 mm wall thickness marine-grade aluminium (EN AW-5083), each leg is tilted 30° outward to form a non-resonant, unyielding V. This geometry enables reasonable-efficiency radiation while ensuring extreme mechanical durability—whether in searing sun, driving rain, or icy wind. Designed for serious operators who need a practical compromise: a high-power, plug-and-play HF solution with minimal footprint.

We offer three balcony-friendly multiband versions of the Solid Mini V Dipole, each incorporating a built-in 4:1 UNUN and intended for use with an external tuner. These versions are ideal for operators with limited space who still want reliable, reasonably efficient, and high-power-capable multiband HF performance.

Balcony Versions (Tuner Required):

Model

Element Length per Leg

Total Span

Apex Height (L × √3⁄2)

Bands Usable*

Feed Type

Est. TX Efficiency (40–10m)

Max Power Rating

SMV-15

1.5 m

~3.0 m

1.30 m

20–10m (40m NVIS QRP)

4:1 UNUN + tuner

Low-Mid (~10–45%)

250 W PEP

SMV-20

2.0 m

~4.0 m

1.73 m

40–10m

4:1 UNUN + tuner

Mid (~15–50%)

350 W PEP

SMV-30

3.0 m

~6.0 m

2.60 m

40–10m (better gain/NVIS)

4:1 UNUN + tuner

Mid-High (~25–60%)

500 W PEP

*Efficiency depends on band, mounting height, and tuner.

Due to the high and fluctuating SWR, these models derate the power rating of our standard dual-core 4:1 UNUN (normally 3.4 kW PEP) to prevent core heating and imbalance at extreme mismatch. Use only with a tuner.

Features:

  • 4:1 UNUN included (balanced-to-unbalanced, dual-core ferrite)
  • Marine-grade EN AW-5083 aluminium arms or bring-your-own
  • 120-degree included angle for wide pattern
  • Center bracket fits 30–60 mm vertical mast
  • Stainless steel mounting hardware
  • Lightweight, packable, and mechanically robust
  • Ideal for apartments, balcony DXing, field use, or stealthy installs

Installation & Use:

  • Feed with any external tuner (manual or automatic)
  • Mount at 1.5 to 3 m height for best results on 40–10 m
  • If balcony is higher them 5m take the inverted V option.
  • Add 1:1 choke 1–2 m from tuner to prevent RF-on-shield

Why Choose the Solid Mini V Dipole?

  • True multiband coverage from a small footprint
  • Real-world TX efficiency far better than random wires or shorted verticals
  • Clean radiation with low return currents (skin effect)
  • No counterpoise or radials needed
  • Designed to endure balcony life and QRO-compatible within spec

Solid Mini V for your Balcony — Compact. Capable. Built to perform.

Models Without Aluminium Legs:

Prefer to use your own aluminium tubing? We offer the Solid V Kit: includes everything except the radiating elements.

Same reinforced center mount
Pre-mounted balun or UNUN (select at checkout)
All gaskets, straps, bolts, and mechanical fittings

Perfect for homebrew enthusiasts.

Why Choose Solid V?

Outstanding bandwidth due to large element diameter
Mechanically and electrically superior to thin-wire dipoles
No gimmicks, no compromises—just performance
Professionally built to last for decades

Solid Mini V Dipole — Built to last.
