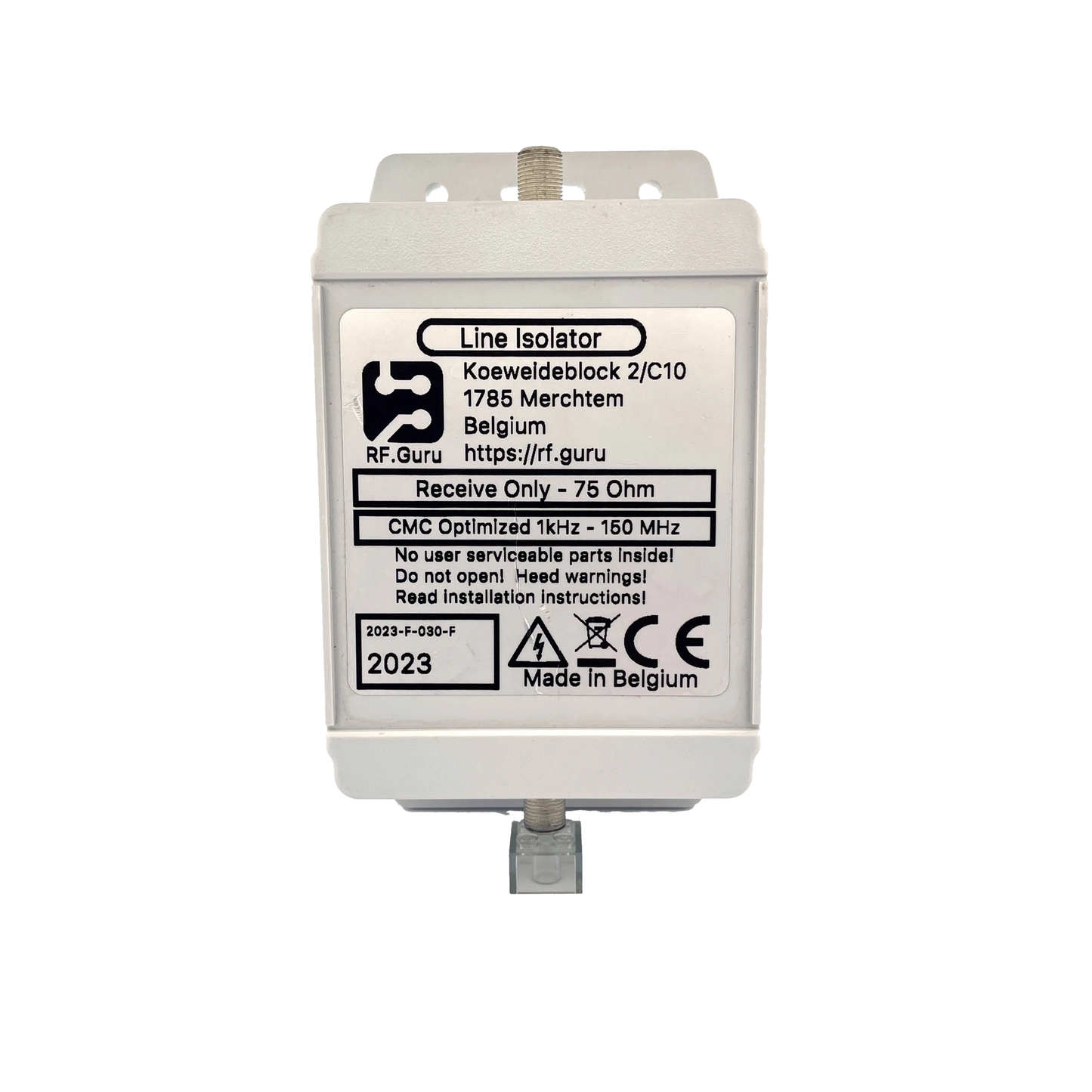

RX 75Ω or RX 50Ω 1 KHz - 150 MHz +45dB CMR Optimized Line Isolator

All our products are handmade, and fulfilment times may vary depending on order volume. Please allow 2–3 weeks for your order to be completed and shipped.

Why ?

The Importance of a High-Quality Common-Mode Choke or Line Isolator
What Is the Biggest Effect of a Line Isolator?

Function

• Compact receive only Common-Mode Choke type 1/1 UNUN.
• Less than 0.5dB insertion loss

• Build around 3 independent ferrite core for each portion of the band.

The common mode rejection performance was measured using two Tekbox current clamps in a differential setup. A wideband noise source was injected, and the resulting signal was analyzed with a spectrum analyzer. The test setup confirmed a wideband common mode rejection of more than +45 dB across the HF spectrum.

Mechanical Characteristics

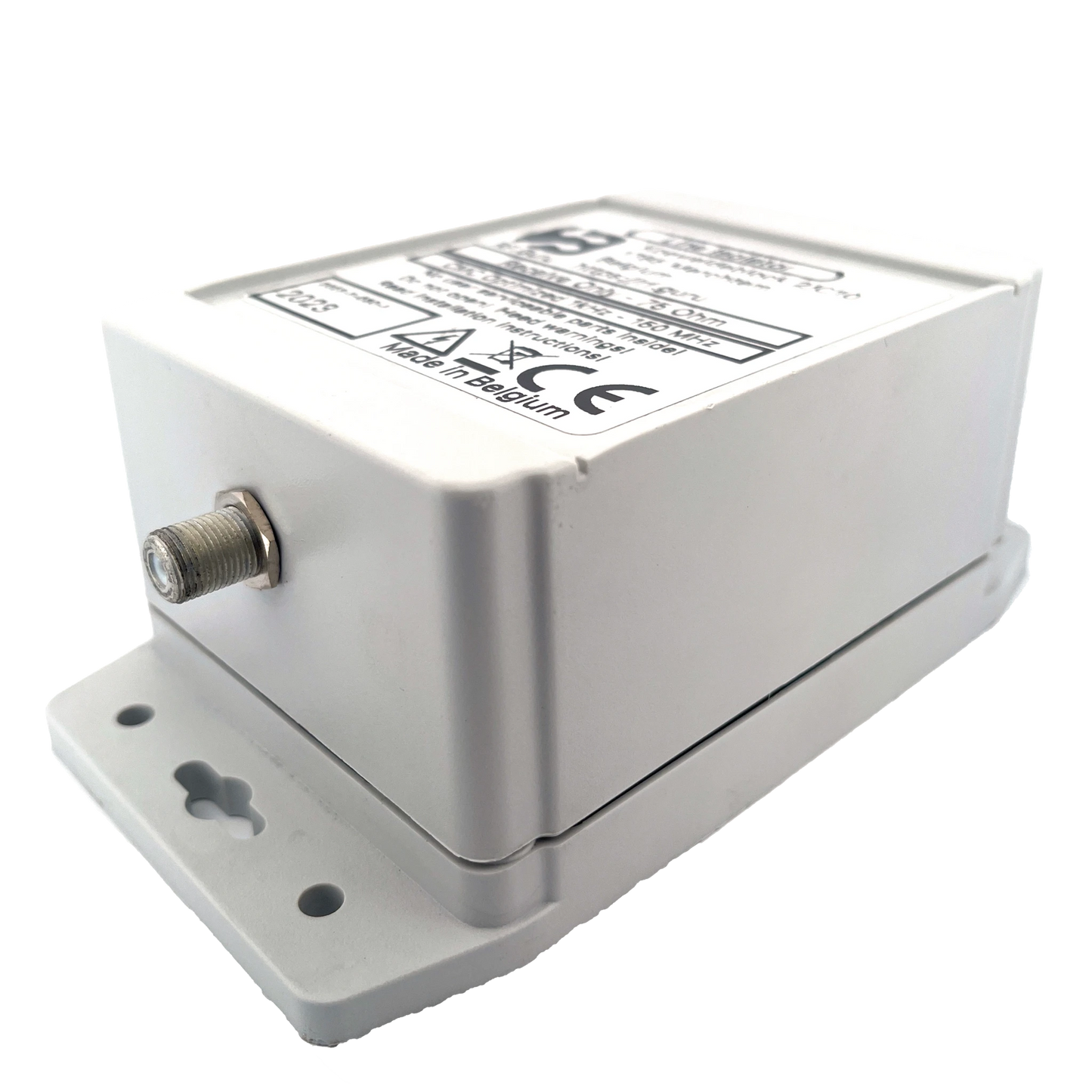

• Professional 75Ω F-connector. (IP66 after sealing with self- vulcanizing tape or equivalent).
• Professional 50Ω PL SO239 or N connector. (IP66 after sealing with self- vulcanizing tape or equivalent).

Deployable frequency range: 1 kHz to 150 mHz
