4kW End-Fed Half-Wave Antenna 80M 40M (EFHW8040)
All our products are handmade, and fulfilment times may vary depending on order volume. Please allow 2–3 weeks for your order to be completed and shipped.

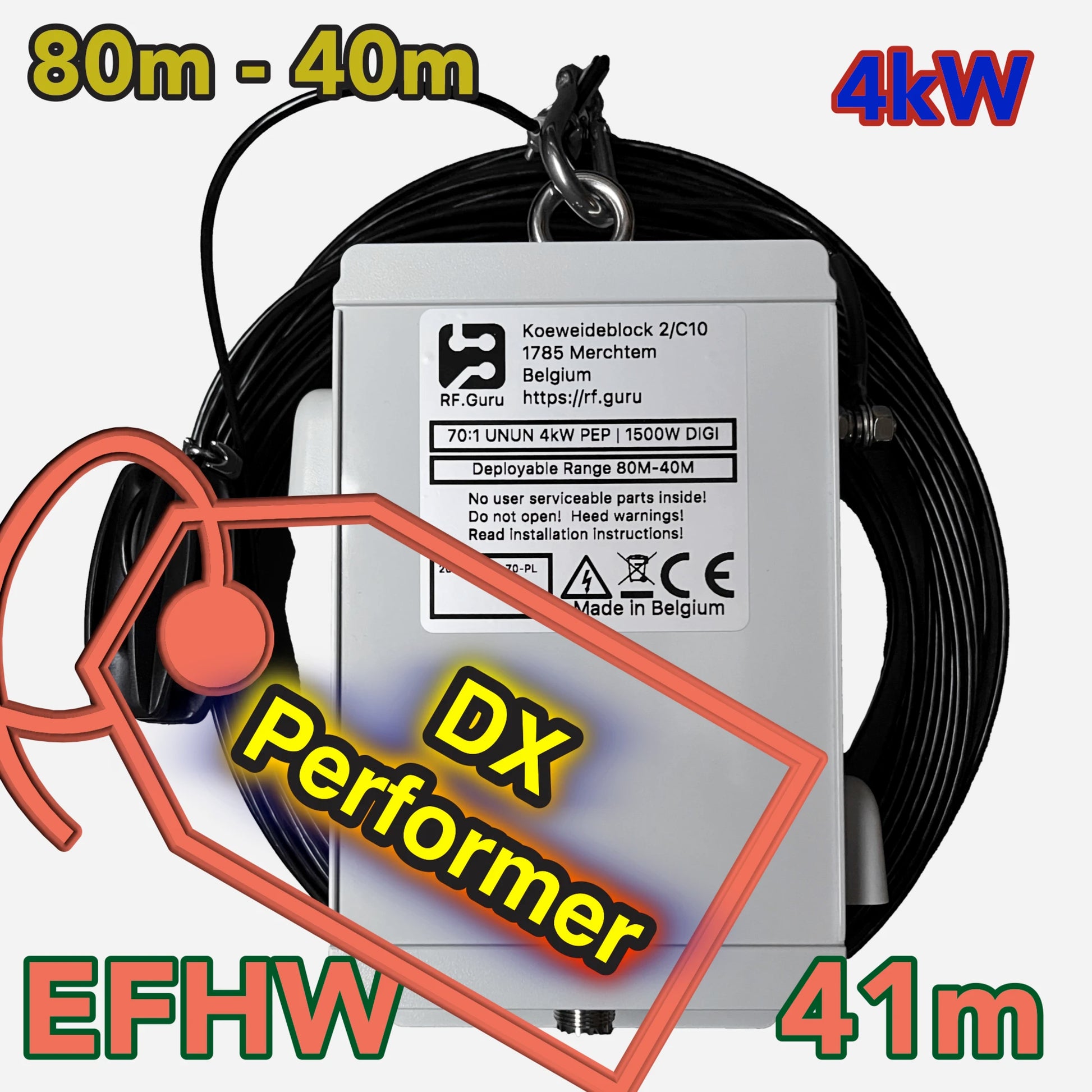

The EFHW8040 is a multi-band end-fed half-wave antenna designed for exceptional performance across HF bands, including 80m, 40m. This antenna provides reliable, efficient communication for portable, emergency, or permanent installations, ensuring resonance across its frequency range with minimal compromise.
End-Fed antennas deployment tool
Ground stake (Optional)
A 75cm RVS ground stake with an N-connector bulkhead. A common-mode choke is not necessary at the feedpoint for this antenna and is ideally placed after at least 40m of coaxial feedline.
Installation options
This top-band antenna can be configured as an inverted L, sloping, flattop, or inverted V; however, we recommend the inverted L setup. Ensure the horizontal portion is at least 15 meters above ground, and the feed point is positioned at a minimum height of 1 meter.
N connectors
Given the high power rating, these are exclusively supplied with N connectors!
Electrical Specifications
-
Power Ratings:
- 4000W ICAS (Intermittent Commercial and Amateur Service)
- 2000W CCS (Continuous Commercial Service)
- 1500W FT8/FT4
- For ICAS and CCS power definitions, More info
-
Frequency Range:
- Covers 80m, 40m.
- Covers 80m, 40m.
- Feedpoint Impedance: Integrated 70:1 UNUN transformer for precise impedance matching to 50-ohm systems.
- Insertion Loss: Less than 0.2 dB, ensuring maximum power transfer.
- VSWR: Typically less than 2:1 on supported bands with proper deployment.
Mechanical Characteristics
- Core: High-performance ferrite core optimized for stability and low loss.
- Transformer: Integrated 68:1 impedance transformer with heat-resistant Teflon wire.
- Connector: Professional-grade N connector, weatherproof to IP66 when sealed.
-
Antenna Wire:
- Premium 41m of hard-drawn, tinned copper wire with a cross-linked polyethylene (XLPE) sheath for exceptional durability and weather resistance.
- Flexible stranded construction ensures ease of deployment and handling.
- Diameter: 2mm, specifically designed for stationary use, providing a robust and long-lasting solution for outdoor installations.
- Enclosure: Rugged polycarbonate housing, waterproof to IP64, UV-resistant, and shockproof.
- Weight: Approx. 650g.

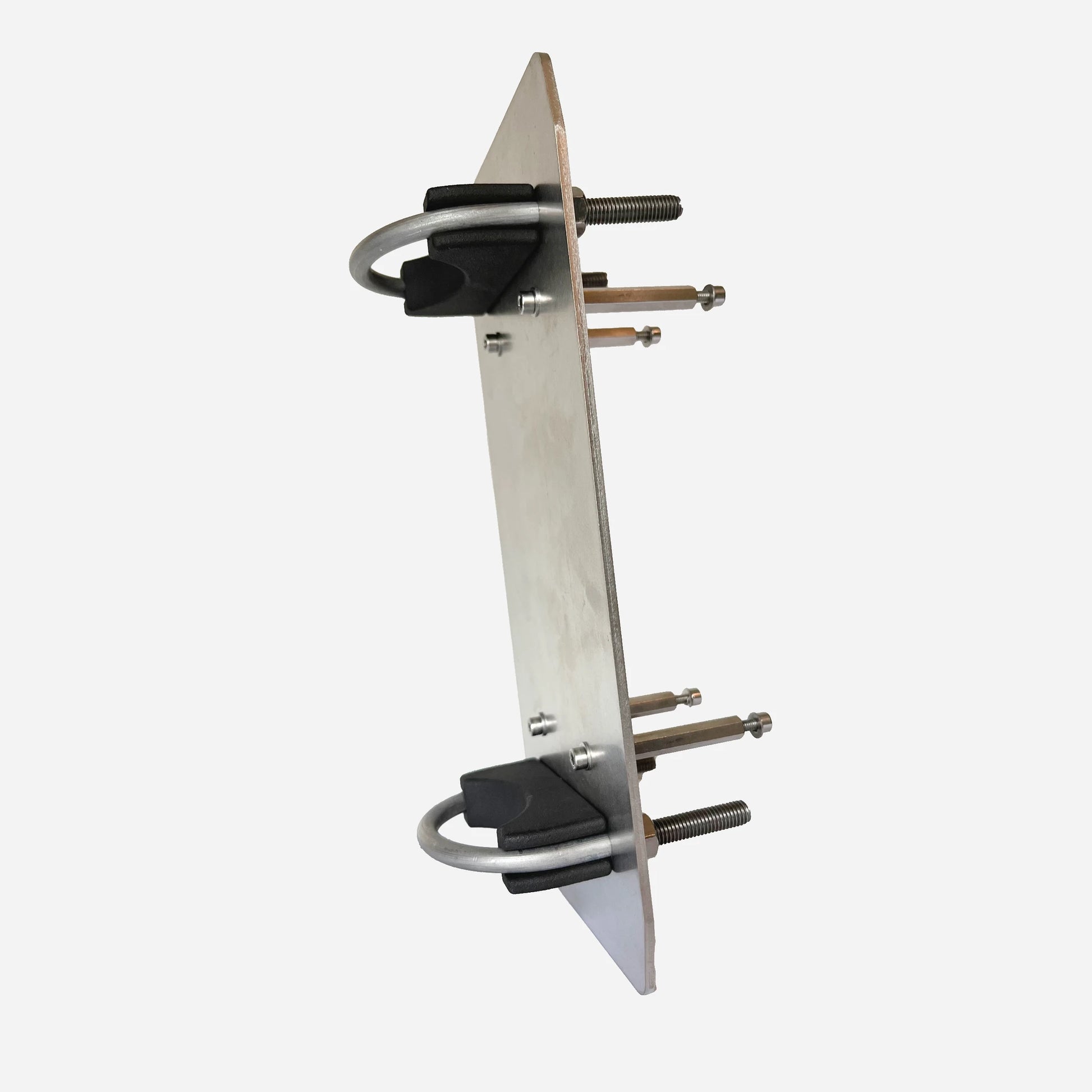

Mounting Kit (Optional)
- 1 x Stainless steel (type 316) mounting plate.
- 2 x Stainless steel U-bolt mast clamps (60/M8).
- 2 x Black nylon tube inlays.
- 8 x Stainless steel hex socket cap screws (DIN 912, M4 x 12mm).
- 4 x Stainless steel spacers (50mm).
Deployable Frequency Range
- Covers 80m to 40m, with resonance on:
-
80m, 40m.
-
80m, 40m.
Power Handling Notes
- For VSWR values < 2.0:1:
- 4000W ICAS
- 2000W CCS
- 1500W FT8/FT4 (high duty cycle modes)
- For VSWR values > 2.0:1, power de-rating is advised:
- < 1500W PeP for VSWR > 3:1
- < 1000W PeP for VSWR > 5:1
Key Advantages
- Wide Frequency Coverage: Resonant on multiple HF bands without traps or coils.
- Ease of Deployment: Easy to install, ideal for field-day and permanent setups.
- Reduced RFI: Integrated common-mode choke eliminates unwanted currents.
- Rugged and Weatherproof: Built to withstand the elements, making it suitable for long-term outdoor use.
- Durable Antenna Wire: Hard-drawn, tinned copper wire with XLPE sheath ensures superior longevity and performance, even in harsh conditions.
Conclusion
The EFHW8040 is the perfect solution for amateur radio enthusiasts seeking a multi-band antenna that delivers performance, durability, and versatility. Whether you're setting up for field-day operations, emergency use, or a permanent station, the EFHW8040 ensures reliable communications with minimal effort.
