• HotSPOT2 UHF

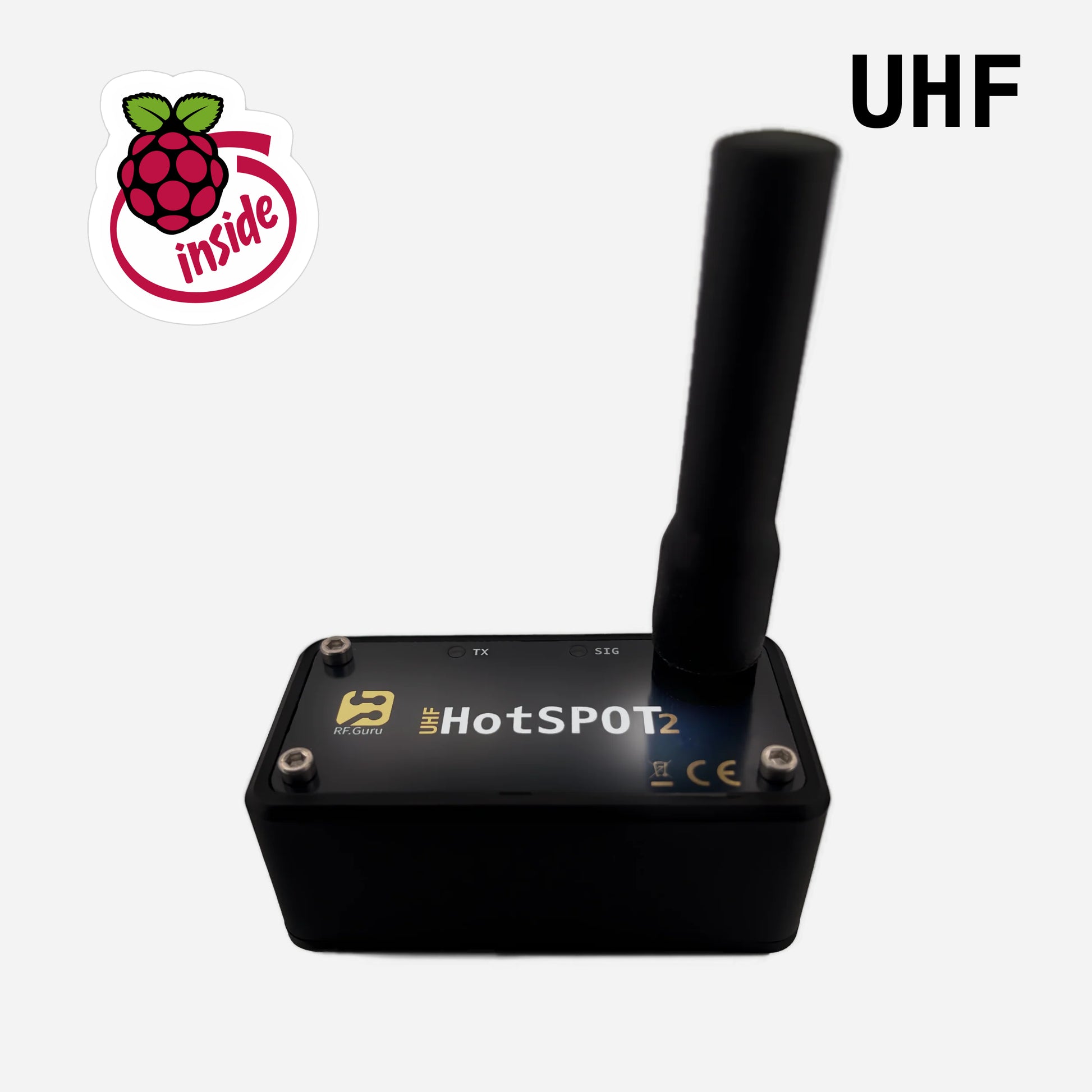

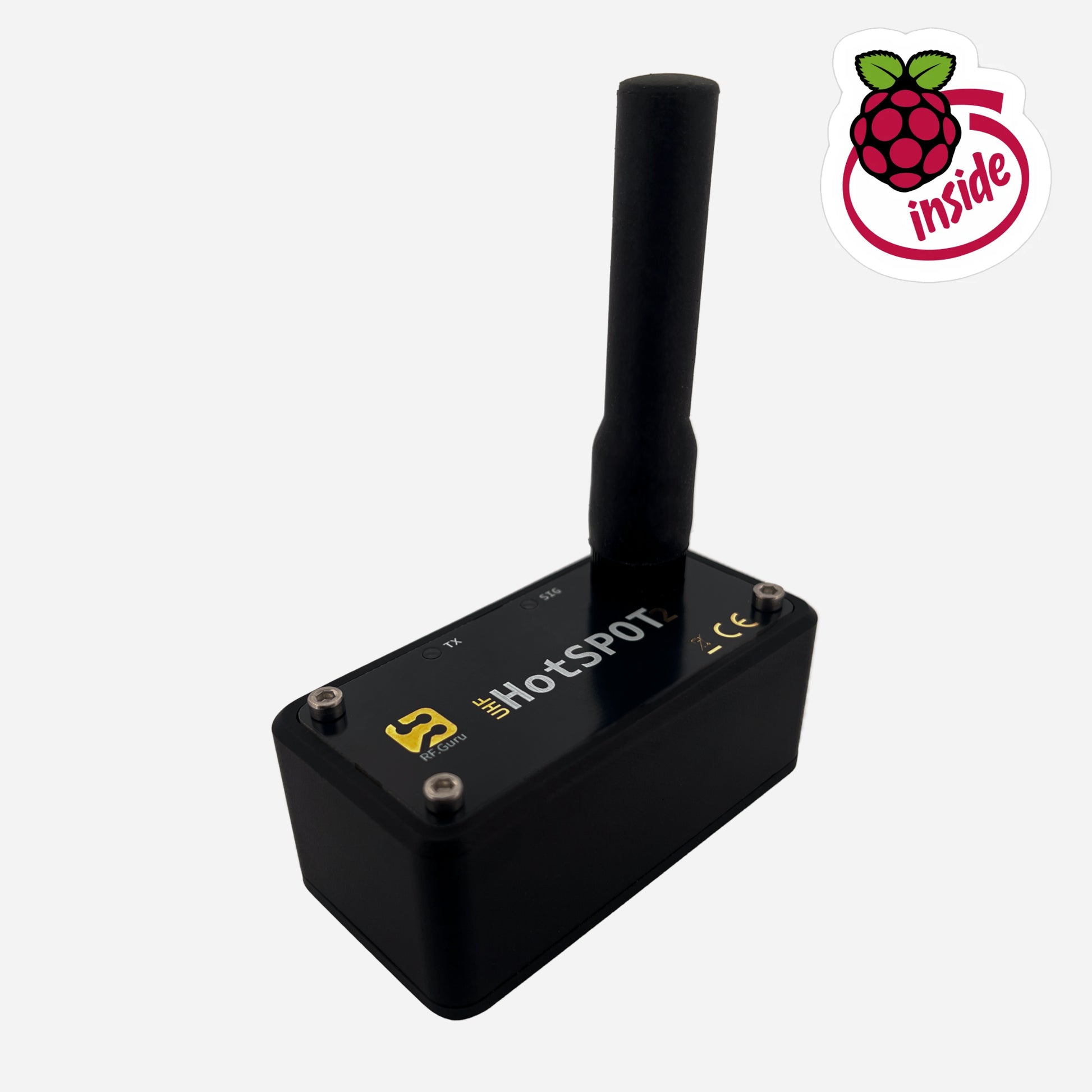

  • A compact device housed in an enclosure, featuring a UHF antenna, designed to function as an EchoLink/SVXLink analog hotspot.
1 2

RF Guru

SVXLink Analog HotSPOT2 70cm UHF 100mW CE

SVXLink Analog HotSPOT2 70cm UHF 100mW CE

€163,00 EUR
€163,00 EUR
Sale Sold out
Tax included.
Now CE Certified — Fully tested for safety, quality, and compliance. Download CE Certificate (PDF)

SVXLink Analog Hotspot2 — Raspberry Pi Zero 2 W Bundle (UHF 70 cm)

Experience the SVXLink Analog Hotspot2, a compact HAT for the Raspberry Pi Zero. With its UHF 70 cm radio module and Wolfson DAC/ADC, it runs flawlessly as an EchoLink/SVXLink analog hotspot. Pair with AnalogBridge (DVSwitch) to reach BrandMeister, OpenDMR, and more.

Specs at a Glance

Feature Specification
Frequency Range 400–480 MHz (UHF 70 cm)
Output Power 20 dBm (~100 mW)
RX Sensitivity −104 dBm @ 12 dB SINAD
Bandwidth 12.5 kHz / 25 kHz
Clock Stability 1 ppm KDS TCXO
Audio Codec Wolfson WM8960 ADC / 1 W DAC (48 kHz)
Compliance CE (spurious: worst-case −86.23 dBc)
Power (with Pi Zero W) ~220 mA RX / ~370 mA TX

Also Available as PCB

View PCB-Only Version

Included in the Bundle

Key Specifications

  • Raspberry Pi pin-compatible HAT
  • PCB ENIG (Electroless Nickel Immersion Gold)
  • Independent Tx/Rx frequency, CTCSS, CDCSS
  • Output power: 20 dBm (~100 mW)
  • RX sensitivity: −104 dBm (12 dB SINAD)
  • Adjustable RX/TX volume
  • Status LEDs: Signal/Tone, TX/PTT

Power Consumption with Pi Zero W

  • Receive: ~220 mA
  • Transmit: ~370 mA

Software

SVXLink Bookworm Image
SVXSpot Repository

Measurements

All tests were performed using a calibrated Vector Network Analyzer (VNA) and 36 dB attenuator. Worst-case harmonic observed: −86.23 dBc (3rd harmonic). This exceeds ETSI EN 300 220 requirements (spurious ≥ 40 dB below carrier for ≤ 30 dBm transmitters), providing an extra margin of > 40 dB. Spectrum analysis confirms excellent spurious suppression and clean transmission within the 12.5 kHz channel.

Compared with leading commercial brands (Kenwood, Icom, Yaesu), the Hotspot2 demonstrates superior spectral purity and fully meets CE RED and international standards.

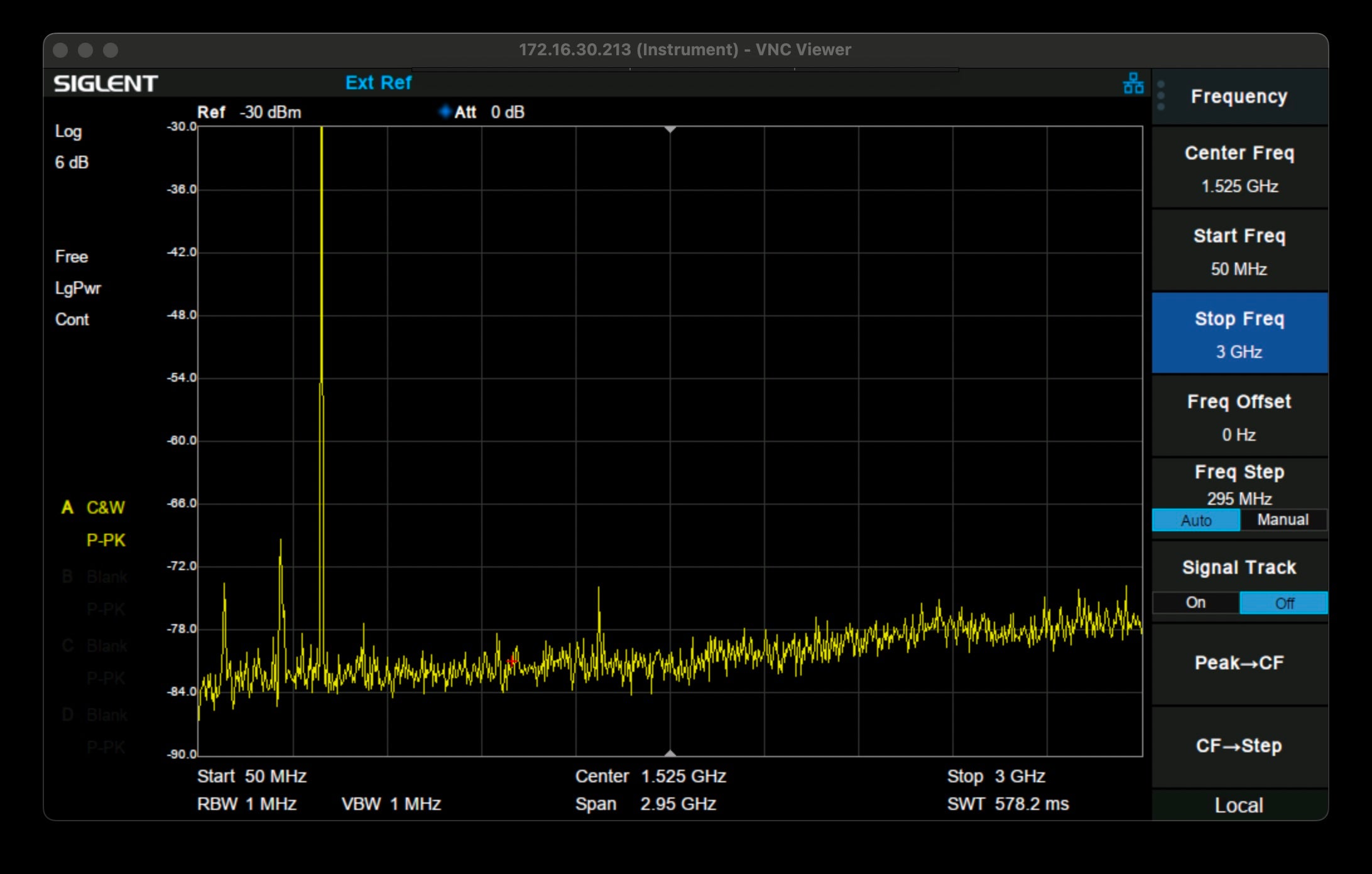

Spectrum

SVXLink Hotspot2 UHF Spectrum

Harmonics

SVXLink Hotspot2 UHF Harmonics

Channel Power

SVXLink Hotspot2 UHF Channel Power

Mini-FAQ

  • Is it CE certified? — Yes. See the certificate link at the top.
  • Which band is supported? — UHF 70 cm, 400–480 MHz.
  • Can it act as a hotspot? — Yes. Designed for EchoLink/SVXLink analog hotspot use.
  • Digital networks? — Use AnalogBridge (DVSwitch) to connect to BrandMeister, OpenDMR, etc.
  • Output power? — ~100 mW (20 dBm).
  • Sensitivity? — ~−104 dBm @ 12 dB SINAD.
  • What antenna is included? — The bundle ships with a Nagoya 810SP dual-band antenna (144/430 MHz).
View full details
