Atem Cable 50 Ohms SMA Male to N Male (0.5m)

Atem Cable 50 Ohms SMA Male to N Male (0.5m)

€51,99 EUR
€51,99 EUR
Sale Sold out
Tax included.

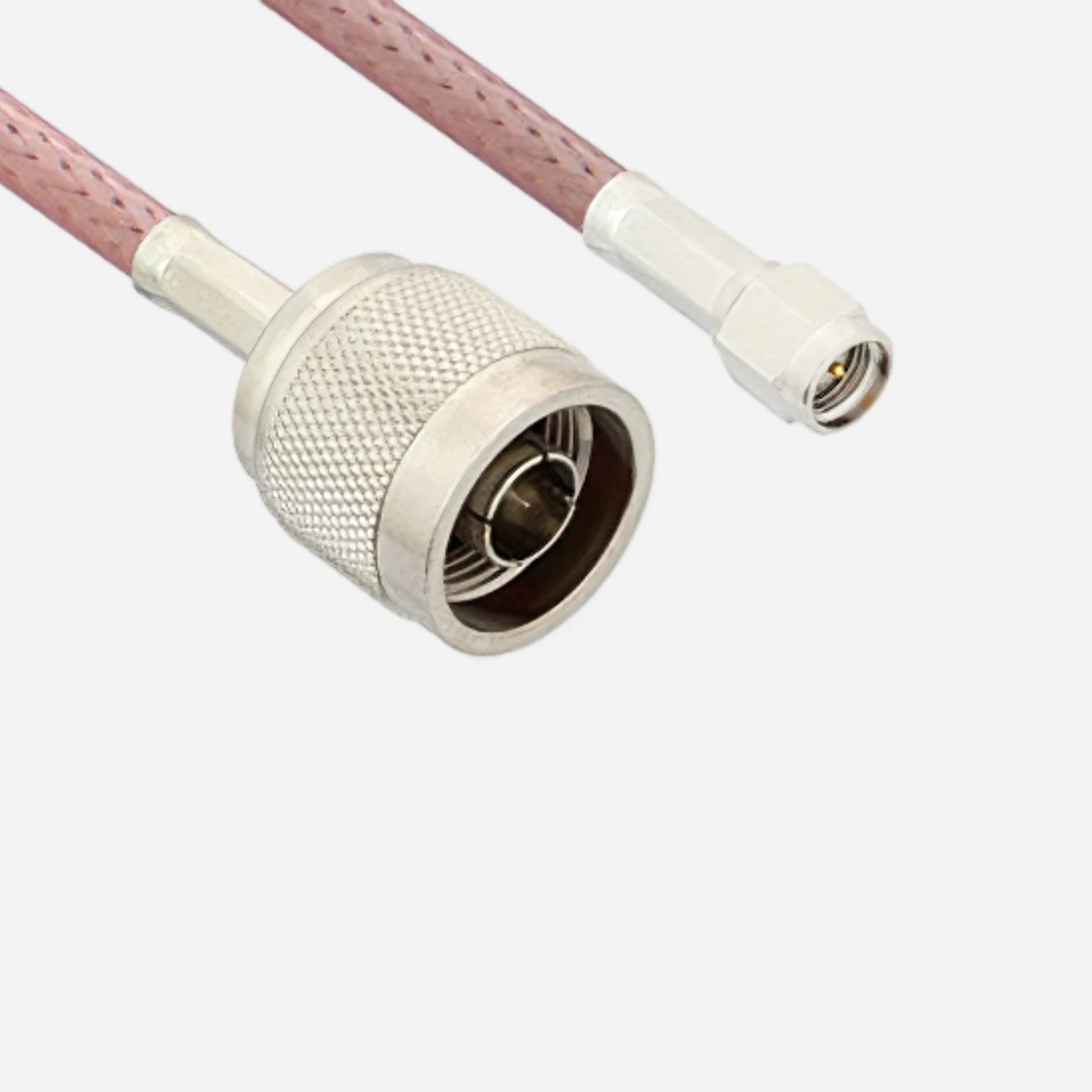

Flexible RG142 Coaxial Cable Assembly – 50 cm

High-performance 50 cm (19.7 in) flexible coaxial cable assembly featuring an SMA straight plug and an N-type straight plug. Designed for reliable RF signal transmission at frequencies from DC to 8 GHz.

Manufacturer: ATEM
Reference: 308-0341-xxxxA
Assembly length: 50 cm (19.7 in)
Cable type: RG142B/U

Product Configuration

  • SMA straight plug connector — A01077
  • White protective sleeve — A21023
  • N-type straight plug connector — A03191
  • RG142B/U coaxial cable — A91051

Electrical Specifications

Impedance 50 ± 2 Ω
Operating frequency DC to 8 GHz
Velocity of propagation 70%
Voltage withstand 1,500 Veff

Maximum Insertion Loss

Frequency 500 MHz 1.5 GHz 3 GHz 6 GHz 8 GHz
Loss (dB/m) 0.37 0.69 1.03 1.68 2.13

Mechanical Construction

  • Inner conductor: Solid silver-coated copper-clad steel (SCCS)
  • Dielectric: PTFE
  • First braid: Silver-plated copper (CuAg)
  • Second braid: Silver-plated copper (CuAg)
  • Jacket: FEP
  • Outer diameter: 4.95 mm (0.19 in)

Environmental Specifications

Operating temperature: −45°C to +125°C

Quality Control

  • Mechanical length inspection
  • Electrical continuity test
  • Dielectric-withstand test

Supplied length: 50 cm (19.7 in). Each assembly undergoes mechanical length inspection, electrical continuity testing and dielectric-withstand testing before delivery.
