RF Guru

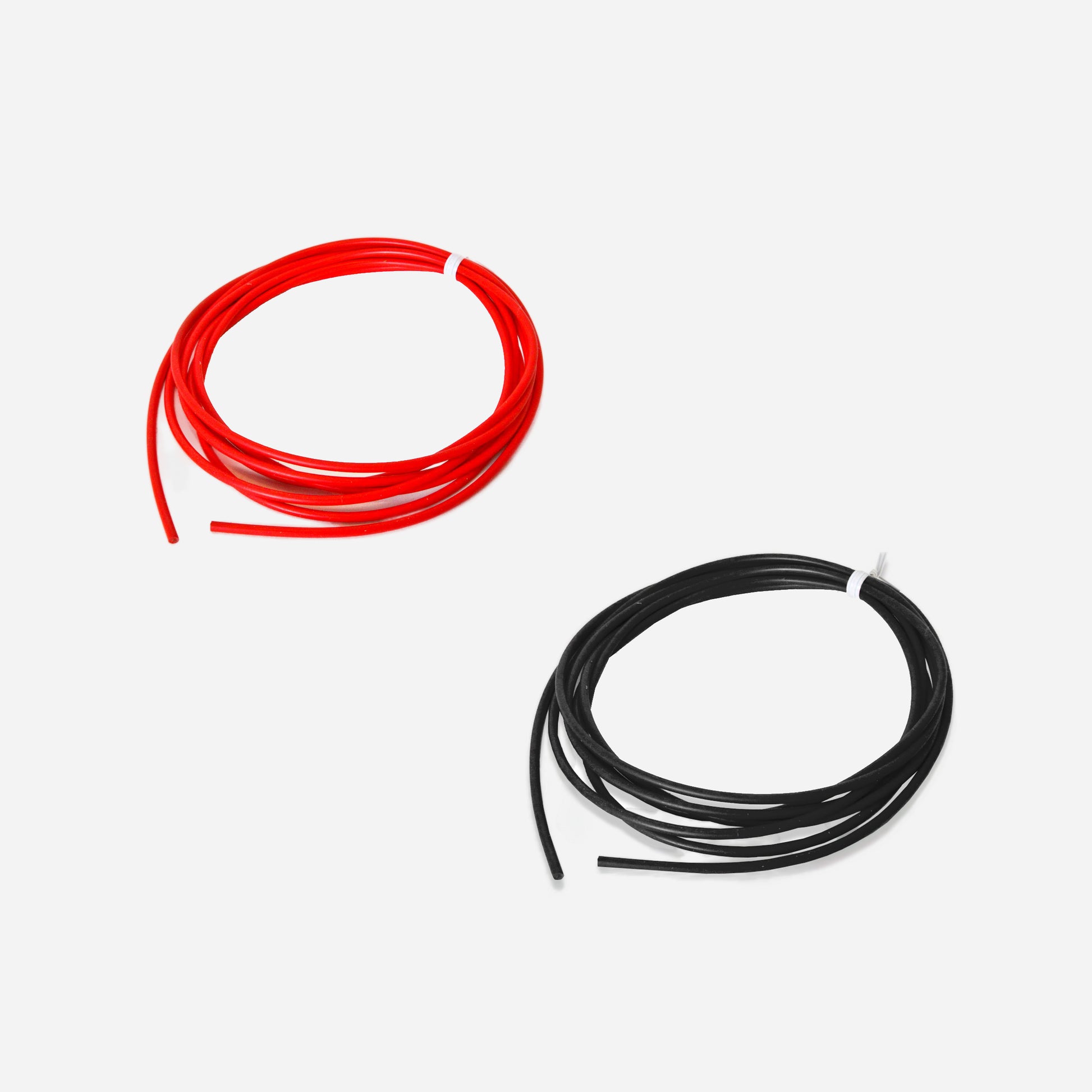

45A Silicone Rubber Red/Black Jumper 25cm

45A Silicone Rubber Red/Black Jumper 25cm

€8,00 EUR
€8,00 EUR
Sale Sold out
Tax included.

Extra Heavy-Duty Silicone Test Lead Wire — 10 AWG Red

Technical Overview: Ultra-flexible 10 AWG tinned-copper wire with a rugged 6 mm silicone jacket, ideal for high-current DC lines, bench power, test leads, and mobile installations. Rated to 1,100 V, withstands extreme temperatures, and offers exceptional flexibility thanks to its 1050-strand construction. Sold per 25 cm, supplied in one continuous length up to 7 m.

Key Features

  • 10 AWG tinned copper: 1050 × 0.08 mm strands for extremely low resistance and high flexibility.
  • Silicone insulation: Highly flexible, heat-resistant jacket (-40 °C to +180 °C).
  • High-voltage rating: 1,100 V rating, 3.2 kV/min dielectric strength, 10 kV spark tested.
  • UL Recognized: UL 3640 & FT2 temperature rating.
  • Heavy-duty use: Ideal for test leads, battery cables, high-current DC distribution.

Technical Specifications

  • Gauge: 10 AWG
  • Stranding: 1050 × 0.08 mm
  • Conductor: Tinned copper
  • Insulation: Silicone, Ø ≈ 6 mm
  • Voltage rating: 1,100 V
  • Temperature range: -40 °C to +180 °C
  • Certifications: UL 3640, FT2

Ordering & Pricing

Price per 25 cm. Quantity reflects 25 cm units shipped as one continuous piece (max 7 m).



Extra Heavy-Duty Silicone Test Lead Wire — 10 AWG Black

Technical Overview: Ultra-flexible 10 AWG tinned-copper silicone test lead wire for high-current DC, bench, and field use. Same 6 mm heavy-duty silicone jacket and 1050-strand core for maximum flexibility even in harsh environments. Sold per 25 cm, supplied in one continuous length up to 7 m.

Key Features

  • Red/black pair compatible: Ideal for clean DC wiring, battery harnesses, and RF-quiet installs.
  • Extreme flexibility: Fine-strand tinned-copper core for easy routing.
  • High-temp silicone sheath: Stays flexible down to –40 °C and stable up to +180 °C.
  • High-voltage capable: Rated 1,100 V, spark tested at 10 kV.
  • UL Recognized: Meets UL 3640 and FT2 standards.

Technical Specifications

  • Gauge: 10 AWG
  • Stranding: 1050 × 0.08 mm
  • Conductor: Tinned copper
  • Outer diameter: ~6 mm silicone
  • Voltage rating: 1,100 V
  • Temperature range: -40 °C to +180 °C
  • Certifications: UL 3640, FT2

Ordering & Pricing

Price per 25 cm. Quantity reflects 25 cm units shipped as one continuous piece (max 7 m).

View full details
