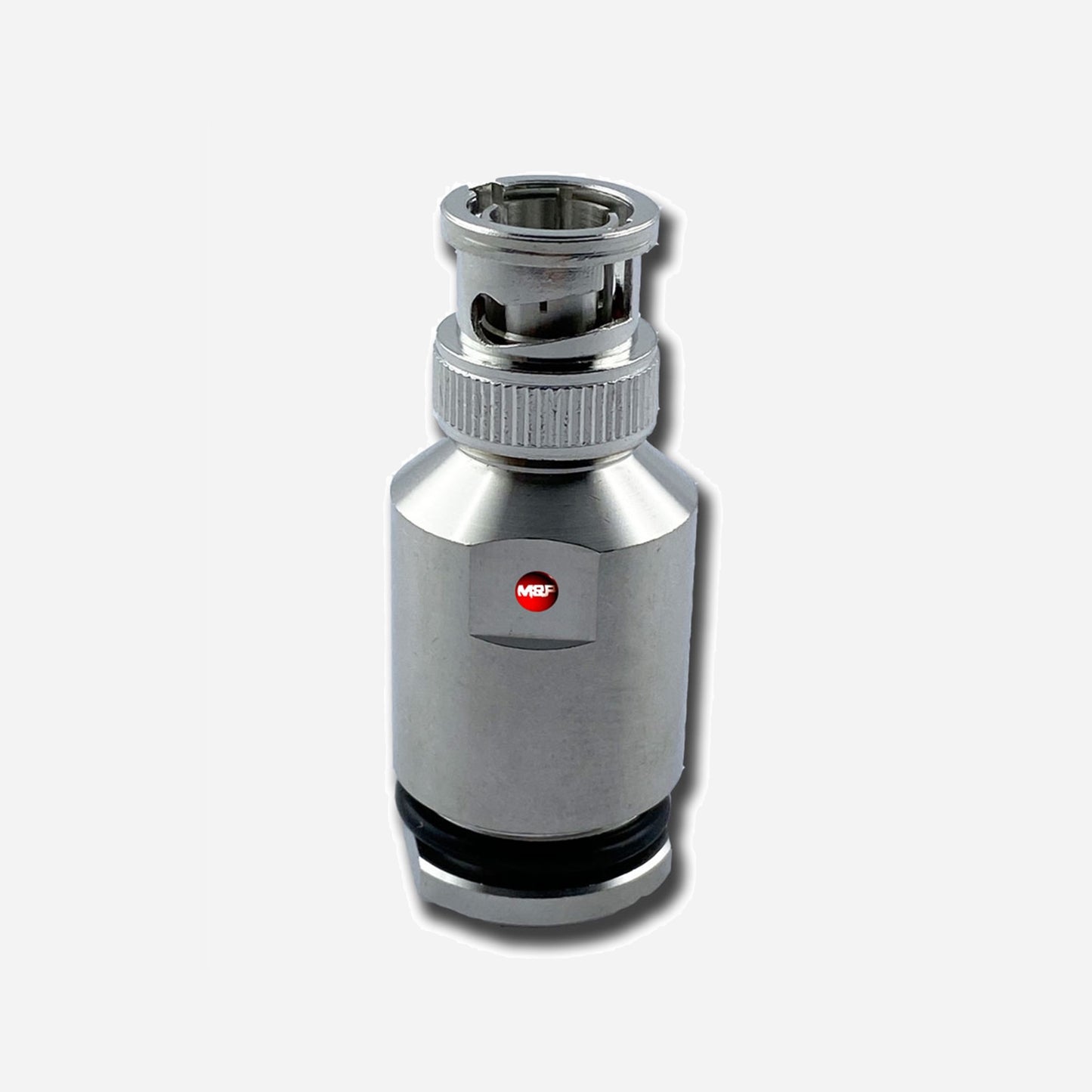

C.BNC.AC7M-S | BNC Male Connector (7mm | .300")

The C.BNC.AC7M-S is a high-quality BNC Male connector designed for 7mm (.300") coaxial cables, providing secure, low-loss RF connectivity for ham radio, broadcast, and professional RF applications. Its bayonet-style locking mechanism ensures quick, reliable, and vibration-resistant connections, making it ideal for high-frequency and test equipment setups.

Key Features:

• Optimized for 7mm (.300") Coaxial Cables: Compatible with RG-142, RG-223, LMR-240, and similar cables.
• Quick-Connect Bayonet Locking Mechanism: Provides secure and fast coupling for easy installation.
• High-Quality RF Performance: Ensures low insertion loss and stable impedance matching.
• Durable & Corrosion-Resistant: Precision-machined metal construction for indoor and outdoor applications.
• Versatile Applications: Ideal for ham radio transceivers, test equipment, signal analyzers, and RF test setups.

Technical Specifications:

• Connector Type: BNC Male
• Cable Compatibility: 7mm (.300") coaxial cables (e.g., RG-142, RG-223, LMR-240)
• Impedance: 50 Ohms
• Frequency Range: Up to 4 GHz
• Body Material: Precision-machined metal with corrosion-resistant plating
• Center Pin: Gold-plated for superior conductivity
• Installation: Solder-type termination for secure RF connections

Application Areas in Ham Radio & RF Testing:

• Antenna Feedlines: Provides minimal signal loss for high-performance RF transmission.
• Test & Measurement Equipment: Ideal for oscilloscopes, spectrum analyzers, and RF network analyzers.
• High-Frequency RF Systems: Suitable for amplifiers, filters, and communication setups.
• Custom RF Projects: Great for DIY RF builds, experimental setups, and impedance-matching networks.
