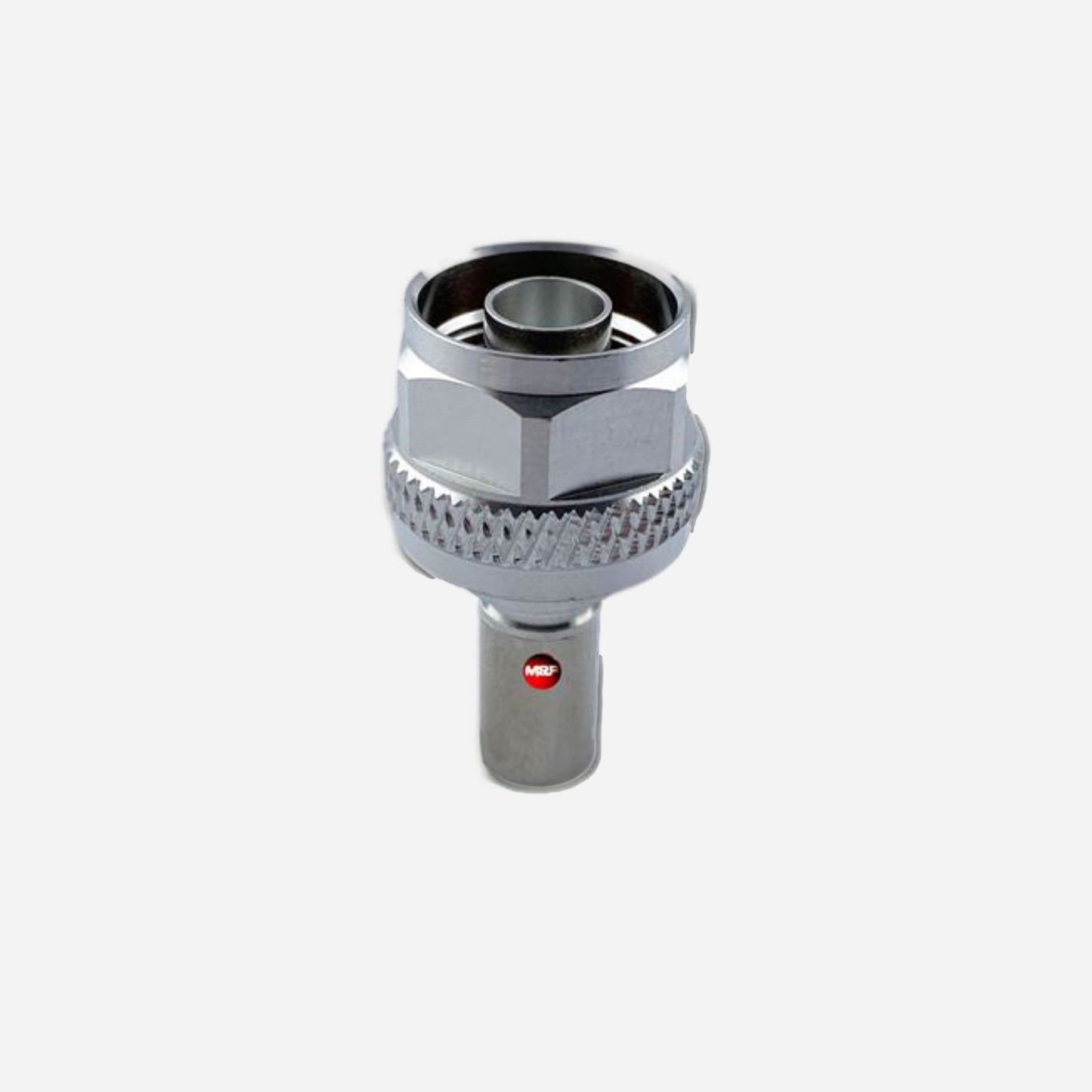

C.N.AC7M-CR | Crimp N Male Connector (7mm | .300'')

The C.N.AC7M-CR is a high-performance N Male crimp connector designed for 7mm (.300") coaxial cables, ensuring a secure, low-loss RF connection for ham radio, broadcast, and RF communication systems. Its crimp-style termination offers a strong mechanical bond, maintaining excellent impedance matching and high-frequency performance in both fixed and mobile installations.

Key Features:

• Optimized for 7mm (.300") Coaxial Cables: Compatible with cables such as RG-142, RG-223, and LMR-240.
• Low-Loss RF Performance: Ensures stable impedance matching with minimal insertion loss.
• Secure Crimp-Termination: Provides a strong and vibration-resistant connection for demanding RF setups.
• Durable & Corrosion-Resistant: Machined from high-quality materials for outdoor and high-power RF applications.
• Versatile Applications: Ideal for ham radio antennas, repeaters, amplifiers, and RF test setups.

Technical Specifications:

• Connector Type: N Male (Crimp)
• Cable Compatibility: 7mm (.300") coaxial cables (e.g., RG-142, RG-223, LMR-240)
• Impedance: 50 Ohms
• Frequency Range: Up to 6 GHz
• Body Material: Precision-machined metal with corrosion-resistant plating
• Center Pin: Gold-plated for superior conductivity
• Installation: Crimp termination for a secure, low-loss connection

Application Areas in Ham Radio:

• Antenna Feedlines: Ensures minimal signal loss in high-efficiency RF transmission.
• High-Power RF Systems: Perfect for amplifiers, tuners, and repeaters.
• Base Stations & Mobile Setups: Reliable connections for both permanent and portable installations.
• Custom RF Projects: Ideal for DIY RF builds, impedance-matching networks, and lab testing setups.
