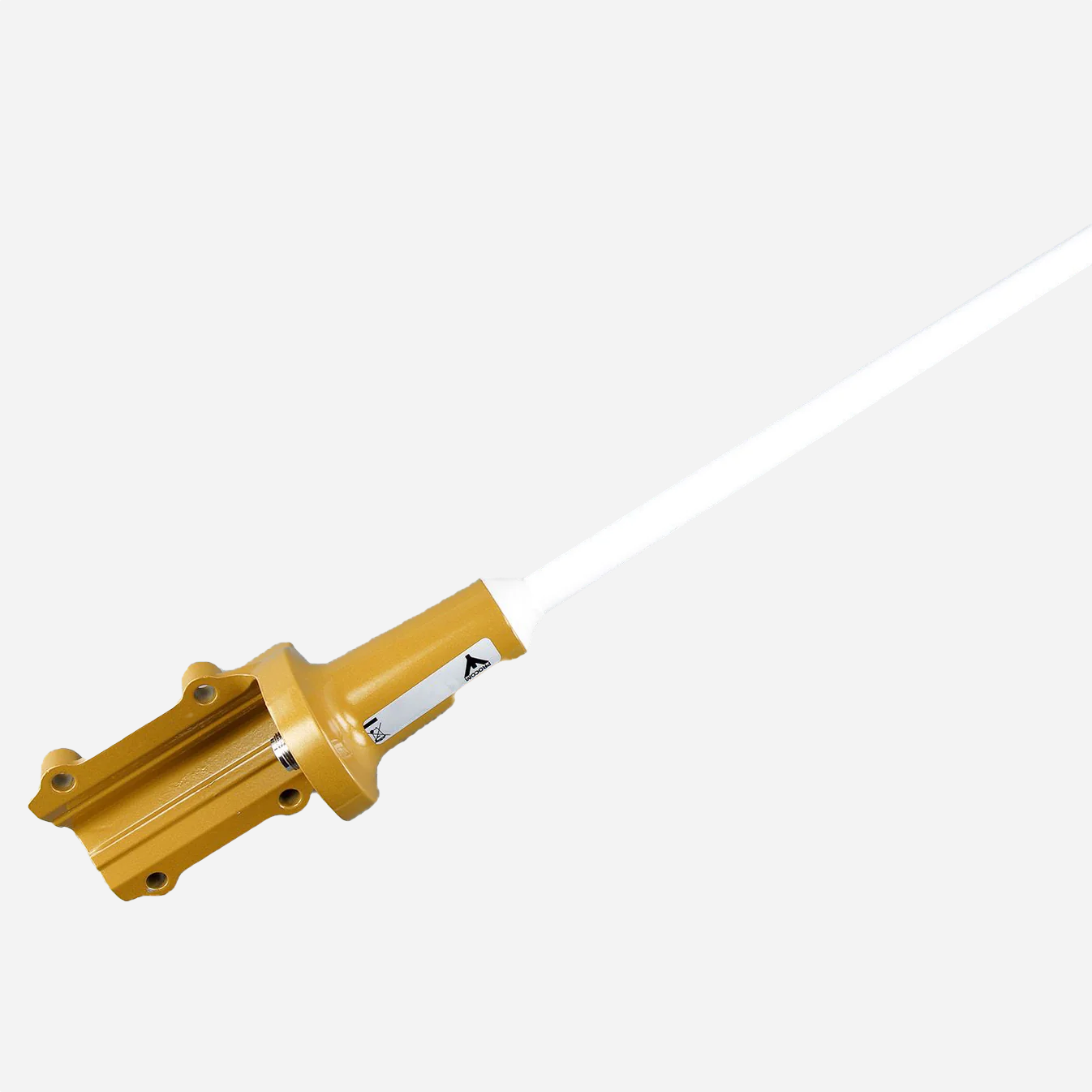

CXL 2-1LW/S | Amphenol Procom Universal, Unity-Gain Base Station Antenna for the 2M Band

CXL 2-1LW/S | Amphenol Procom Universal, Unity-Gain Base Station Antenna for the 2M Band

Regular price €269,23 EUR
Regular price Sale price €269,23 EUR
Sale Sold out
Tax included.

Description

  • This multi-purpose, omnidirectional, 0 dBd, rod-type base station and marine antenna covers the 2M band in three models with 10 MHz overlap and can be used in a wide variety of applications.
  • The broad-banded ½ λ dipole antenna element is sealed in a high-quality conical glass fibre tube with low wind-load, which will ensure undisturbed performance by corrosive environments.
  • Provided with the sturdy “LW” mast mount - a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • CXL 2-1LW/… is DC-grounded to substantially reduce noise caused by atmospherical discharges and consequently shows a DC-short across the coaxial cable.
  • The CXL 2-1LW/… is a vibration-proof, lightweight, slim-line, corrosion-resistant, modern style base station and marine antenna.
  • For extreme marine environments, it is recommended to use the CXL 150-1LW-SS-R/....

Specifications

Electrical

  • Model CXL 2-1LW/...
  • Frequency 138 - 175 MHz (See ordering codes for sub-models)
  • Antenna Type Coaxial dipole, broad-banded
  • Max. Input Power 150 W
  • Polarisation Vertical
  • 3 dB Beamwidth, E-Plane 80 °
  • 3 dB Beamwidth, H-Plane Omnidirectional
  • Impedance 50 Ω
  • Gain 0 dBd (2.2 dBi)
  • VSWR CXL 2-1LW/s : 138 - 156 MHz ≤ 1.5
  • Bandwidth 18 - 21 MHz (dep. on model)
  • Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
  • HCM Code(s) HCM000ND00, 040DE00

Mechanical

  • Connection(s) N(f)
  • Materials Shroud : Polyurethane-coated glass fibre
  • Mounting bracket : Seawater resistant aluminium, epoxy-coated
  • Clamps : Stainless steel
  • Colour White (RAL 9003)
  • Wind Area 0.0172 sq. m / 0.19 sq. ft
  • Wind Load 22 N (160 km/h)
  • Dia. At Top End 8 mm / 0.31 in.
  • Dia. At Bottom End 16 mm / 0.63 in.
  • Height Approx. 1300 mm / 51.18 in.
  • Weight Approx. 0.76 kg / 1.68 lb.
  • Mounting On 16 to 54 mm / 0.63 x 2.13 in. dia. mast tube

Environmental

  • Operating temperature range -30 °C to +70 °C
  • Survival Wind Speed 200 km/h
  • Ingress Protection IP66

Diagram and Mounting

Multi-Purpose Mounting Bracket

Typical Gain and SWR curves

Typical Radiation Pattern (E-Plane)

Typical Radiation Pattern (H-plane)
