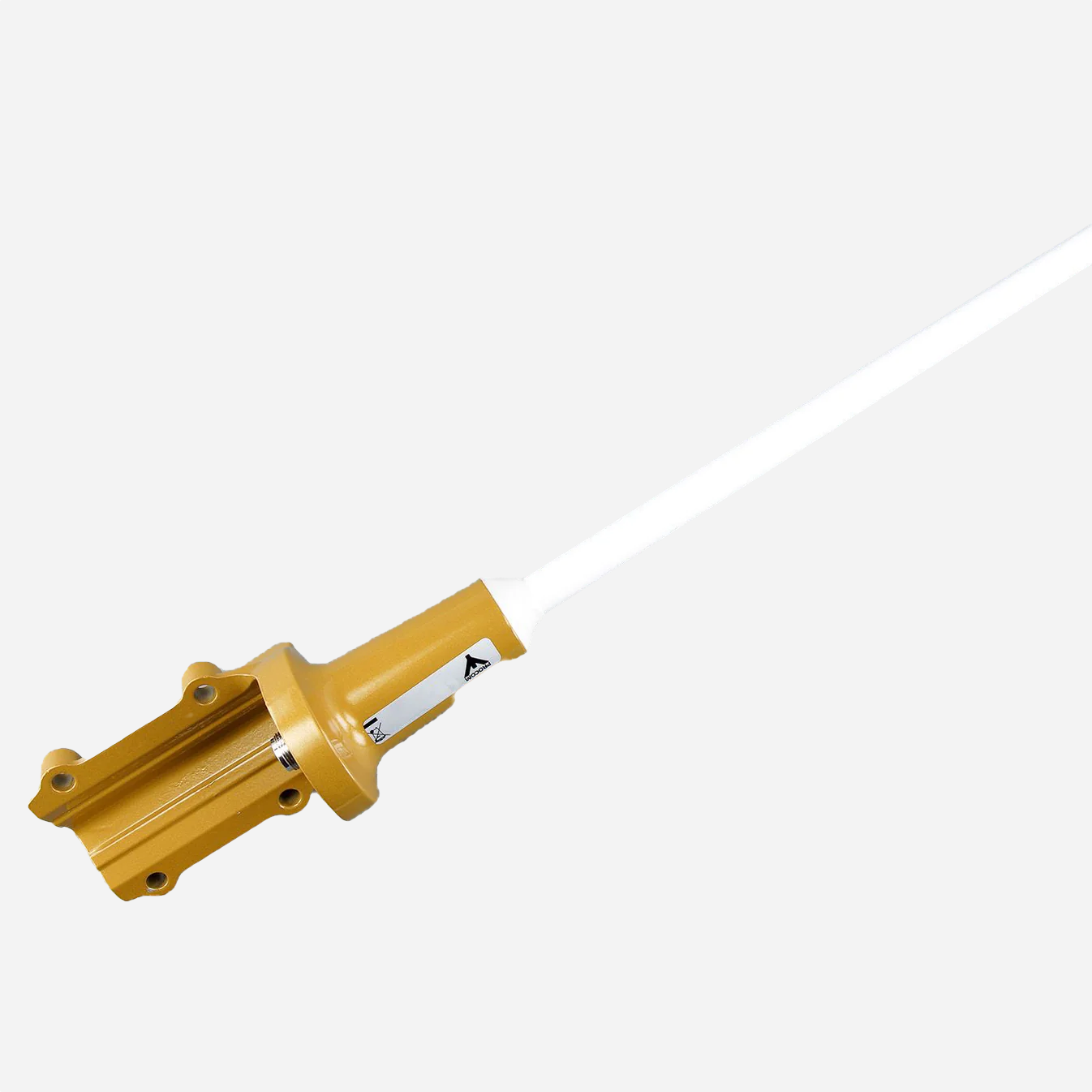

- CXL 2-3LW/… is a 3 dBd, vertically polarised, omnidirectional base station and marine antenna, which covers the VHF-band in 5 models.
- Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
- The accompanying U-bolts and fittings are made of stainless steel.
- To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
- The cable can be led either on the outside or along the inside of the mast tube.
- Large bandwidth with respect to both VSWR and gain.
- The phasing of the radiating elements is adjusted to yield maximum gain in the horizontal plane, with the level of the sidelobes reduced to a minimum.
- The carefully designed, broad-banded antenna element is sealed in a high-quality conical glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
- To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
- The CXL 2-3LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.
Specifications
Electrical
- Model CXL 2-3LW/...
- Frequency 139 - 175 MHz
- Antenna Type Broad-banded collinear antenna
- Max. Input Power 150 W
- Polarisation Vertical
- 3 dB Beamwidth, E-Plane 30 °
- 3 dB Beamwidth, H-Plane Omnidirectional
- Impedance 50 Ω
- Gain 3 dBd (5.2 dBi)
- VSWR < 1.5:1
- Bandwidth 9 MHz
- Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
- HCM Code(s) HCM000ND00, 015DE50
Mechanical
- Connection(s) N(f)
- Materials Shroud : Polyurethane-coated glass fibre
- Mounting bracket : Seawater resistant aluminium, epoxy-coated
- Clamps : Stainless steel
- Colour White (RAL 9003)
- Wind Area 0.0651 sq. m / 0.70 sq. ft
- Wind Load 82 N (160 km/h)
- Dia. At Top End 15 mm / 0.59 in.
- Dia. At Bottom End 23 mm / 0.91 in.
- Height Approx. 2.8 m / 110.24 in.
- Weight Approx. 1.4 kg / 3.09 lb.
- Mounting On 16 to 54 mm dia. mast tube
Environmental
- Operating temperature range -30 °C to +70 °C
- Survival Wind Speed 290 km/h
- Ingress Protection IP66
Diagram and Mounting
Multi-Purpose Mounting Bracket
Typical Radiation Pattern (E-Plane)
Typical Radiation Pattern (H-Plane)
