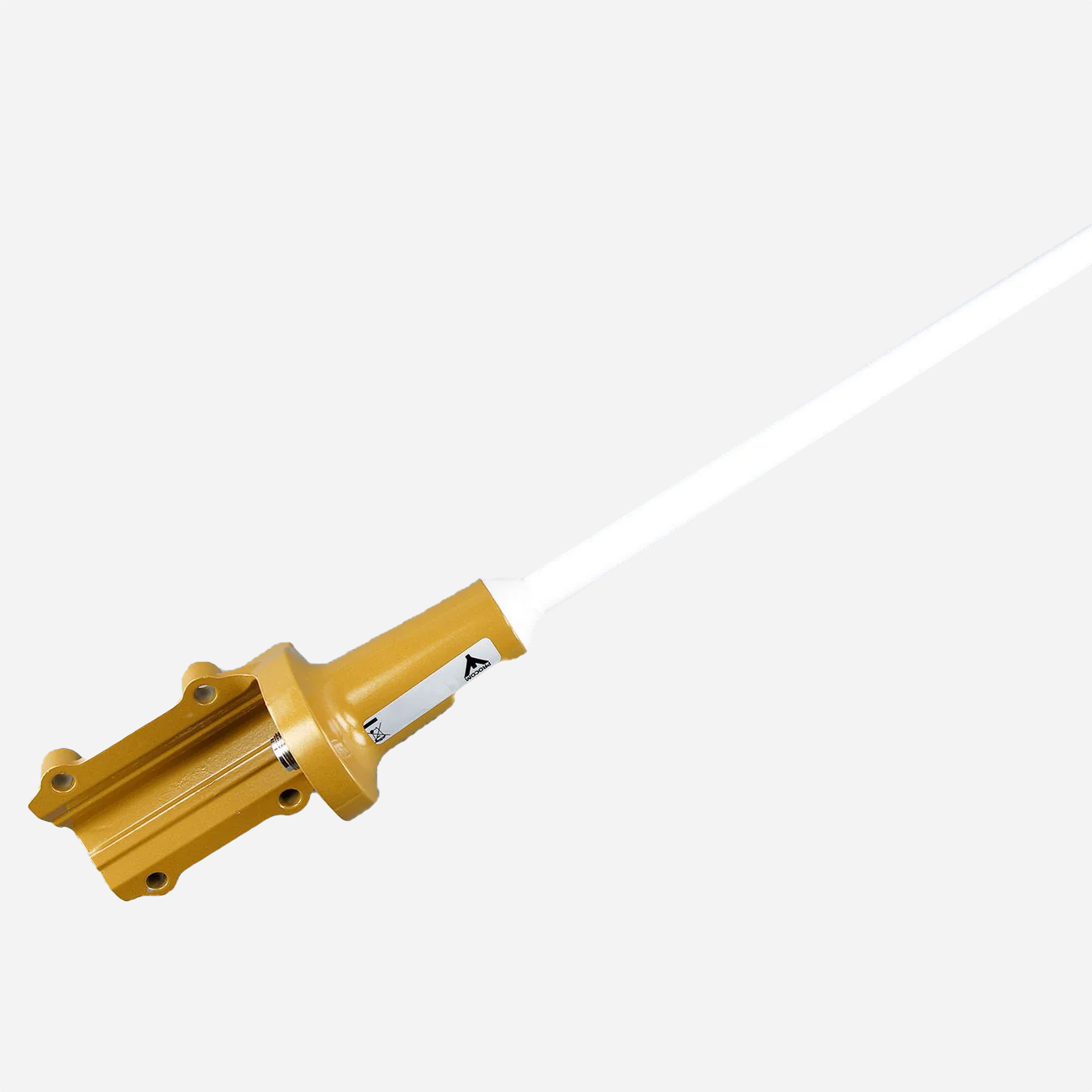

- CXL 2/70C is a dual-frequency base station antenna - two bands with only one antenna.
- This antenna makes it possible to:
- operate 160 and 450 MHz transceivers alternately on the same antenna
- operate two transceivers (160 and 450 MHz) at the same time on one antenna using a diplexer (type DIPX 225/330 - must be ordered separately).
- CXL 2/70C is designed for fixation on supporting tubes with outer diameter between 27 mm and 65 mm.
- The construction of the mount makes it possible to lead the cable either inside or along the outside of the mast tube.
- Atmospherical discharges are immediately led to ground as all metal parts are DC-grounded (consequently, the antenna shows a DC-short across the coaxial cable).
RF Guru
CXL 2/70C/146/435 | Amphenol Procom Dual-frequency, Base Station Antenna for the 2m and 70cm Bands
CXL 2/70C/146/435 | Amphenol Procom Dual-frequency, Base Station Antenna for the 2m and 70cm Bands
Regular price
€538,45 EUR
Regular price
Sale price
€538,45 EUR
Unit price
per
Tax included.
Couldn't load pickup availability
Description
Specifications
Electrical
- Model CXL 2/70C
- Frequency 142 - 150 / 425 - 445 MHz
- Antenna Type Coaxial, dual-band base station antenna
- Max. Input Power 100 W (for each band)
- Polarisation Vertical
- 3 dB Beamwidth, E-Plane 80 °
- 3 dB Beamwidth, H-Plane Omnidirectional
- Impedance 50 Ω
- Gain 0 dBd (2.2 dBi)
- Bandwidth 160 MHz : 8 MHz @ VSWR 2.0 450 MHz : 20 MHz @ VSWR 2.0
- Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
- HCM Code(s) HCM000ND00, 040DE00
- Connection(s) N(f)
- Materials Radome : Polyurethane-coated glass fibre
- Mounting bracket : Seawater resistant aluminium, epoxy-coated
- Colour White (RAL 9003)
- Wind Area 0.067 sq. m / 0.72 sq. ft.
- Wind Load 85 N (160 km/h)
- Height Approx. 1300 mm / 51.18 in.
- Weight Approx. 2.5 kg / 5.51 lb.
- Mounting On 27 - 65 mm / 1.02 - 2.56 in. dia. mast tube
Diagrams and Mounting
Typical VSWR curve for 2 m band :
Typical VSWR curve for 70 cm band :
Typical Radiation Pattern for 2 m band (E-Plane) :
Typical Radiation Pattern for 2 m band (H-Plane) :
Typical Radiation Pattern for 70 cm band (E-Plane) :
Typical Radiation Pattern for 70 cm band (H-Plane) :
Multi-Purpose Mounting Bracket
