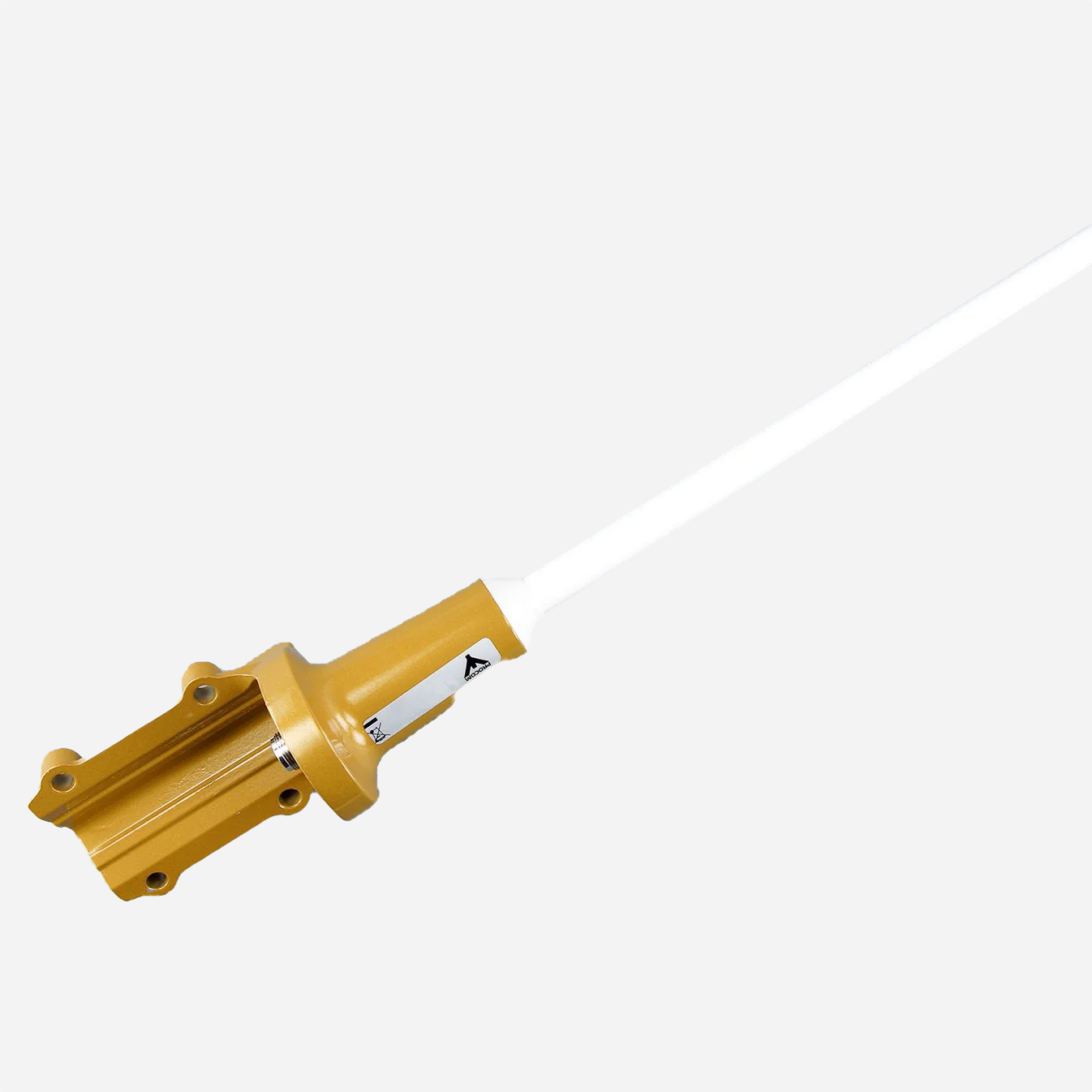

- CXL 70-3LW/… is a 3 dBd, vertically polarised, omnidirectional base station and marine antenna, which covers the UHF band in 4 models with up to 10 MHz overlap.
- The antenna meets the demand for a medium duty, cost-effective antenna to be chosen, when the exceptional mechanical capabilities of our extremely rugged heavy-duty model CXL 70-3C/… are not needed.
- The carefully designed radiating element is sealed in a high-quality, conical glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
- Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
- The accompanying U-bolts and fittings are made of stainless steel.
- To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
- The cable can be led either on the outside or along the inside of the mast tube.
- Large bandwidth with respect to both VSWR and gain.
- To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
- The CXL 70-3LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.
Specifications
Electrical
- Frequency 30 MHz wide frequency segments within 380 - 470 MHz.
- Antenna Type Collinear, broad-band
- Max. Input Power 150 W
- Polarisation Vertical
- Pattern Type Omnidirectional
- 3 dB Beamwidth, E-Plane 30 °
- Impedance 50 Ω
- Gain 3 dBd (5.2 dBi)
- VSWR < 1.5:1
- Bandwidth 30 MHz
- Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
- HCM Code(s) HCM000ND00, 015DE50
Mechanical
- Connection N(f)
- Materials Shroud : Polyurethane-coated glass fibre
- Mounting bracket : Seawater resistant aluminium, epoxy-coated
- Clamps : Stainless steel
- Colour White (RAL 9003)
- Wind Area 0.026 sq. m / 0.28 sq. ft
- Wind Load 33 N (160 km/h)
- Dia. At Top End 16 mm / 0.63 in.
- Dia. At Bottom End 23 mm / 0.91 in.
- Height Approx. 1510 mm / 59.45 in.
- Weight Approx. 1.3 kg / 2.87 lb.
- Mounting On 16 to 54 mm / 0.63 to 2.13 in. dia. mast tube.
Environmental
- Operating temperature range -35 °C to +70 °C
- Survival Wind Speed 200 km/h
- Ingress Protection IP66
Diagram and Mounting
Typical Gain and VSWR curves
Typical Gain and VSWR curves
Typical radiation pattern (E-Plane)
Typical radiation pattern (H-Plane)
Multi-purpose mounting bracket
