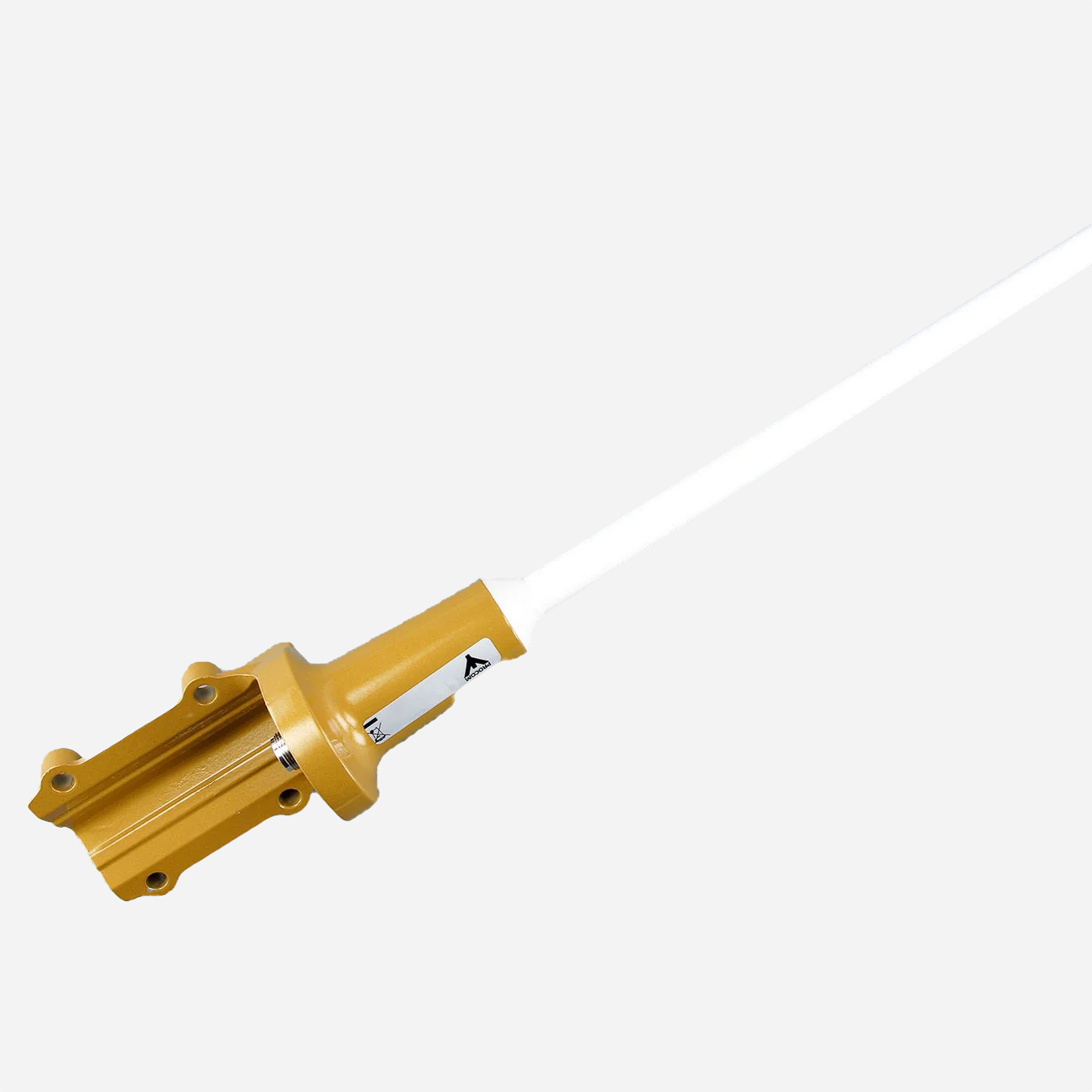

CXL 900-6LW-NB/868 | Amphenol Procom Lightweight, 7.55 dBi, Omnidirectional Base Station Antenna for 868 ISM Band

CXL 900-6LW-NB/868 | Amphenol Procom Lightweight, 7.55 dBi, Omnidirectional Base Station Antenna for 868 ISM Band

€393,25 EUR
€393,25 EUR
Sale Sold out
Tax included.

Description

  • 6 dBd, vertically polarized, omnidirectional base station and marine antenna, covering the 868 MHz ISM band.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and Rx frequencies.
  • The carefully designed radiating element is sealed in a high-quality, glass fibre tube with low wind-load, ensuring undisturbed performance in all climates.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 900-6LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

Specifications

Electrical

  • Frequency 868 Mhz ISM
  • Antenna Type Collinear, broad-band
  • Max. Input Power 150 W
  • Polarisation Vertical
  • Pattern Type Omnidirectional
  • 3 dB Beamwidth, E-Plane 16 °
  • 3 dB Beamwidth, H-Plane Omnidirectional
  • Impedance 50 Ω
  • Gain 5.4 dBd (7.6 dBi)
  • VSWR < 1.5:1
  • Bandwidth 70 - 90 MHz
  • Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
  • HCM Code(s) HCM000ND00, 008DE22

Mechanical

  • Connection N(f)
  • Materials Shroud: Polyurethane-coated glass fibre
  • Mounting bracket: Seawater resistant aluminium, epoxy-coated
  • Clamps: Stainless steel
  • Colour White (RAL 9003)
  • Wind Area 0.030 sq. m / 0.32 sq. ft
  • Wind Load 43 N (160 km/h)
  • Dia. At Top End 23 mm / 0.91 in.
  • Dia. At Bottom End 23 mm / 0.91 in.
  • Height 1260 - 1310 mm / 49.61 - 51.57 in.
  • Weight Approx. 1.0 kg / 3.09 lb.
  • Mounting On 16 - 54 mm / 0.63 - 2.13 in. dia. mast tube

Environmental

  • Operating temperature range -30 °C to +70 °C
  • Survival Wind Speed 200 km/h
  • Ingress Protection IP66
