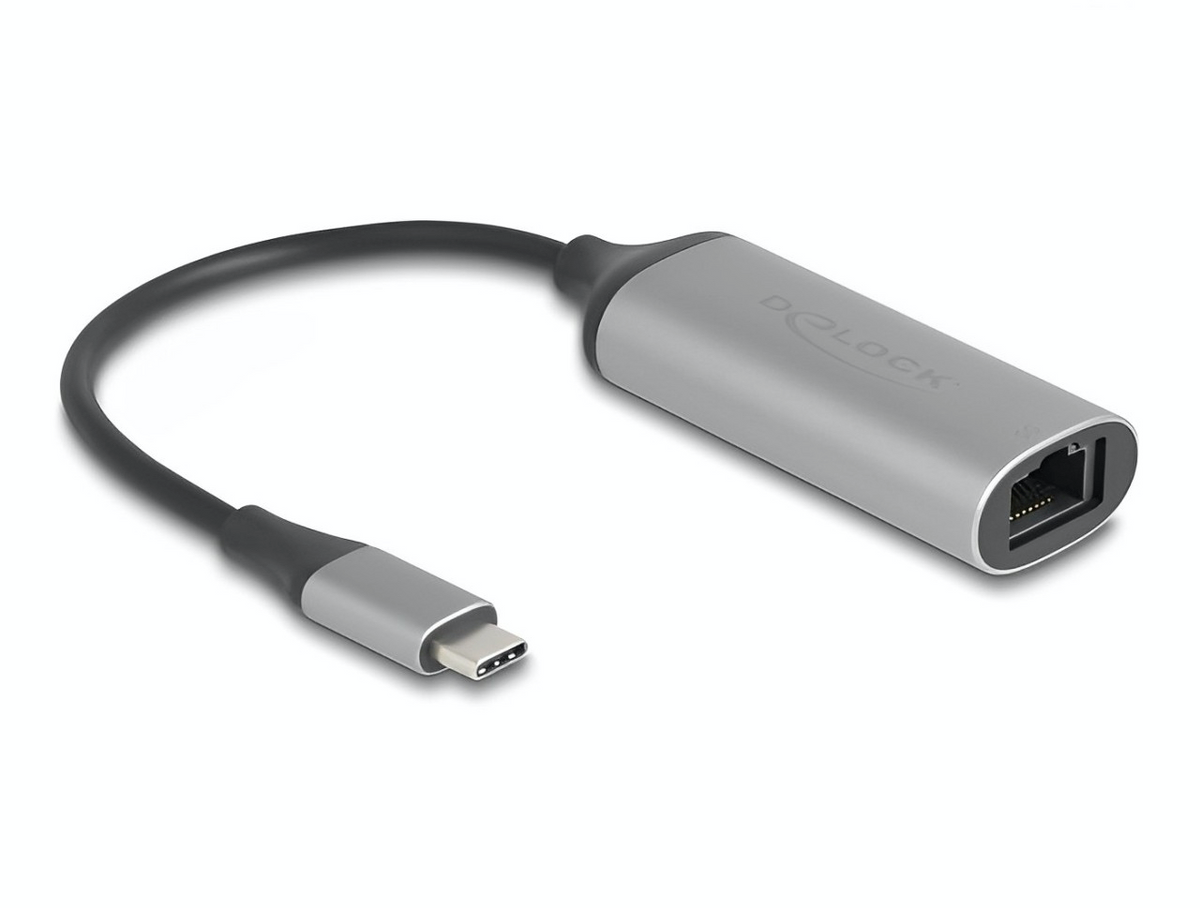

Delock 81570 USB-C to 5 Gigabit Ethernet Adapter
Delock 81570 USB-C to 5 Gigabit Ethernet Adapter
Couldn't load pickup availability
5 Gigabit Ethernet from a USB-C port
Connect a computer with a suitable USB-C port to a wired Ethernet network at negotiated speeds up to 5 Gbps. The compact, USB-powered Delock 81570 uses a Realtek RTL8157 controller and has one RJ45 socket.
Supports 10/100/1000 Mb/s and NBASE-T 2.5/5 Gb/s. The actual link rate depends on the switch or peer, cabling and host.
The adapter connects to a USB 10 Gbps Type-C port and is powered by the USB bus. No separate power supply is included or required.
Technical details
| Manufacturer item | Delock 81570 · EAN 4043619815708 |
|---|---|
| Host connection | USB 10 Gbps Type-C male |
| Network connection | RJ45 female, up to 5 Gigabit Ethernet |
| Controller | Realtek RTL8157 |
| Network features | Auto MDI-X, IEEE 802.1Q VLAN, full-duplex IEEE 802.3x flow control and up to 16K jumbo frames |
| Indicators | Link and activity LEDs |
| Housing | Anthracite aluminium, approximately 60 × 27 × 16 mm |
| Attached cable | Approximately 15 cm, excluding connectors |
Before you connect
Delock lists Windows 10 or 11, macOS 14.5 or newer, and Linux kernel 6.5 or newer. The computer needs a free USB Type-C or Thunderbolt 3 port. A 5 Gb/s Ethernet link also needs a 5 GbE-capable network port at the other end; the adapter cannot increase the speed of a 1 GbE switch.
The retail box contains the adapter and user manual. For current drivers and manufacturer documentation, see Delock item 81570.
Follow RF.Guru updates
Get new product notes and engineering articles by email.
Join the notification list →Quick answers
- Will it work with a 1 GbE network? Yes. It negotiates the supported link speed with the connected equipment.
- Does it need external power? No. It is powered from the host USB port.
- Does a USB-C connector alone guarantee 5 Gb/s? No. Use a suitable USB 10 Gbps host port, 5 GbE network equipment and appropriate cabling for a 5 Gb/s link.
