Rugged Galvanized Ballast Frame for 50x50 cm Tiles and a Ø60.3 mm pole (1-2M)

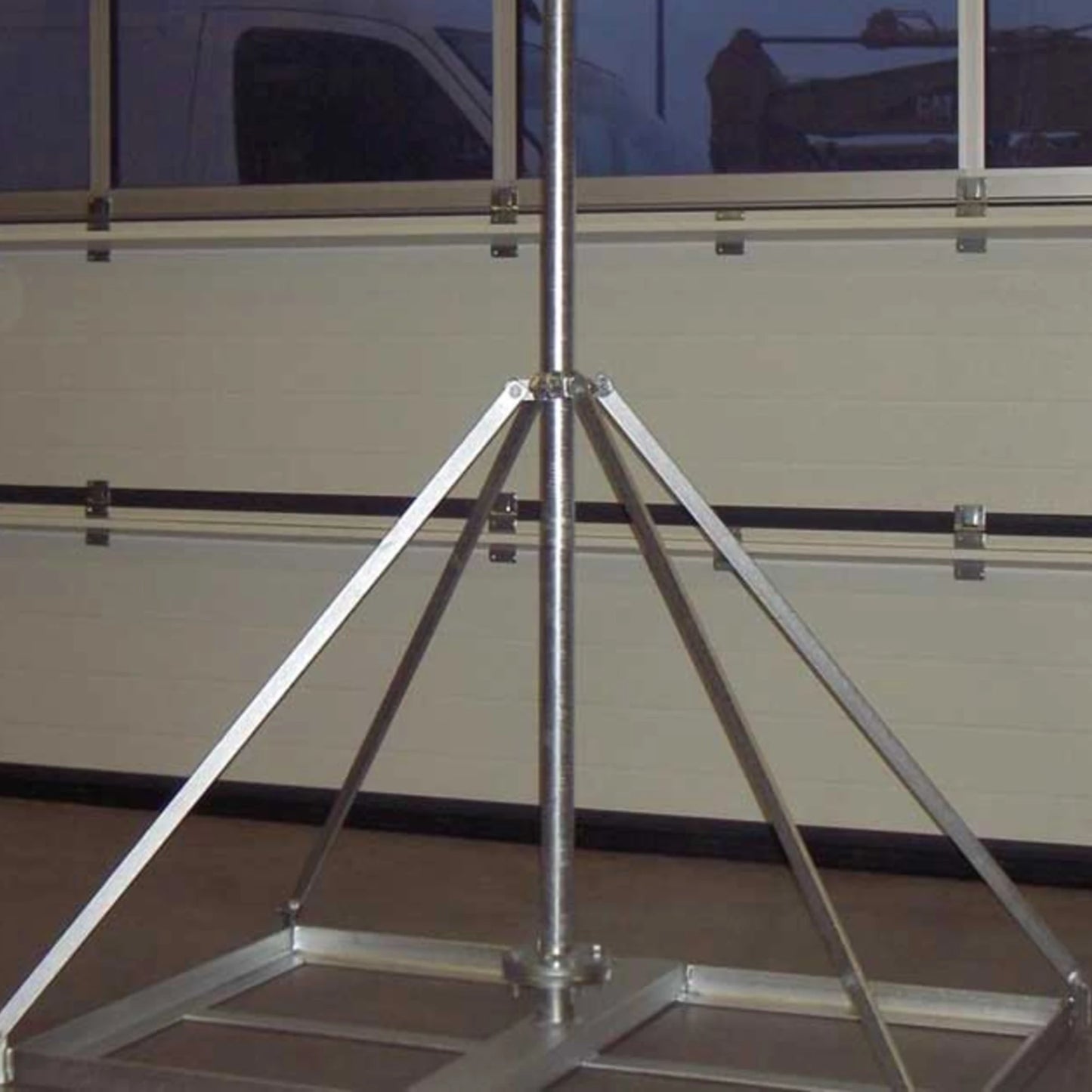

Built for durability in harsh environments, the BFD4-50/50 is a heavy-duty, industrial-grade galvanized steel ballast frame designed to mount a 60.3 mm galvanized pole. The frame supports 4 to 8 concrete tiles of 50x50 cm (maximum thickness 12 mm), providing a secure and weather-resistant base for antennas, solar supports, or temporary masts.

• Tile Support: 4 to 8 standard 50x50 cm concrete tiles (max. 12 mm thick)
• Frame dimensions:
  • 1100x1200mm
• Estimated Ballast Weight:
  • 4 tiles ≈ 100 kg
  • 8 tiles ≈ 200 kg
• Material: S235 thermisch gegalvaniseerd staal
  • Tile base thickness: 5 mm and 10 mm sections
  • Diagonal struts: 4 × ~1 meter stabilizing arms
• Pole Compatibility: Ø60.3 mm galvanized mast (1.1M and 2M version)
• Use Case: Ideal for flat rooftops, temporary installations, or non-penetrating setups in windy or industrial zones

Built to last!
