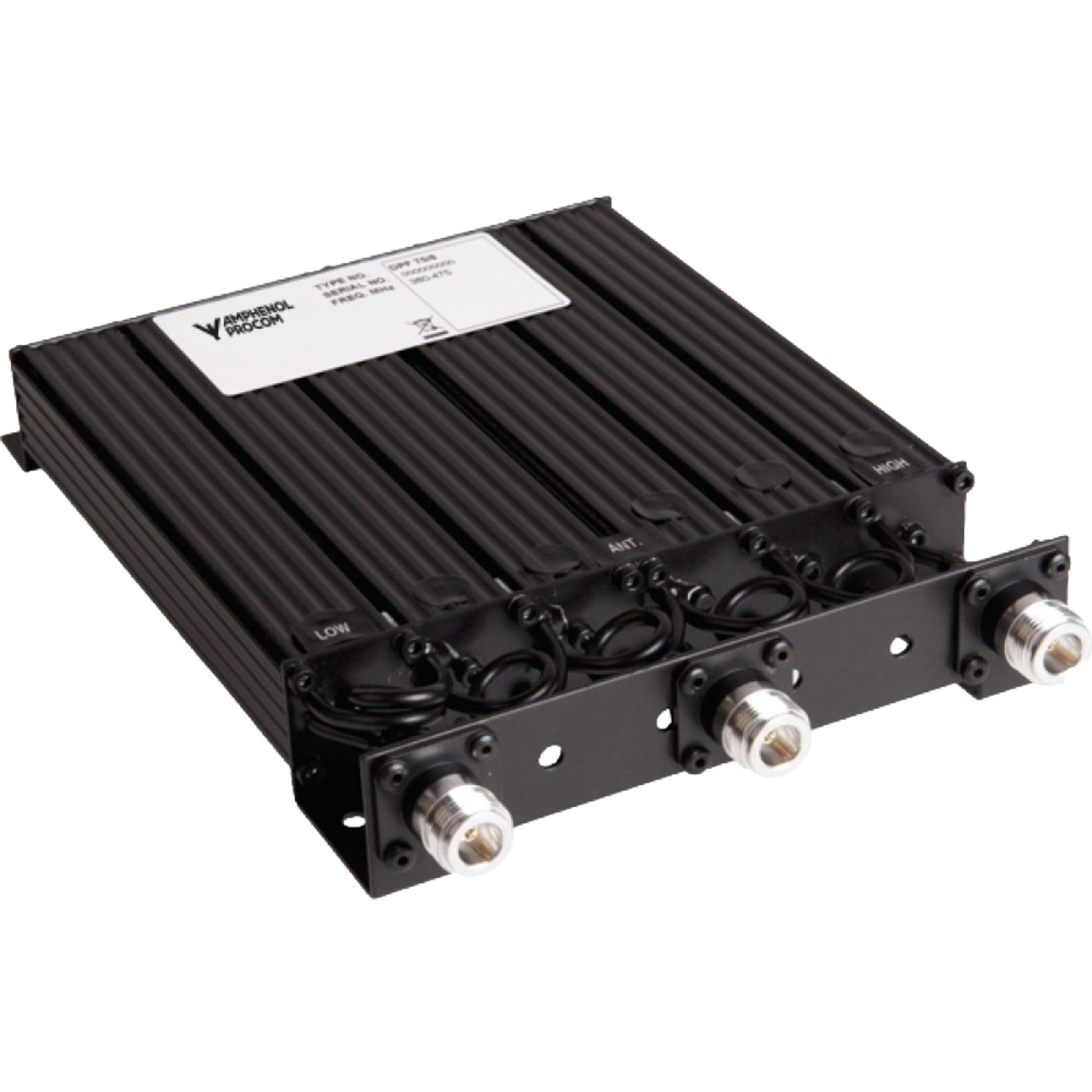

DPF-706-57-N | Amphenol Procom 70CM 6 Cavity Duplex Filter 50W

Amphenol Procom 70CM 6 Cavity Duplex Filter 50W

• The DPF-706-57-N is primarily intended for equipment where the Tx and Rx operate on single frequencies, but it can also, however with slightly reduced data, be used where the Tx and Rx operate on multi channels, i.e. within a certain port bandwidth. In the last case, factory-tuning is recommended.
• The filter uses full-length ¼ λ cavities in a compact extruded aluminium housing. The chassis is made of passivated steel, and teflon insulation has been applied in the coaxial cables and in the connectors.
• DPF-706-57-N is coated with black vinyl to prevent corrosion.

Datasheet DPF-706-57-NDatasheet.pdf
