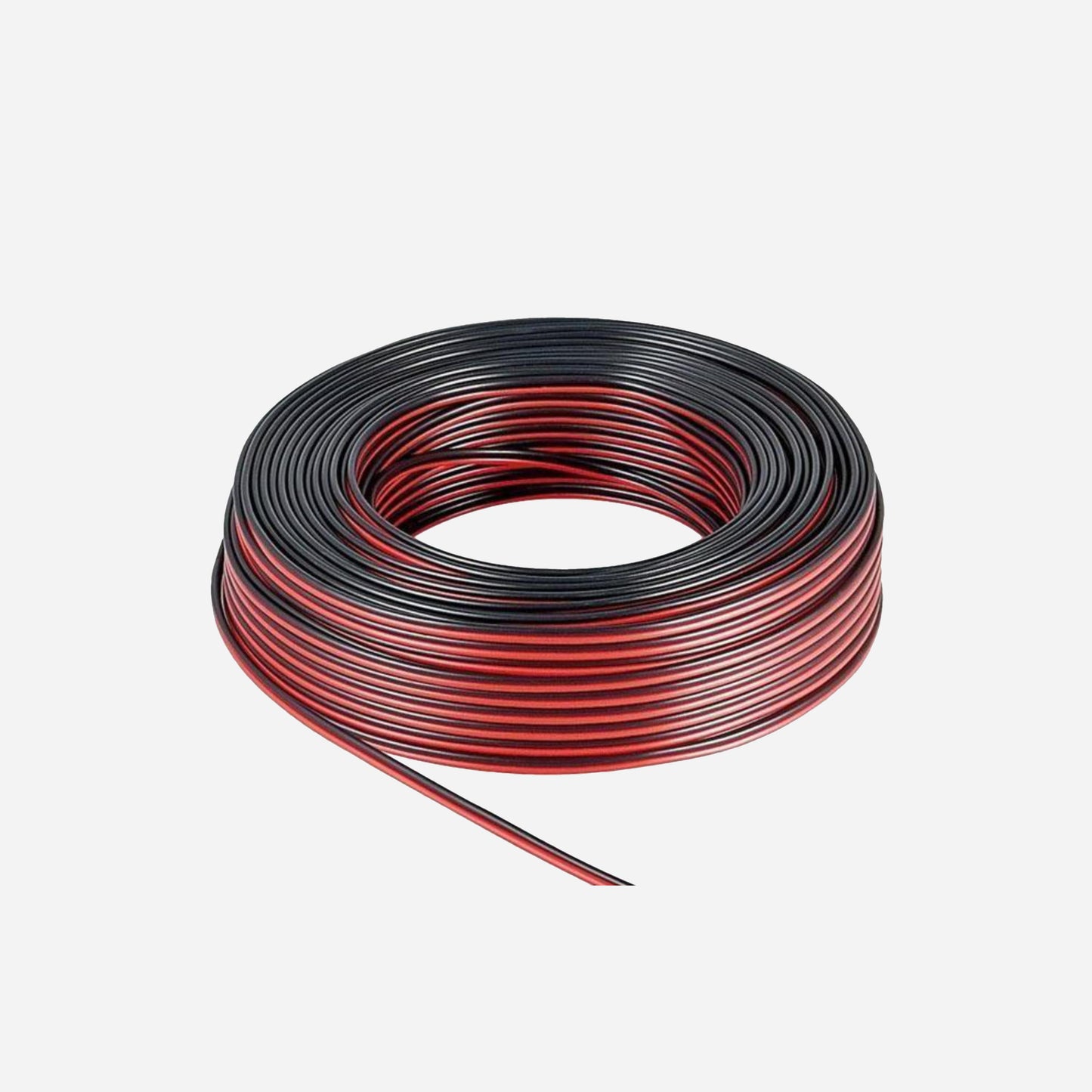

Flat CCA Cable Red/Black 2 x 1.0 10A

Flat CCA Cable Red/Black 2 x 1.0 10A

€0,97 EUR
€0,97 EUR
Sale Sold out
Tax included.

Flat CCA Cable — Red/Black 2 × 1.0 mm² (10 A)

Technical Overview: Flat twin-core CCA (Copper-Clad Aluminum) cable for 12–14.8 V DC systems. The 2 × 1.0 mm² conductors with a red/black jacket make neat, polarity-safe runs for hotspots, small rigs, and embedded gear up to 10 A (short runs, correctly fused).

Key Features

  • Flat twin-core: Clear red/black polarity, easy routing in tight spaces
  • 2 × 1.0 mm²: Sized for low-current 13.8 V accessories
  • CCA conductors: Lightweight, cost-effective for short cable runs
  • 10 A rating: Suitable for small loads when protected by proper fusing
  • Connector friendly: Works with PowerPole, ring/fork terminals, barrier strips

For longer runs or higher continuous currents, OFC (oxygen-free copper) offers lower voltage drop and better thermal margin.

Technical Specifications

  • Conductor: Copper-Clad Aluminum (CCA)
  • Configuration: Flat 2-core (red/black)
  • Cross-section: 2 × 1.0 mm²
  • Nominal current: up to 10 A (application- and length-dependent)
  • Jacket: Flexible PVC
  • Voltage systems: 12–14.8 V DC (13.8 V ham radio standard)

Application Notes

  • Keep runs short: CCA has higher resistance than OFC; minimize length to reduce voltage drop
  • Fuse at the source: Inline fuse sized to the load and cable gauge at the supply end
  • Strain relief: Use crimp + heat-shrink or booted connectors for vibration-prone installs

Ordering & Pricing

Price per meter. We supply a continuous length whenever possible.

Full coil/spool: Choose quantity 100 to receive a 100 m spool.
