MPX70-6H-57-N | Amphenol Procom 70CM 6 Cavity Duplex Filter 25W

Amphenol Procom 70CM 6 Cavity Duplex Filter 25W

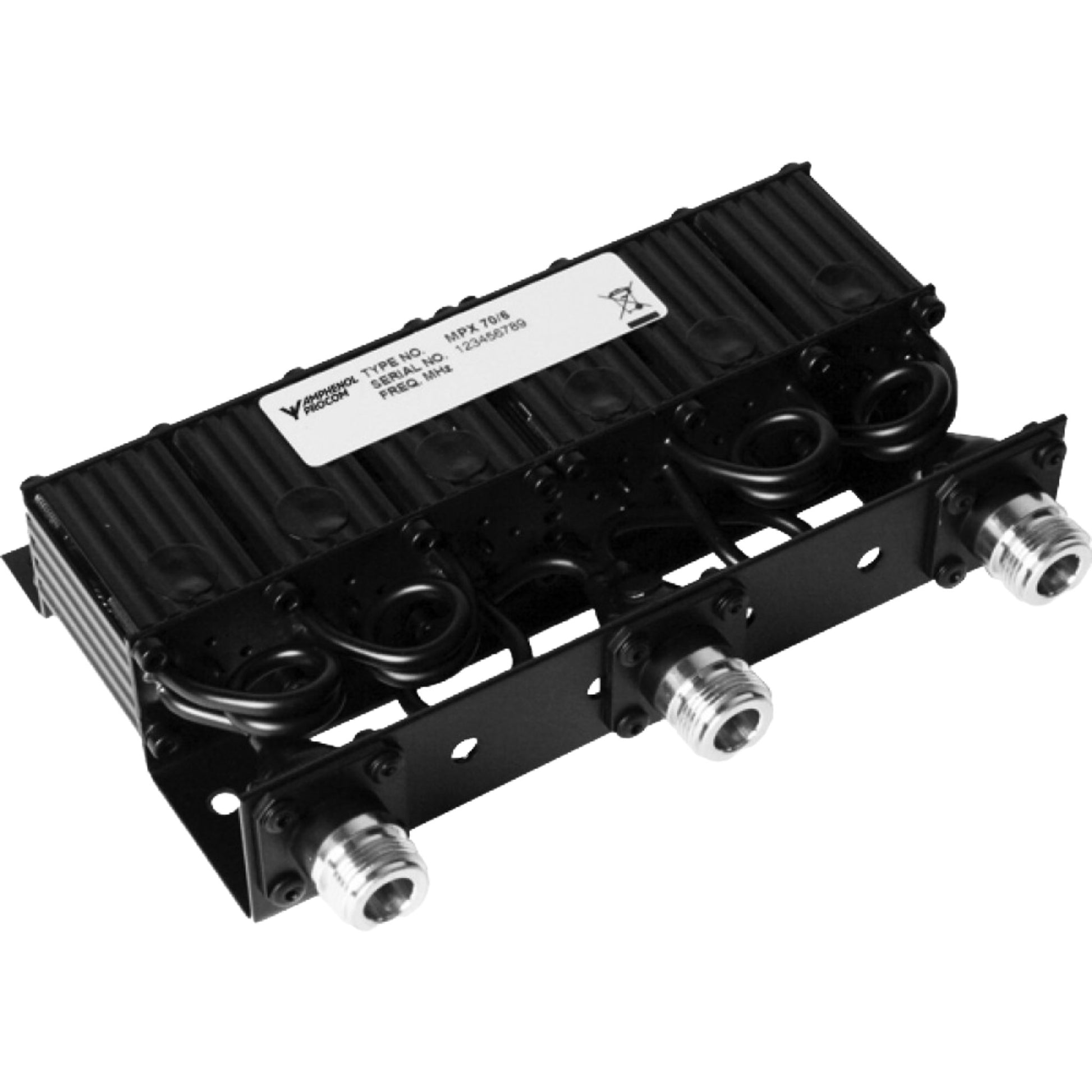

• The MPX70-6H-57-N is a 6-resonator miniaturized duplex filter for duplex radiotelephones. This compact “miniplexer” meets the demand for a modern, space saving, high performance filter type.
• The duplexer is delivered in a high band version: MPX 70/6 H, which is tunable within the 430 - 470 MHz range.
• The MPX 70/6… models are primarily intended for equipment, where the Tx and Rx operate on single frequencies, but they can also, however with slightly reduced data, be used where the Tx and Rx operate on several channels, i.e. within a certain port bandwidth. In the last case, factory tuning is recommended.
• The miniaturization of the filter has been realized by using special high-Q, temperature compensated helical resonators.
• The housing is made of extruded aluminium, the chassis of steel, and teflon insulation has been applied in the rigid coaxial cables and in the connectors.
• MPX 70/6... is coated with black vinyl to prevent corrosion.

Datasheet MPX70-6H-57-N-Datasheet.pdf
