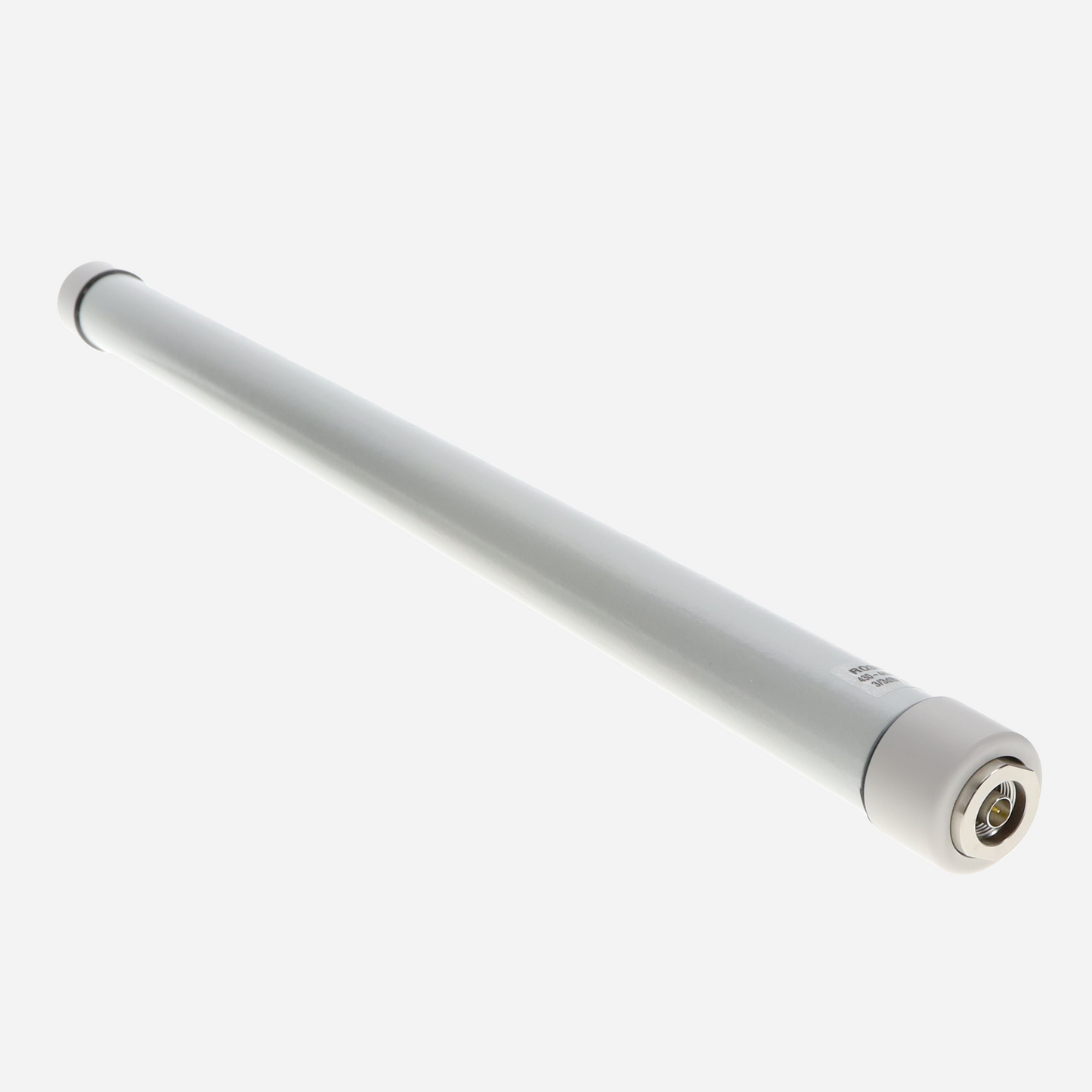

RO3ISMNM Larsen Outdoor Rated, Omni Directional Antenna, 430 - 440 MHz & 860 - 930 MHz 2dBi 2.5dBi

RO3ISMNM Larsen Outdoor Rated, Omni Directional Antenna, 430 - 440 MHz & 860 - 930 MHz 2dBi 2.5dBi

Regular price €72,60 EUR
Regular price Sale price €72,60 EUR
Sale Sold out
Tax included.

This omni directional antenna operates in the frequency ranges of 430-440 MHz and 860-930 MHz. The antenna is ideal for communications requiring omni directional radiation patterns in an outdoor operating environment. The RO3ISMNM is suitable to be mounted with full exposure to wind, rain, snow, high temperatures and sun exposure. The antenna is also DC grounded for lightning protection. Measuring 21” and featuring a Type N Male connector allows the antenna to be deployed via pole mounts or directly to radio chassis. Stable radiation patterns and gain across all frequencies make install and network performance consistent through all supported radio channels.

Specifications:

  • Supports ISM and unlicensed bands across North America and EU
  • IP67
  • Stable gain and radiation patterns across all operating bands
  • RoHS Compliant
  • 430-440 MHz
  • 860-930 MHz
  • Nominal Impedence (Ω) 50
  • VSWR Freq 1 2:1
  • VSWR Freq 2 2:1
  • Gain (dBi) Freq 1 2
  • Gain (dBi) Freq 2 2.5
  • Pattern Data Horizontal 360°
  • Pattern Data Vertical Freq 1 62°
  • Pattern Data Vertical FREQ 2 45°
  • Polarization Vertical
  • Power Rating (W) 20 Watts

Datasheet
