Mastrant Guying set - small masts (13 m)

The Guying Set contains material suitable for one direction of mast guying - so in practice you need 3 or 4 sets for each level (height) of guying. When deciding how many levels to choose, always follow the mast manufacturer's recommendations. It is not possible to give a general rule of thumb, but it is true that two or more levels of guying will substantially reduce the risk of accidental buckling and subsequent destruction of the mast.

The set is terminated at one end and includes:

• Rope 5 mm (3/16") terminated with a thimble
• Shackle (used to connect the rope with thimble to the mast)
• Chain coupler (used to connect the rope to the ground anchor - pin, anchor eye, ...)
• Tensioner LineLok (used to set the necessary length and tension of the rope)
• Duplex clip (used to additionally secure the rope after tensioning)

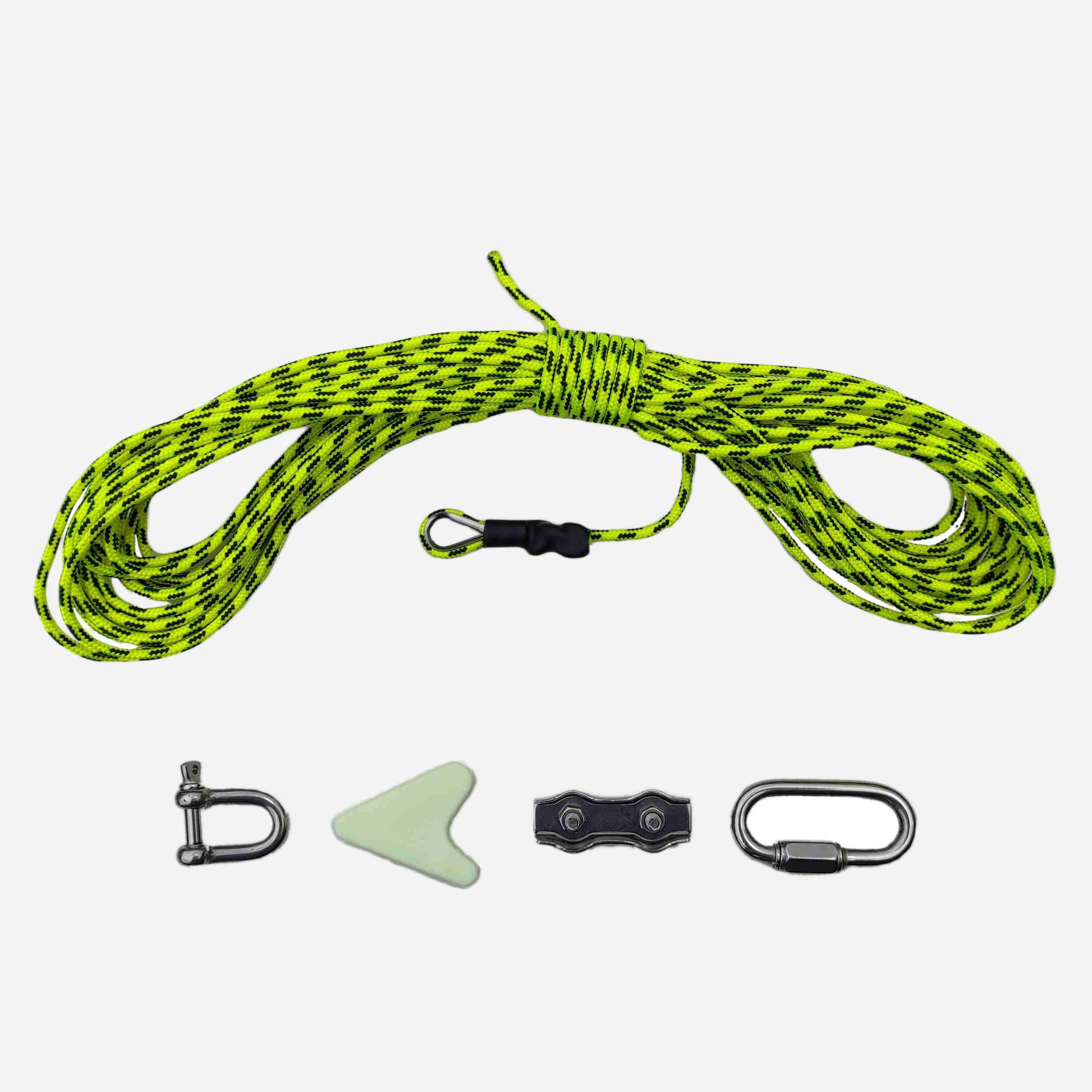

The individual components are shown in the pictures.

Content of the set and specifications:

• Size of the rope: 5 mm (3/16")
• Working Load Limit of the rope: 162 kg (360 lb.)
• Length of the rope: 30 m (99 ft.)
• Size of the connecting elements: 6 mm (1/4")
• Suitable for guying heights up to: 13 m (45 ft.)
