Schaffner 60A up to 520 V ac 50/60Hz, Chassis Mount EMC Filter, Terminal Block 2 Phase
Schaffner 60A up to 520 V ac 50/60Hz, Chassis Mount EMC Filter, Terminal Block 2 Phase
Regular price
€199,00 EUR
Regular price
Sale price
€199,00 EUR
Unit price
/
per
Tax included.
Couldn't load pickup availability

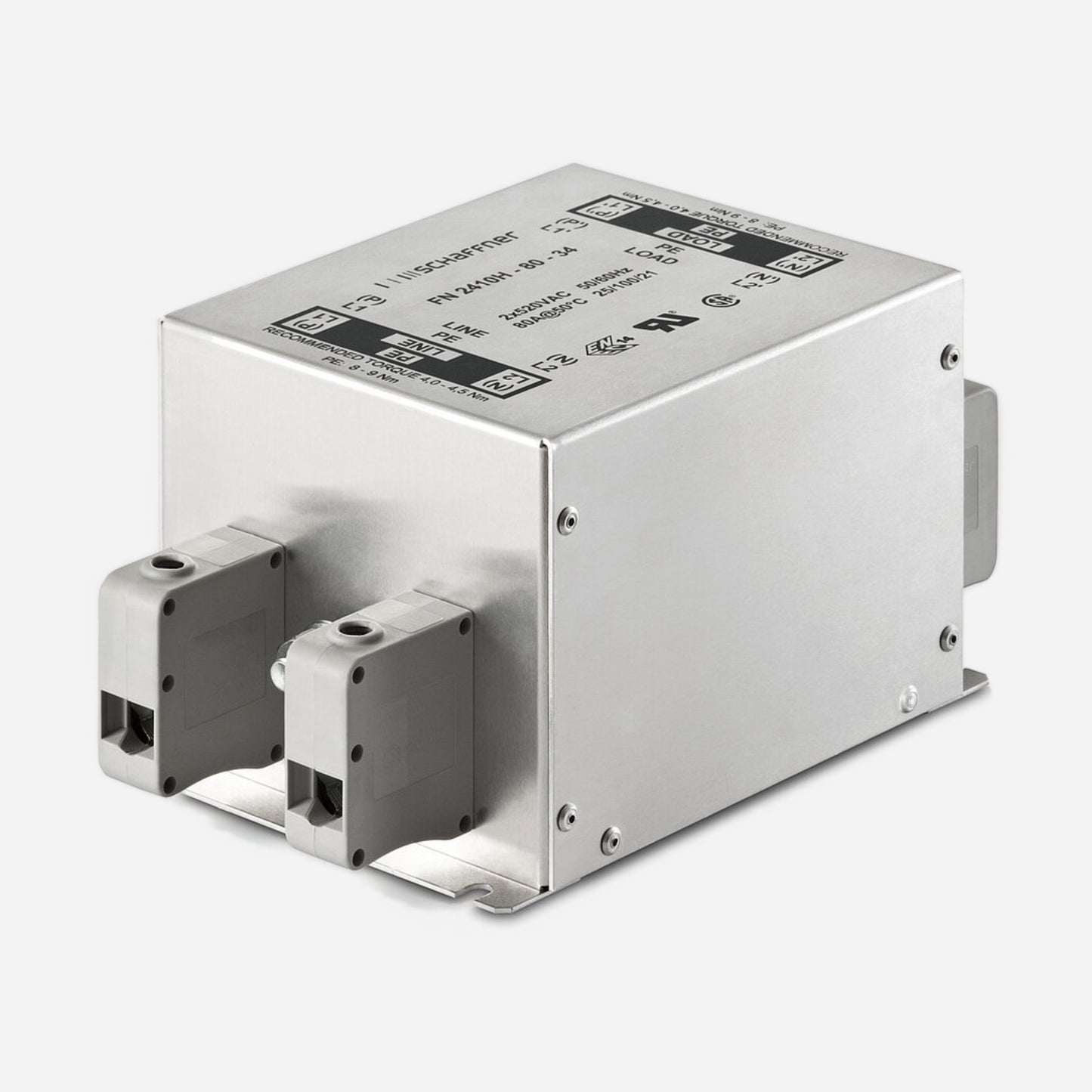

Schaffner FN2410H-60-34 — Standard Performance Single-Phase Filters
The FN2410H-60-34 (chassis-mount) EMC filter iw designed for industrial electronics and high-interference environments. Rated 60A, they provide outstanding conducted attenuation across a broad frequency range, ensuring compliance with EMC standards and reliable operation of sensitive equipment.
Ham Shack Use: Starting from 60 A models, these filters deliver much higher common-mode and differential-mode attenuation than lower-rated versions. This makes them particularly effective for HF amateur radio stations, where suppressing mains-borne noise is critical.
Key Features
- Rated currents: 60 A (FN2410H-60-34)
- Operating voltage up to 2 × 520 VAC
- Exceptional CM/DM attenuation
- Industrial-grade terminal blocks for maximum electrical safety
- Compliant with UL, CSA, IEC/EN 60939
Technical Specifications
| Electrical | |
|---|---|
| Max. Continuous Voltage | up to 2 × 520 / 300 VAC |
| Nominal Operating Voltage | 480 VAC |
| Operating Frequency | DC – 400 Hz |
| Rated Current | 60 A @ 50 °C |
| Leakage Current | ~2.6 mA @ 250 VAC / 50 Hz |
| Overload Capability | 4 × rated current at switch-on, 1.5 × for 1 min/h |
| Mechanical | |
|---|---|
| Mounting | FN2410: chassis |
| Protection Category | IP20 |
| Flammability | UL 94 V-0 |
| Temperature Range | −25 °C to +100 °C |
Why Choose the 60 A Version?
- Enhanced attenuation — stronger suppression of CM and DM noise, ideal for HF bands
- Stable performance — even under full load and in noisy environments
- Ham radio proven — excellent choice for isolating your shack from household mains
Applications
- Small to medium-sized machines and industrial equipment
- High-end single-phase power supplies
- Single-phase inverters, converters, motor drives
- Panel building and electrical cabinets (DIN-rail versions)
- HF ham radio stations requiring strong mains noise isolation
Downloads
(All product names, logos, and brands are property of their respective owners. FN2410data © Schaffner Group, 2025.)
