Stainless Steel (RVS / INOX 316) Mounting Kit

(Updated 13 Oct 2025 — now available in two enclosure sizes)

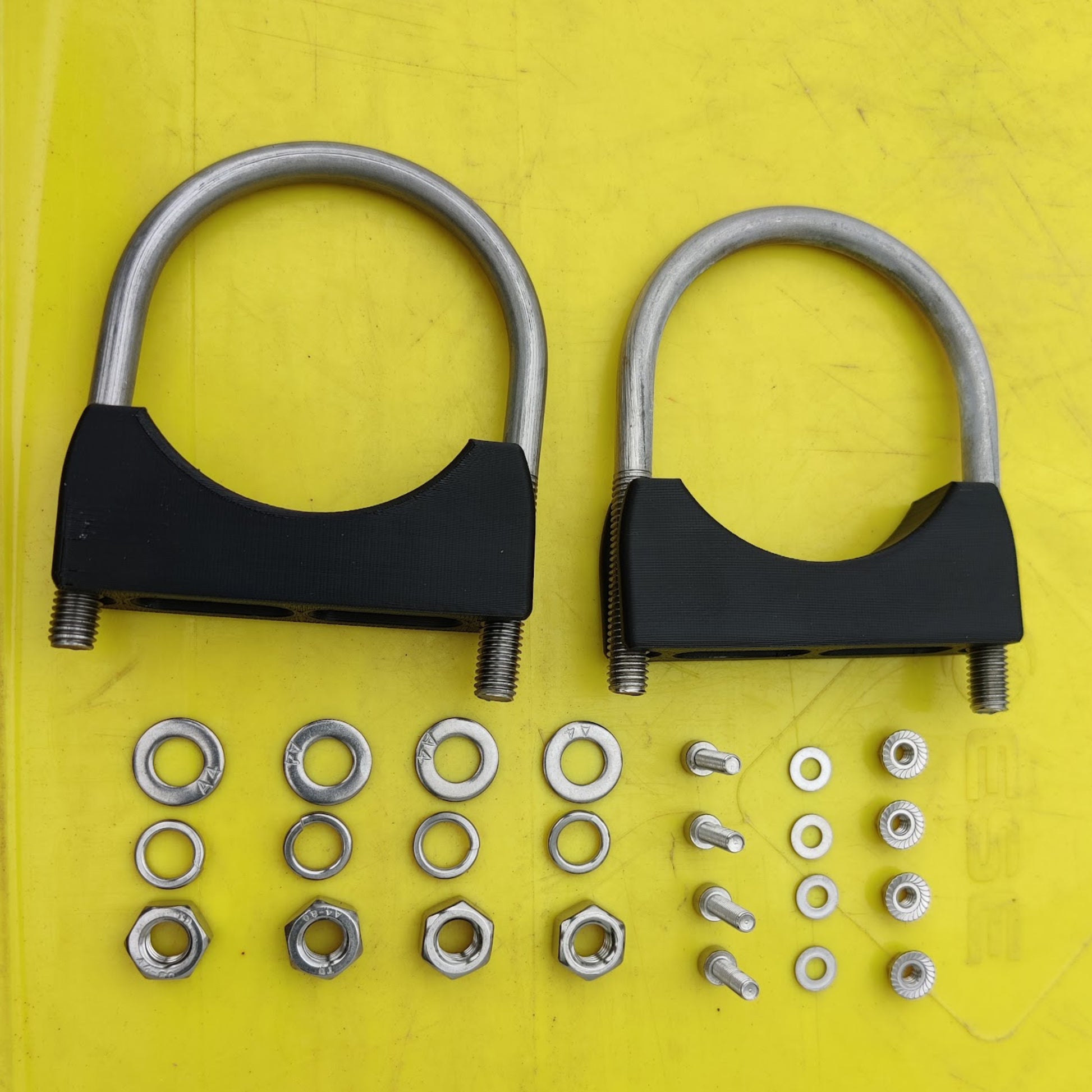

Mounting Kit Contents

• 1 × Stainless steel (type 316) mounting plate
• 2 × Stainless steel U-bolt mast clamps (60 mm / M8 ≈ 2.36 in / 5⁄16 in)
• 4 × Stainless steel (type 316) nuts DIN 912 M8
• 4 × Stainless steel (type 316) washers DIN 912 M8
• 4 × Stainless steel (type 316) springlock washers DIN 912 M8
• 2 × Black ASA tube inlays (for galvanic isolation)
• 4× Stainless steel (type 316) hex socket cap bolts DIN 912 M4 × 12 mm (0.47 in)
• 4 × Stainless steel (type 316) lock nuts DIN 912 M4
• 4 × Stainless steel (type 316) washers DIN 912 M4

Two Available Versions

This mounting kit is available in two sizes, each containing the same high-grade components but matched to the corresponding RF.Guru enclosure:

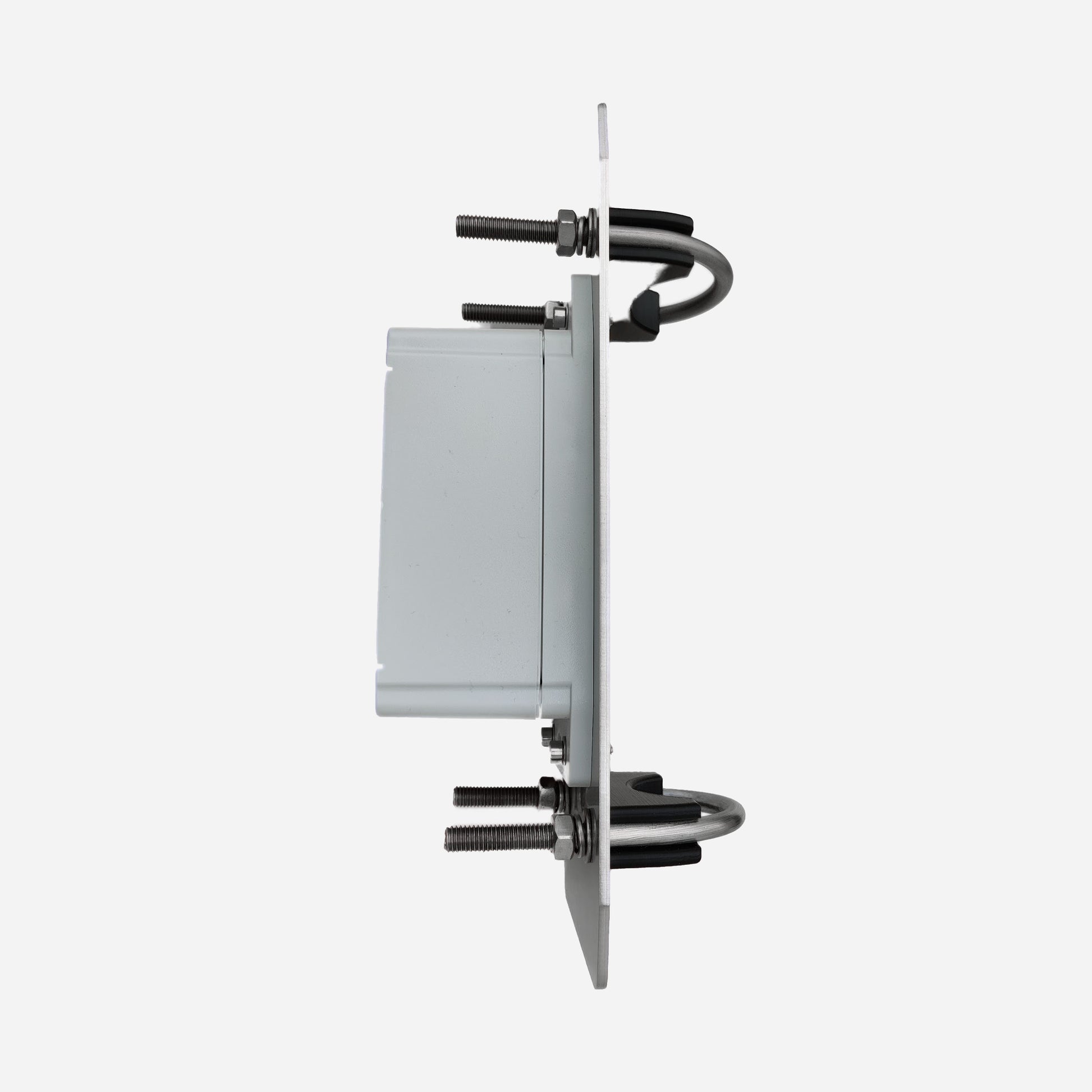

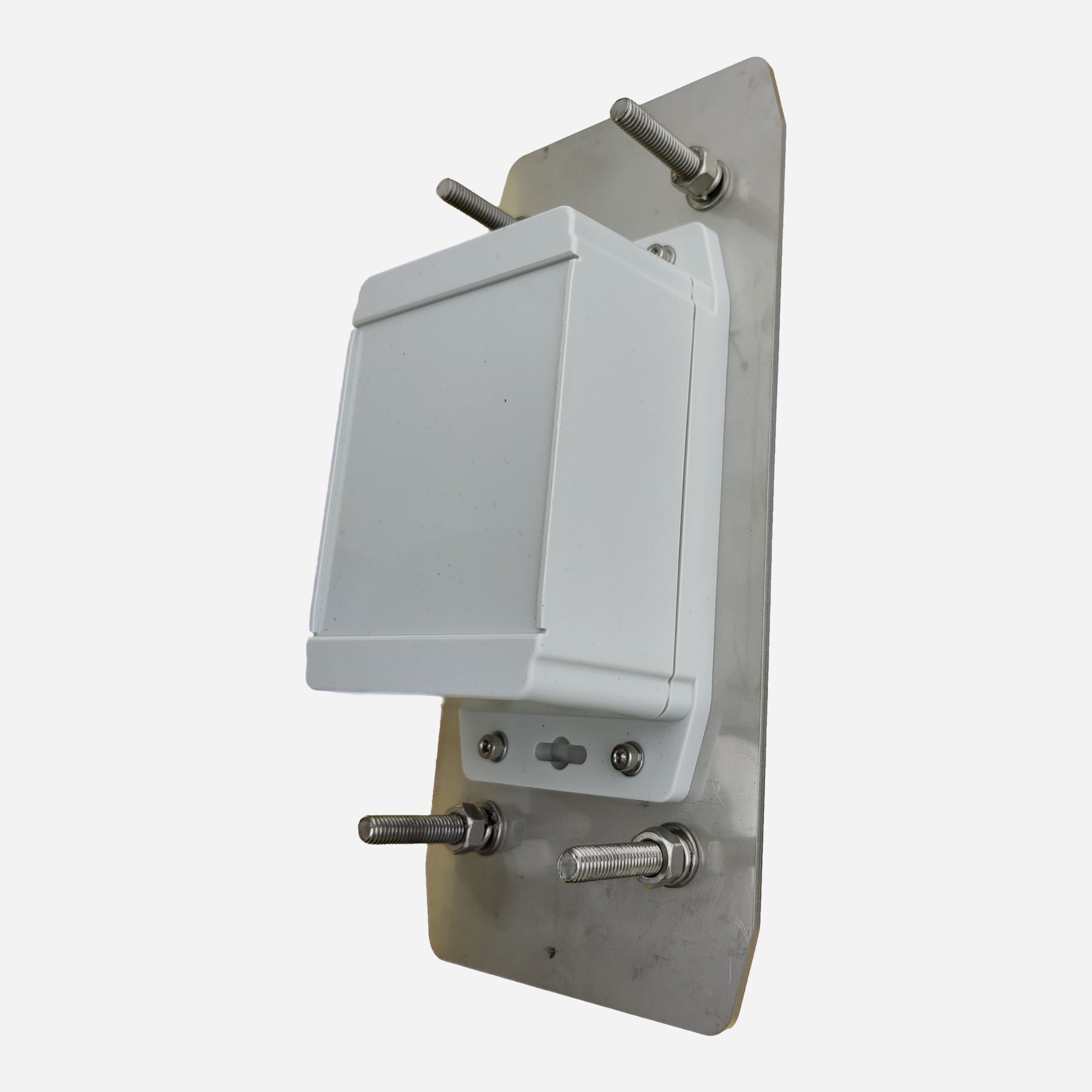

• Small Version: fits 120 × 91 × 62 mm (4.72 × 3.58 × 2.44 in) enclosures — ideal for compact 1 kW baluns and unun units.

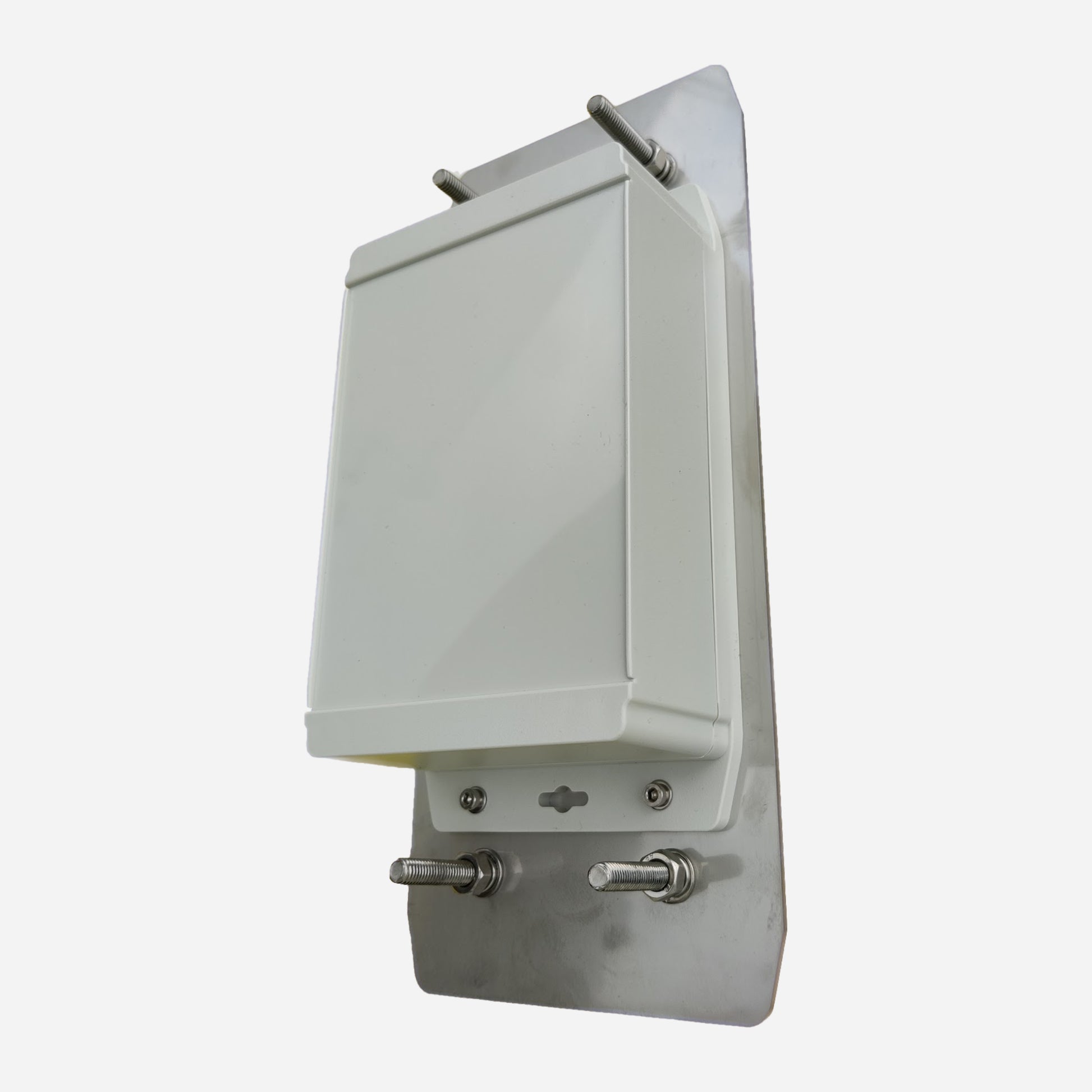

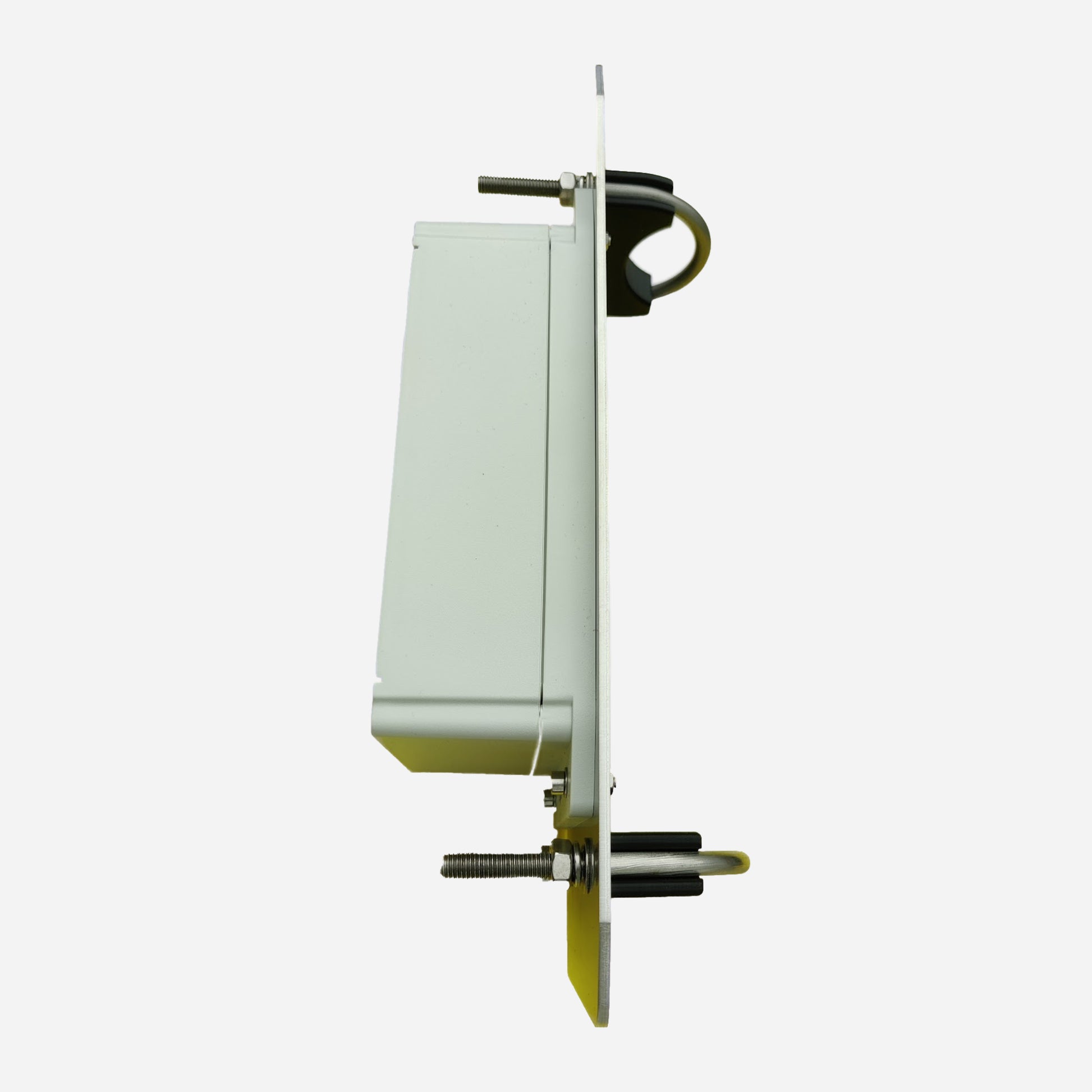

• Large Version: fits 180 × 120 × 62 mm (7.09 × 4.72 × 2.44 in) enclosures — used on our high-power 2 kW and 3 kW balun series.

Both kits use marine-grade 316 stainless steel hardware for maximum corrosion resistance and long-term outdoor durability.
