Taoglas GW.53.A151 IP67 Wi-Fi Antenna (Terminal Mount)
Small, tough, and built for outdoor IoT.

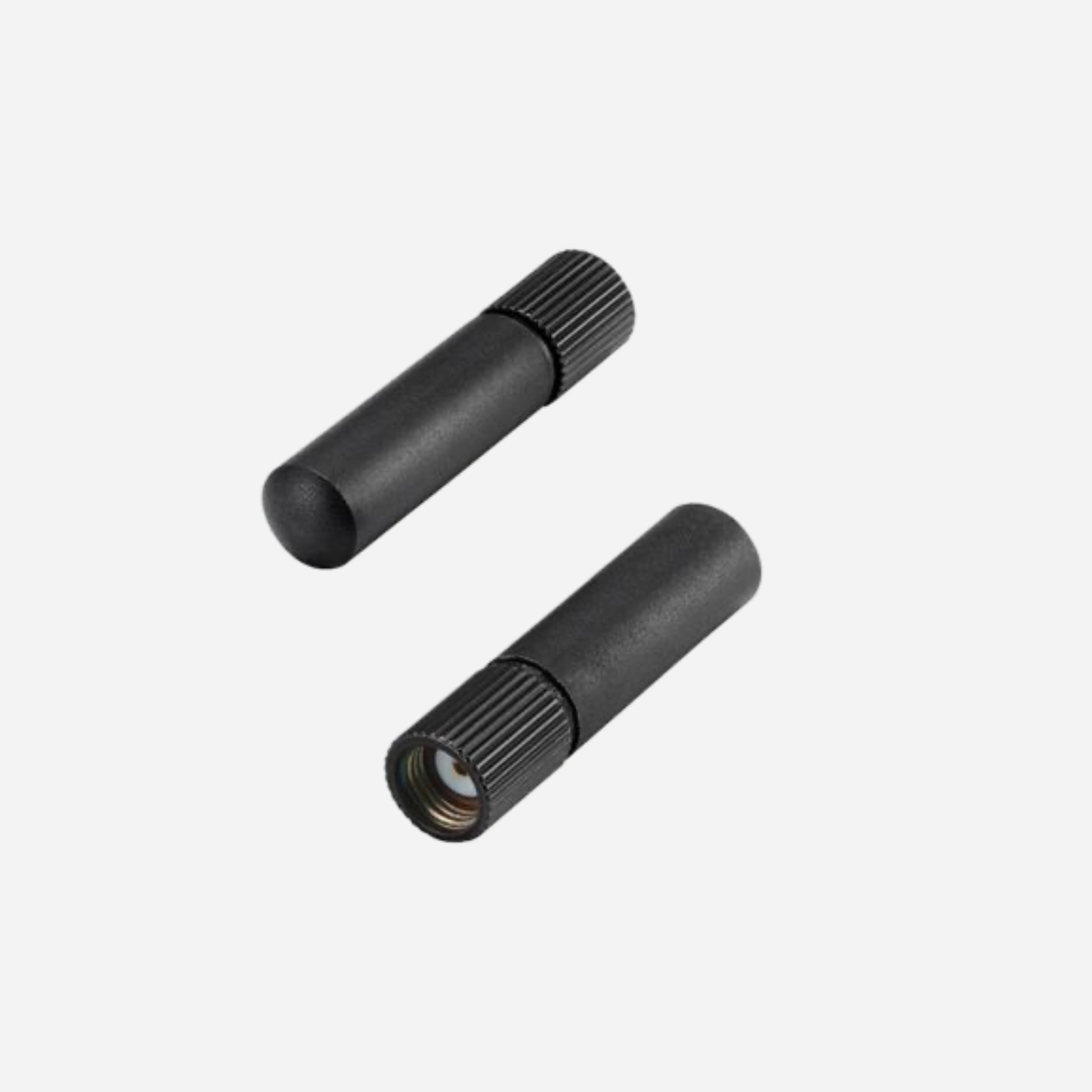

The Taoglas GW.53.A151 is a super-compact 2.4/5.8 GHz terminal-mount antenna designed for reliable connectivity on Wi-Fi / WLAN and Bluetooth bands in harsh environments. Its IP67-rated silicone enclosure handles dust, dirt, and even temporary submersion ... ideal for sensors, gateways, and smart monitoring deployments.
Part number: GW.53.A151
Type: 2.4/5.8 GHz terminal mount antenna ... RP-SMA(M) straight
What Matters Most at 2.4/5.8 GHz
Ground plane and mounting dominate performance. Like most small terminal antennas, the efficiency and gain depend strongly on the size/orientation of the device ground plane. Taoglas provides performance data in free space and on two reference ground planes (15×9 cm and 9×15 cm) so you can estimate what to expect in a real enclosure.
* Best practice: keep the antenna clear of large metal parts, place it on/near a meaningful ground reference, and avoid detuning plastics filled with carbon/metallic additives.
Why the GW.53.A151?
- Dual-band coverage ... supports 2.4–2.5 GHz and 5.1–5.85 GHz
- IP67 rated enclosure ... built for outdoor and industrial environments
- Super small form factor ... compact antenna for tight builds
- 50 Ω, omni pattern ... predictable system integration for Wi-Fi radios
- RP-SMA(M) straight connector ... fast, robust terminal mounting
Installation Notes
- Connector: RP-SMA male (straight). Confirm your device has the matching RP-SMA female jack.
- Placement: mount where the antenna “sees” free space ... avoid pressing it against metal walls or large heatsinks.
- Ground reference: performance improves with an effective ground plane ... small devices often benefit from adding a dedicated ground/metal reference in the enclosure.
- Orientation: keep it consistent across units if you want repeatable RF results.
* If you’re migrating from SMA to RP-SMA, verify polarity ... RP-SMA uses the same threads as SMA but swaps the center pin/socket gender.
Operating Bands
- 2.4 GHz WLAN / Bluetooth: 2.4–2.5 GHz
- 5 GHz WLAN: 5.1–5.85 GHz
* Regional channel availability and power limits depend on local regulations and product certification.
Rugged Construction
- Encapsulation: silicone enclosure (durable and weather resistant)
- Ingress protection: IP67 rated
- Compact mechanical profile: Ø8.5 mm × 35.8 mm ... low visual impact, easy integration
Specs at a Glance
| Parameter | Value |
|---|---|
| Part Number | GW.53.A151 |
| Frequency Bands | 2.4–2.5 GHz and 5.1–5.85 GHz |
| Impedance | 50 Ω |
| Polarization | Linear |
| Radiation Pattern | Omni |
| Connector | RP-SMA(M), straight |
| Dimensions | Ø8.5 mm × 35.8 mm |
| Weight | 5.5 g |
| Material | Silicone |
| Operating Temperature | -40 °C to +85 °C |
| Waterproof Rating | IP67 |
| Compliance | RoHS & REACH compliant |
Performance Snapshot (Reference Setups)
| Band | Test Condition | Efficiency (%) | Average Gain (dB) | Peak Gain (dBi) |
|---|---|---|---|---|
| 2.4–2.5 GHz | In free space | 21.9 | -6.5 | -0.61 |
| 2.4–2.5 GHz | On 15×9 cm ground plane (long side) | 56.9 | -2.45 | 3.35 |
| 2.4–2.5 GHz | On 9×15 cm ground plane (short side) | 53.0 | -2.75 | 4.03 |
| 5.1–5.85 GHz | In free space | 43.5 | -3.62 | 1.13 |
| 5.1–5.85 GHz | On 15×9 cm ground plane (long side) | 64.0 | -1.94 | 6.51 |
| 5.1–5.85 GHz | On 9×15 cm ground plane (short side) | 60.5 | -2.18 | 3.84 |
* These are reference measurements ... real performance varies with enclosure plastics, nearby metal, PCB layout, cable routing, and device orientation.
Typical Uses
- Outdoor IoT sensors ... smart monitoring, smart agriculture, remote telemetry
- Industrial gateways ... rugged Wi-Fi connectivity in harsh environments
- Smart grid / smart city nodes ... durable short antenna for compact enclosures
- Wi-Fi enabled devices ... terminal-mount installations where robustness matters
Mini-FAQ
- Is this a Wi-Fi antenna or Bluetooth antenna? — Both ... it covers the 2.4 GHz band (Wi-Fi/Bluetooth) and the 5 GHz Wi-Fi band.
- What connector is it? — RP-SMA male (straight). Make sure your device uses RP-SMA, not standard SMA.
- Why do specs mention a ground plane? — Small terminal antennas “use” the device ground as part of the radiator system ... more ground reference usually improves efficiency and gain.
- Can I mount it inside a plastic box? — Yes, but plastics and nearby metal can detune and reduce efficiency ... keep it away from metal walls and avoid conductive/filled plastics near the antenna.
- Is it waterproof? — The antenna enclosure is IP67 rated ... system waterproofing still depends on how your enclosure and connector interface are implemented.
