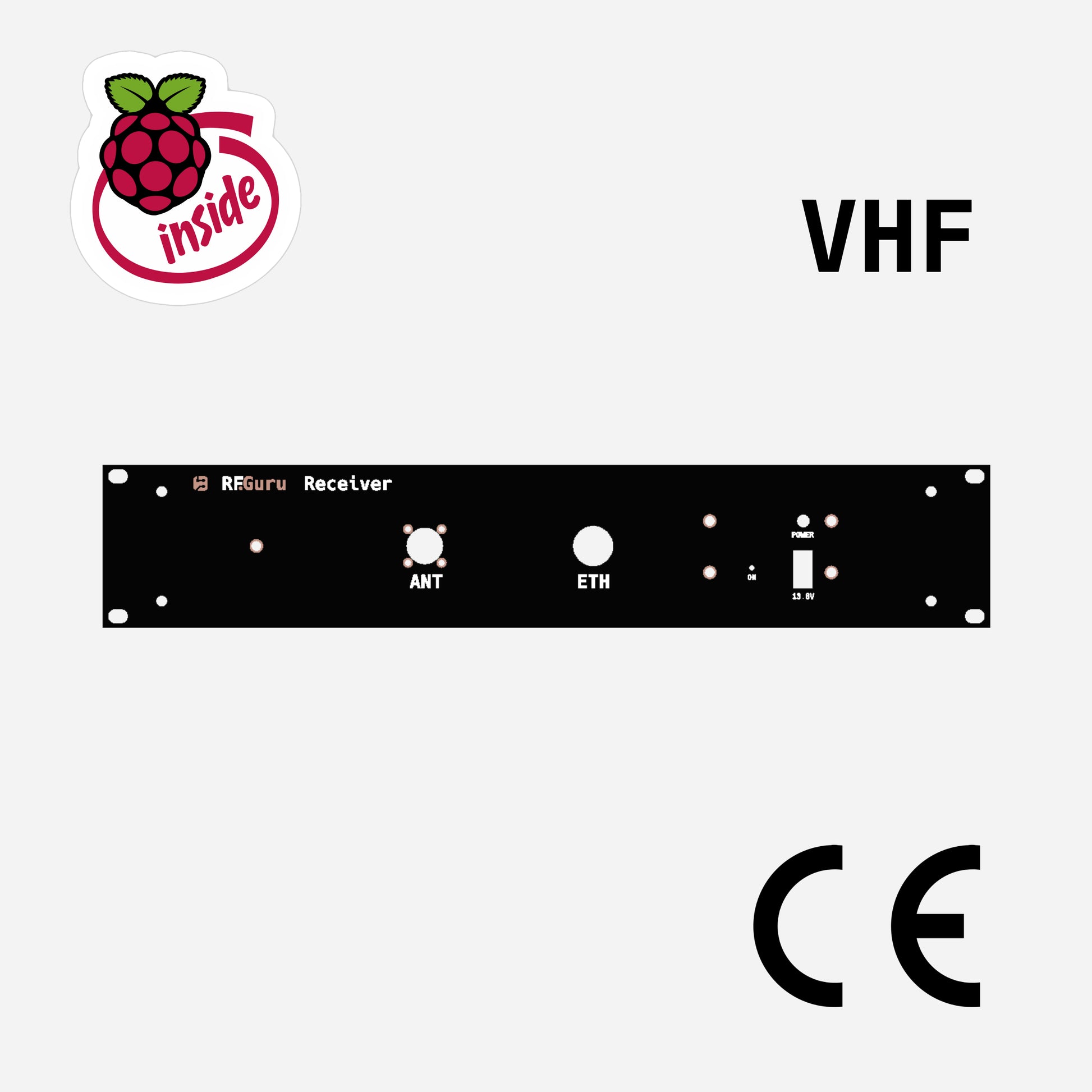

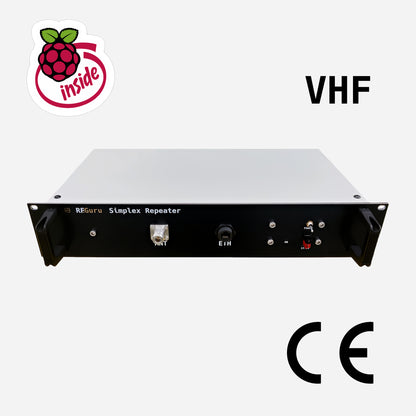

19" Rack-Mountable Analog Receiver – 2 m VHF
The Rack-Mountable Analog Receiver is a compact, high-performance receive-only VHF platform built for reliable fixed-station use in SVXLink repeater RX nodes, EchoLink gateway receivers, analog linking systems, and APRS iGate applications.
This receiver is built around the Receiver1 VHF module and integrated into a shielded 2U 19" rack-mount enclosure for clean, dependable operation in station, repeater, and networked receive installations.
This is a receive-only product. TX power, harmonic, and channel-power measurements do not apply to this version.
What Makes This Rack Receiver Different
- Receive-only architecture — optimized for stable, sensitive VHF reception without an onboard transmitter stage.
- Built around Receiver1 VHF — based on our proven Raspberry Pi-compatible VHF receiver platform.
- External RF via N connector — a robust and practical RF interface for fixed-station installations.
- Shielded 2U rack enclosure — designed for cleaner operation and better immunity in busy RF environments.
- Ideal for networked receive sites — well suited for SVXLink repeater RX nodes, APRS iGates, and remote receive points.
Specs at a Glance
| Feature | Specification |
|---|---|
| Version | VHF 2 m (134–174 MHz) |
| Operation | Receive-only |
| RX Sensitivity | 12 dB SINAD @ −115 dBm |
| Bandwidth | 12.5 kHz / 25 kHz |
| Clock Stability | 1 ppm KDS TCXO |
| Audio | Wolfson WM8960 ADC @ 48 kHz |
| RF Connector | External N connector |
| Control Platform | Receiver1 VHF with Raspberry Pi Zero or compatible SBC |
| Indicative RX Consumption | 220 mA measured with Raspberry Pi Zero W |
Included with the Product
- Complete assembled and tested rack device
- Preloaded storage with our latest compatible image
Typical Applications
- SVXLink Repeater RX Node — reliable and efficient receive-only operation for simplex or linked repeater systems
- APRS VHF iGate — capture and forward APRS packets with excellent sensitivity
- EchoLink or Analog Gateway Receiver — dependable receive-side operation for network bridging
- Remote Receiver Site — suitable for centralized or distributed station architectures
Key Features
- Fully shielded 19" enclosure engineered for receive service in RF-dense environments
- ENIG-finished PCB (Electroless Nickel Immersion Gold)
- Ultra-stable 1 ppm TCXO
- Independent receiver settings for RX frequency, CTCSS, and CDCSS
- Adjustable RX audio levels for flexible integration
- Signal/Tone LED indication for practical status monitoring
Power Consumption
- Receive mode: 220 mA measured with Raspberry Pi Zero W
Software - How-To - Instructions
- SVXSpot Integration: https://github.com/Guru-RF/SVXSpot
- SVXSpotMain Repository: https://github.com/Guru-RF/SVXSpotMain
- Preconfigured SVXLink Bookworm Image: https://github.com/Guru-RF/SVXSpot?tab=readme-ov-file#svxlink-bookworm-image
VHF Receiver Measurements
Sensitivity Measurements
The 12 dB SINAD sensitivity figure of −115 dBm provides a realistic indication of practical receive performance for narrowband VHF applications such as repeater receive nodes and APRS iGates.
Receive Performance
Receiver1 VHF is optimized for sensitive, stable VHF reception with support for 12.5 kHz and 25 kHz channel bandwidths, a 1 ppm TCXO, and high-quality audio conversion through the Wolfson WM8960 ADC. The result is a practical and robust receive platform for continuous-duty infrastructure use.
Why This Is Different from a Repeater Module
Unlike a full repeater transceiver, this product is a dedicated receiver. That means there is no transmitter stage, so output power, harmonic suppression, and channel-power plots are not relevant here. The focus is entirely on reception quality, stability, and integration flexibility.
Mini-FAQ
- Is this a repeater transmitter? — No. This is a receive-only rack receiver for VHF 2 m applications.
- Which band is supported? — This version covers 134–174 MHz.
- What sensitivity does it offer? — The receiver module is specified at 12 dB SINAD @ −115 dBm.
- What is it typically used for? — Common uses are SVXLink repeater RX nodes, APRS iGates, and gateway or linking receivers.
- What RF connector is used? — The rack version uses an external N connector.
