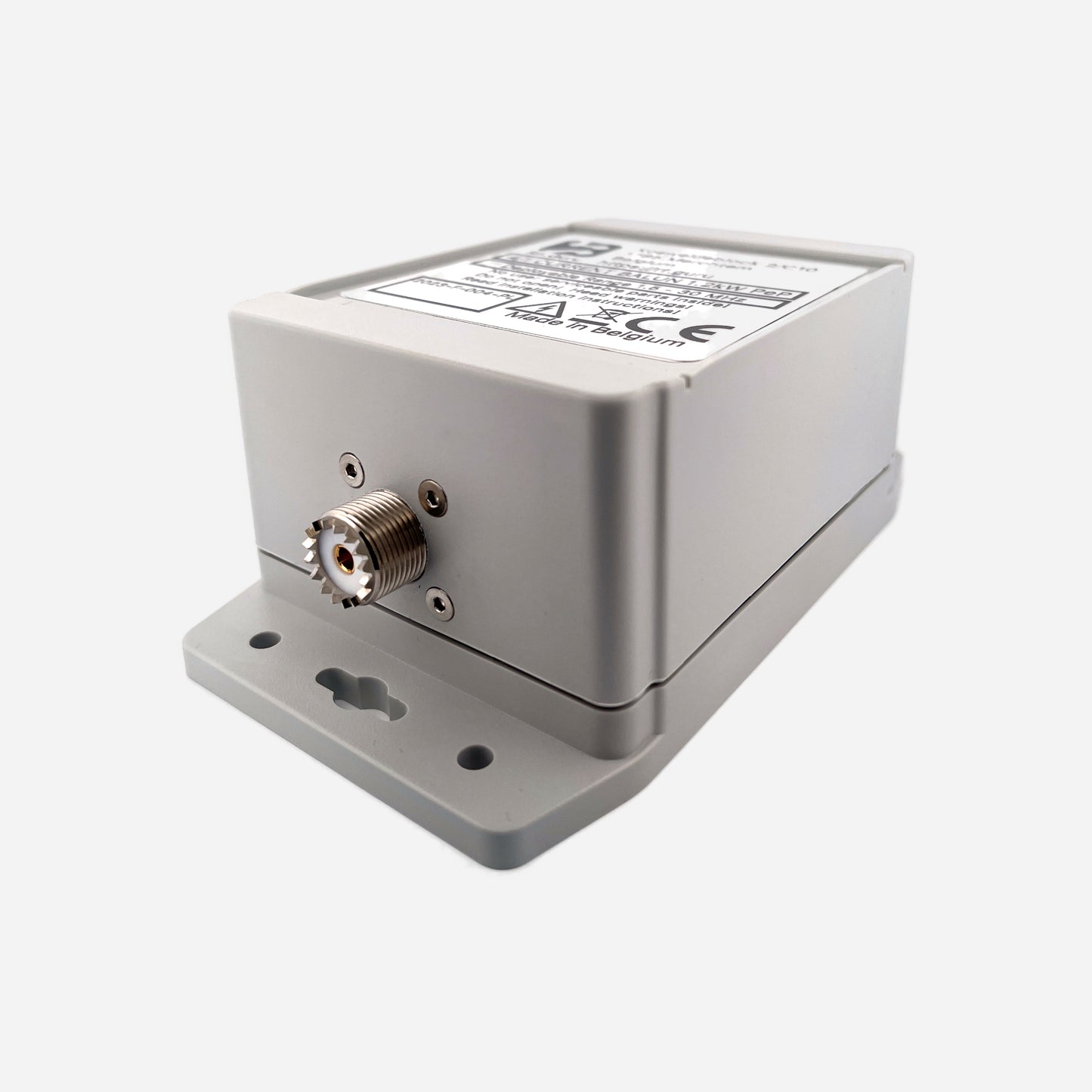

2023-F-004 | Standard 4/1 Balun For KLM KT34 Yagis

2023-F-004 | Standard 4/1 Balun For KLM KT34 Yagis

Regular price €149,00 EUR
Regular price Sale price €149,00 EUR
Sale Sold out
Tax included.
Connector
Mounting Kit



Function

  • 4/1 High Power Dual Core Current BALUN.
  • Real Guanella type DUAL CORE current BALUN.

Mechanical Characteristics

  • Optimized 61 mm diameter toroidal ferrites
  • Heat resistant teflon coaxial cable with high breakdown voltage.
  • Professional 50 Ohms N-connector or SO239 connector. (IP66 after sealing with self- vulcanizing tape or equivalent).
  • Stainless steel M6 antenna connections. Stainless steel type 316 More info.
  • Waterproof (IP64) and shock proof polycarbonate UV resistant enclosure. More info.
  • Weight: +/- 500 g.

Electrical properties

  • Conservatively rated 1/1 transmission line transformer.
  • Operation principle: Coaxial Common-Mode Choke.
  • Very high common-mode impedance. (Substantially higher than what’s obtainable with the “beads over coax” approach).
  • Max. power:
    • 2400 W PeP @ VSWR < 2.0/1 (ICAS)
    • 1200 W PeP @ VSWR < 2.0/1 (CCS)
    • For ICAS and CCS power definitions, refer to Documentation

  • Deployable frequency range: 1.5 to 30 MHz.
  • Intrinsic VSWR : < 1.15 / 1 at the frequency range edges.
