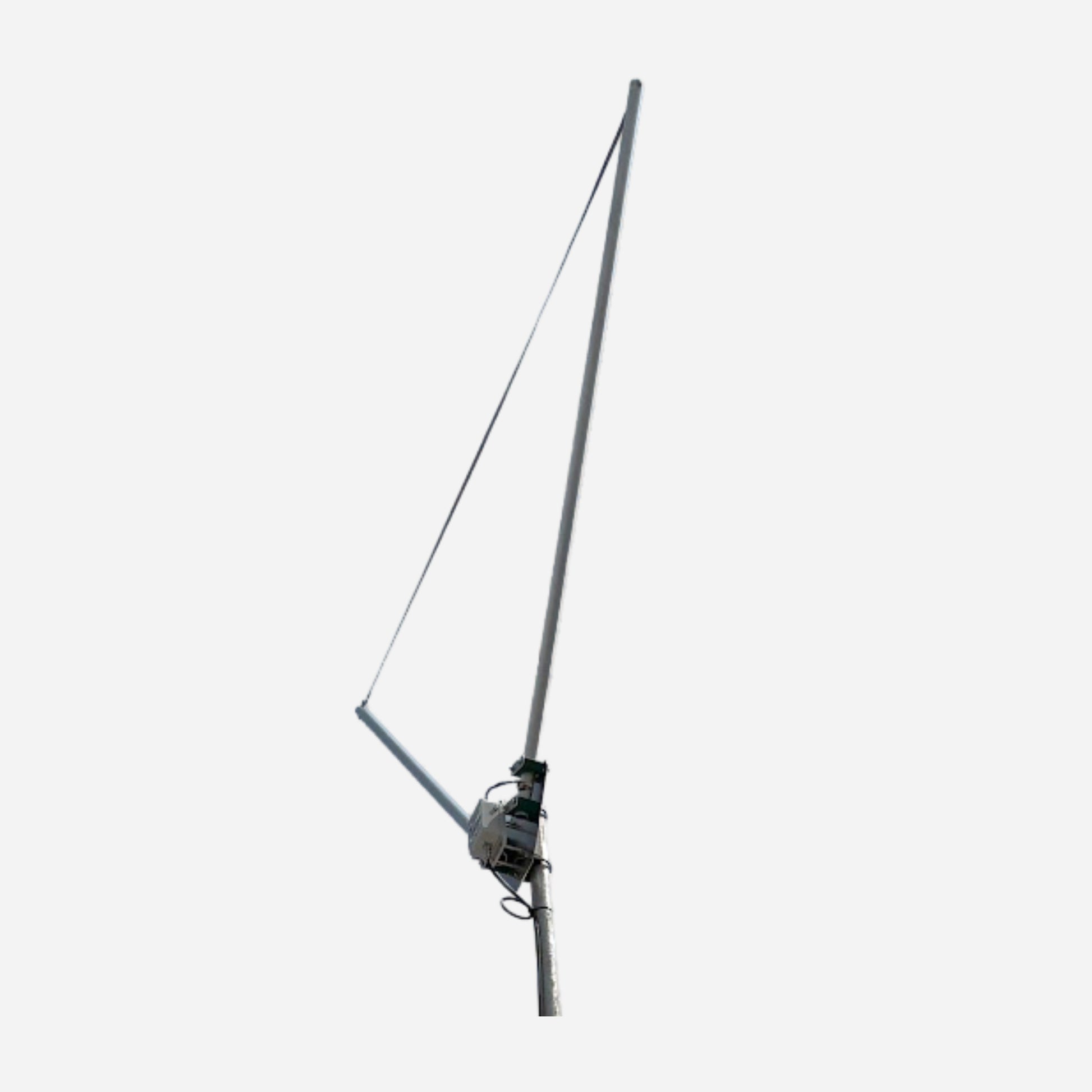

9kW SolidDelta - The Ultimate Low Angle DX Monoband Deltaloop

All our products are handmade, and fulfilment times may vary depending on order volume. Please allow 2–3 weeks for your order to be completed and shipped.

The SolidDelta is a premium monoband delta loop antenna built for serious HF operators looking for efficient, low-angle performance without the complexity of ground radials or tuners. Designed for the 6m, 10m, 12m, 15m, and 17m bands, this antenna uses marine-grade materials and precision geometry for maximum performance.

Engineered Performance

The SolidDelta is constructed from 35mm x 2mm thick marine-grade aluminum tubing. At the top, a 4cm spaced parallel wire (2mm) segment minimizes I²R losses while increasing bandwidth. With a carefully tuned 61° vertex angle, the antenna presents a natural 50-ohm impedance at resonance, eliminating the need for transformers or matching devices.

Why Choose the SolidDelta?

• No ground radials required
• Low take-off angle ideal for DX
• Full-wave closed loop: naturally quiet on receive
• Direct coax feed (50 ohm)
• Rugged, heavy-duty construction
• Maintenance-free marine-grade aluminum

Compared to Verticals

Unlike traditional 1/4-wave verticals, which demand an extensive radial field, or 5/8-wave verticals, which require tuning and can exhibit undesirable high-angle lobes, the SolidDelta delivers a clean, symmetric pattern with consistent low-angle radiation. This makes it a superb option for long-haul DX while still maintaining strong performance for short skip contacts.

Also Ideal for Short Skip

The SolidDelta is especially well-suited for short skip operation, thanks to its broad azimuth coverage and mid-angle radiation when mounted at modest apex heights. Unlike V dipoles, which have strong nulls off the ends, or verticals with narrow low-angle lobes, the SolidDelta provides an almost omnidirectional pattern at typical short skip angles—making it a superior choice for regional communication. The loop performs exceptionally well when tuned to ideal heights for either short skip or DX, with strong mid- and low-angle lobes depending on deployment.

Band-by-Band Optimized Heights and Take-Off Angles

Ideal For:

• DXpeditioners needing solid monoband performance
• Field-day and club station installations
• Permanent or semi-permanent home station setups
• Quiet receiving and reduced QRM pickup

The SolidDelta redefines monoband performance in a vertical form factor – direct, efficient, and resonant out of the box.

SolidDelta — A Solid DeltaLoop Built to last.
