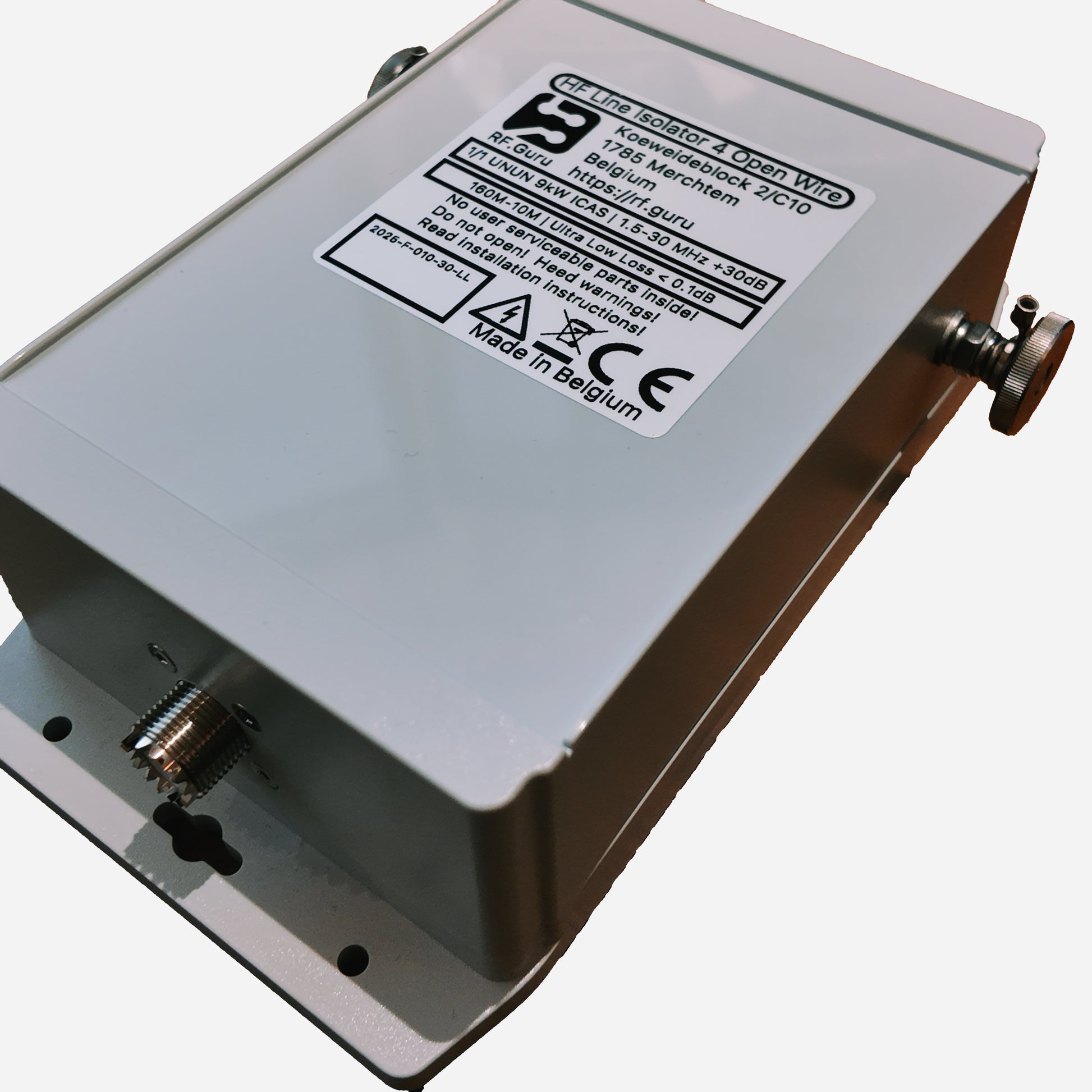

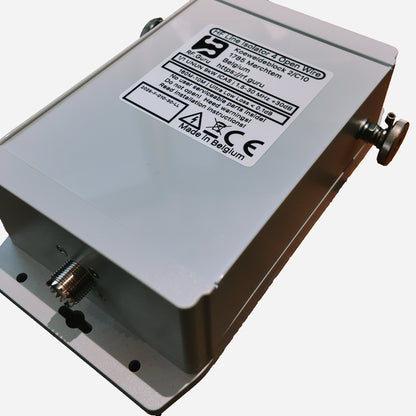

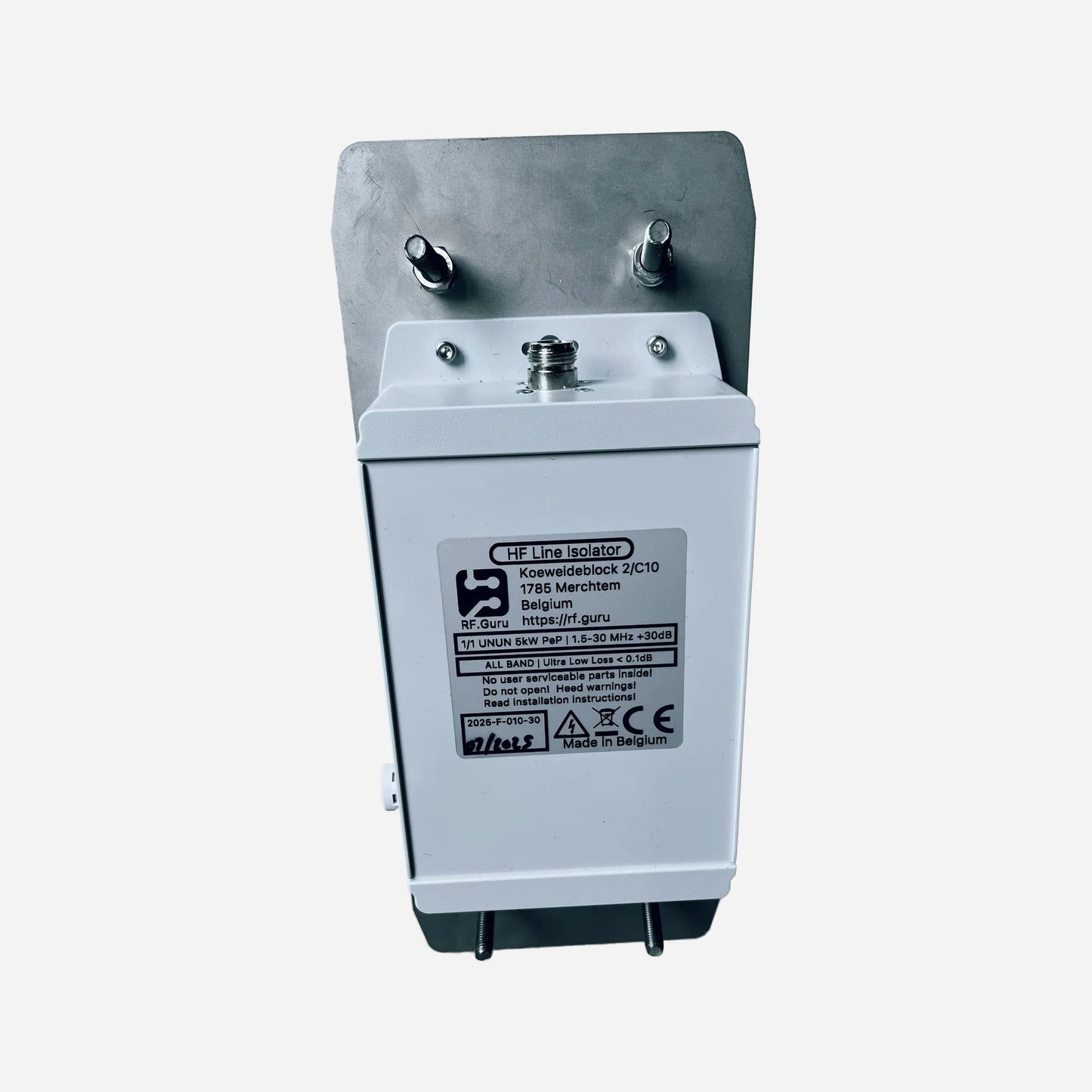

9kW Wide Band (HF) High Power +30dB CMR Open Wire Isolator 1.5-30MHz

Why ?

A choke is essential between the ladder-line and the tuner in a doublet antenna system to block unwanted RF currents from flowing on the outside of the coaxial shield or into the tuner. Without it, you risk interference, poor tuning efficiency, and erratic radiation patterns.

In a balanced line Inverted V configuration, the choke is equally crucial to ensure that currents remain balanced on both legs of the antenna.

Function

• Ultra Low Loss High power Common-Mode Choke type 1/1 UNUN.

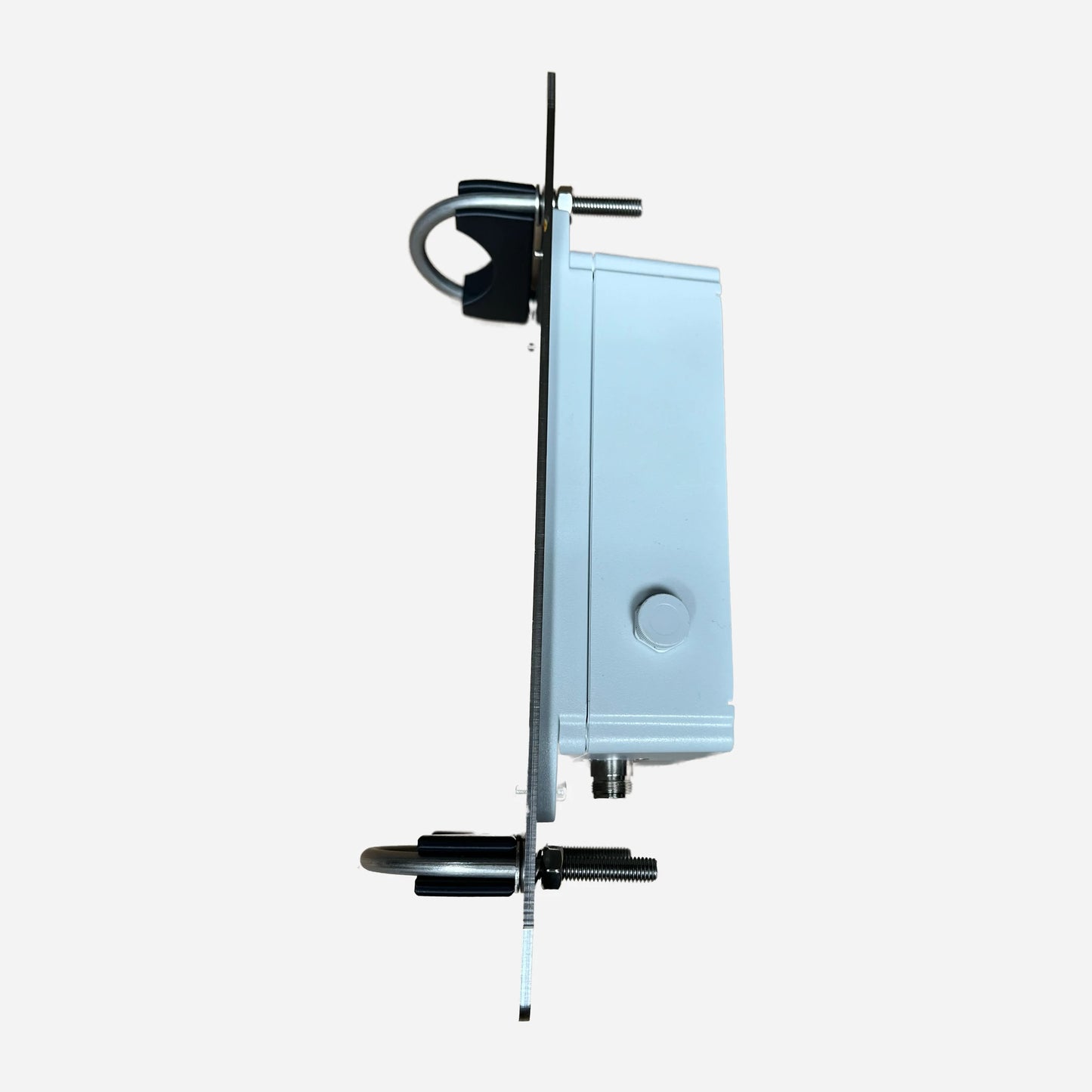

Mechanical Characteristics

• Professional 50 Ohms N-connector or SO239 connector. (IP66 after sealing with self- vulcanizing tape or equivalent).

Deployable frequency range: 1.5 to 30 MHz

• Optimized for 1,5 - 30 MHz > 30dB Rejection

• Less than 0.10dB insertion loss
• Less than 1.2:1 SWR

Maximum power: 9000 W PeP (ICAS) / 5000 W PeP (CCS) / 3000 W DIGITAL (FT8/FT4) (@ antenna VSWR of < 2/1). More info

General LINE ISOLATORS user installation guide & safety instructions

Common mode rejection

Insertion Loss

SWR
