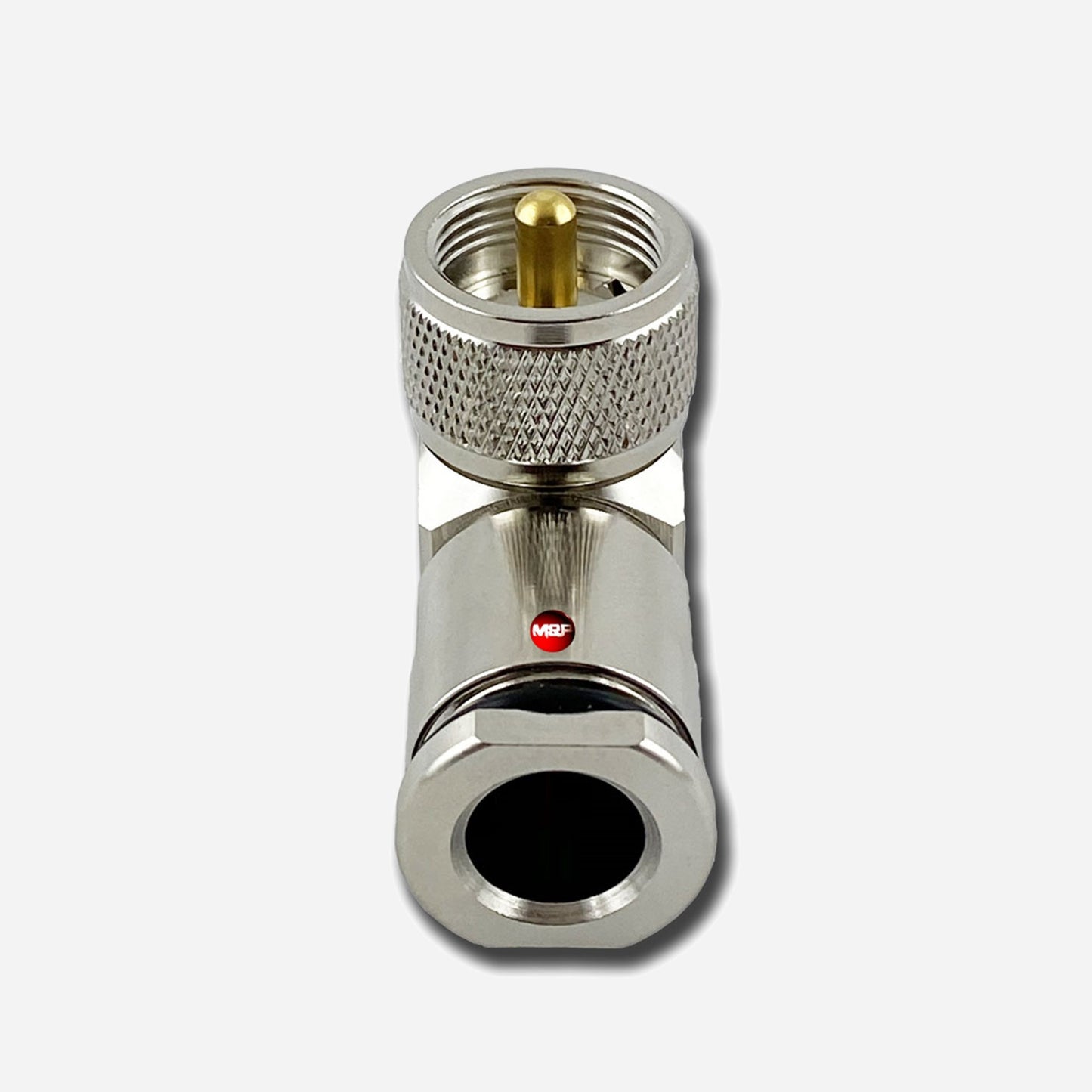

C.UHF.BROAD50-M90 | UHF PL-259 Right Angle Connector (10mm | .400")

The C.UHF.BROAD50-M90 is a right-angle UHF Male (PL-259) connector, designed for 10mm (.400") coaxial cables, offering low-loss RF connectivity in ham radio, broadcast, and professional RF applications. The 90-degree design allows for easy routing in tight spaces, making it ideal for mobile and base station setups where cable management is a priority.

Key Features:

• Right-Angle Design: Optimized for tight-space installations and improved cable routing.
• Optimized for 10mm (.400") Coaxial Cables: Compatible with LMR-400, RG-213, and similar cables.
• Low-Loss RF Performance: Provides minimal insertion loss and stable impedance matching.
• Durable & Weather-Resistant: Corrosion-resistant metal construction for long-lasting outdoor and indoor applications.
• Secure Threaded Connection: Standard PL-259 interface ensures a tight and stable fit with SO-239 sockets.
• Versatile Applications: Ideal for ham radio transceivers, antenna systems, repeaters, and RF test setups.

Technical Specifications:

• Connector Type: UHF Male (PL-259) Right Angle
• Cable Compatibility: 10mm (.400") coaxial cables (e.g., LMR-400, RG-213)
• Impedance: 50 Ohms
• Frequency Range: Up to 500 MHz
• Body Material: Precision-machined metal with corrosion-resistant plating
• Center Pin: Silver or gold-plated for superior conductivity
• Installation: Solder-type termination for secure RF connections

Application Areas in Ham Radio:

• Antenna Feedlines: Provides minimal signal loss in high-performance RF transmission.
• Tight-Space Installations: Ideal for mobile setups, confined radio shacks, and base stations.
• High-Power RF Systems: Suitable for amplifiers, tuners, and repeater connections.
• Custom RF Projects: Great for DIY RF builds, impedance-matching networks, and RF test environments.
