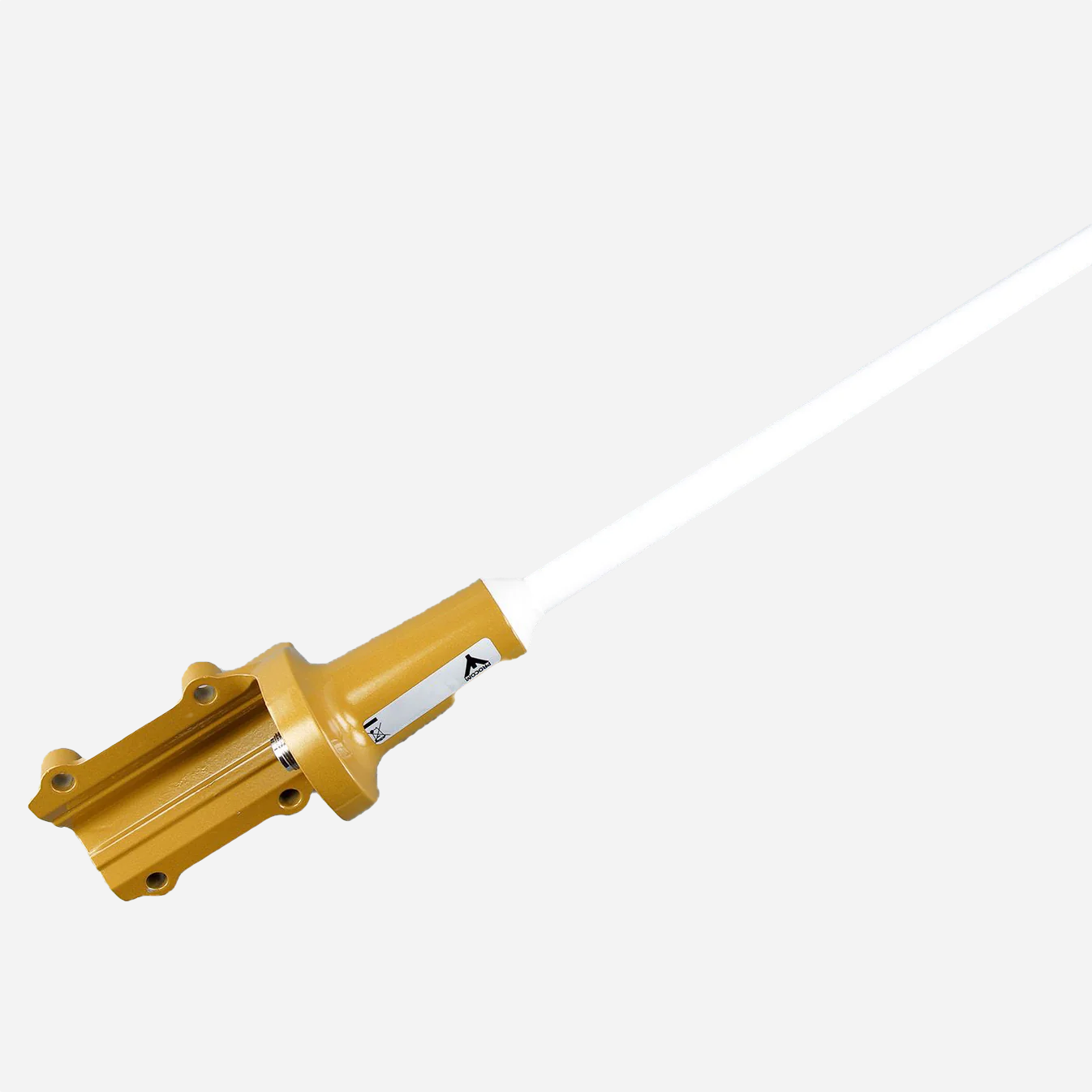

CXL 70-5C/l | Amphenol Procom Colinear, 5 dBd Base Station Antenna for the 70cm Band

CXL 70-5C/l | Amphenol Procom Colinear, 5 dBd Base Station Antenna for the 70cm Band

€433,18 EUR
€433,18 EUR
Sale Sold out
Tax included.

Description

  • CXL 70-5C/l is a 5 dBd, vertically polarized, omnidirectional base station and marine antenna, which covers the 70cm band.
  • The antenna is provided with our “C” universal fixation bracket made of epoxy-coated, seawater resistant aluminium. The accompanying U-bolts and fittings are made of stainless steel.
  • CXL 70-5C/l can be mounted on 27 to 65 mm dia. mast tubes and it is possible to lead the cable either along the inside or on the outside of the mast tube.
  • The carefully designed radiating element is sealed in a high-quality, conical glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The exceptional mechanical capabilities of this antenna ensure long dependable service in all environments.

Specifications

Electrical

  • Frequency 30 MHz within the 70cm band
  • Antenna Type Collinear, broad-band
  • Max. Input Power 150 W
  • Polarisation Vertical
  • Pattern Type Omnidirectional
  • 3 dB Beamwidth, E-Plane 18 °
  • 3 dB Beamwidth, H-Plane Omnidirectional
  • Impedance 50 Ω
  • Gain 5 dBd (7.2 dBi)
  • VSWR Type: 420-440 MHz < 1.5/1
  • Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
  • HCM Code(s) HCM000ND00, 009DE50

Mechanical

  • Connection N(f)
  • Materials Shroud: Polyurethane-coated glass fibre
  • Mounting bracket: Seawater resistant aluminium, epoxy-coated
  • Clamps: Stainless steel
  • Colour White (RAL 9003)
  • Wind Area 0.045 sq. m / 0.48 sq. ft
  • Wind Load 57 N (160 km/h)
  • Dia. At Top End 13 mm / 0.51 in.
  • Dia. At Bottom End 25 mm / 0.98 in.
  • Height Approx. 2200 mm / 86.61 in. (dep. on freq.)
  • Weight Approx. 2.8 kg / 6.17 lb.
  • Mounting On 27 - 65 mm dia. mast tube

Environmental

  • Operating temperature range -35 °C to +70 °C
  • Survival Wind Speed 200 km/h
  • Ingress Protection IP66

Diagram and Mounting

Typical radiation pattern (E-Plane)

Typical radiation pattern (H-Plane)

Multi-purpose mounting bracket
