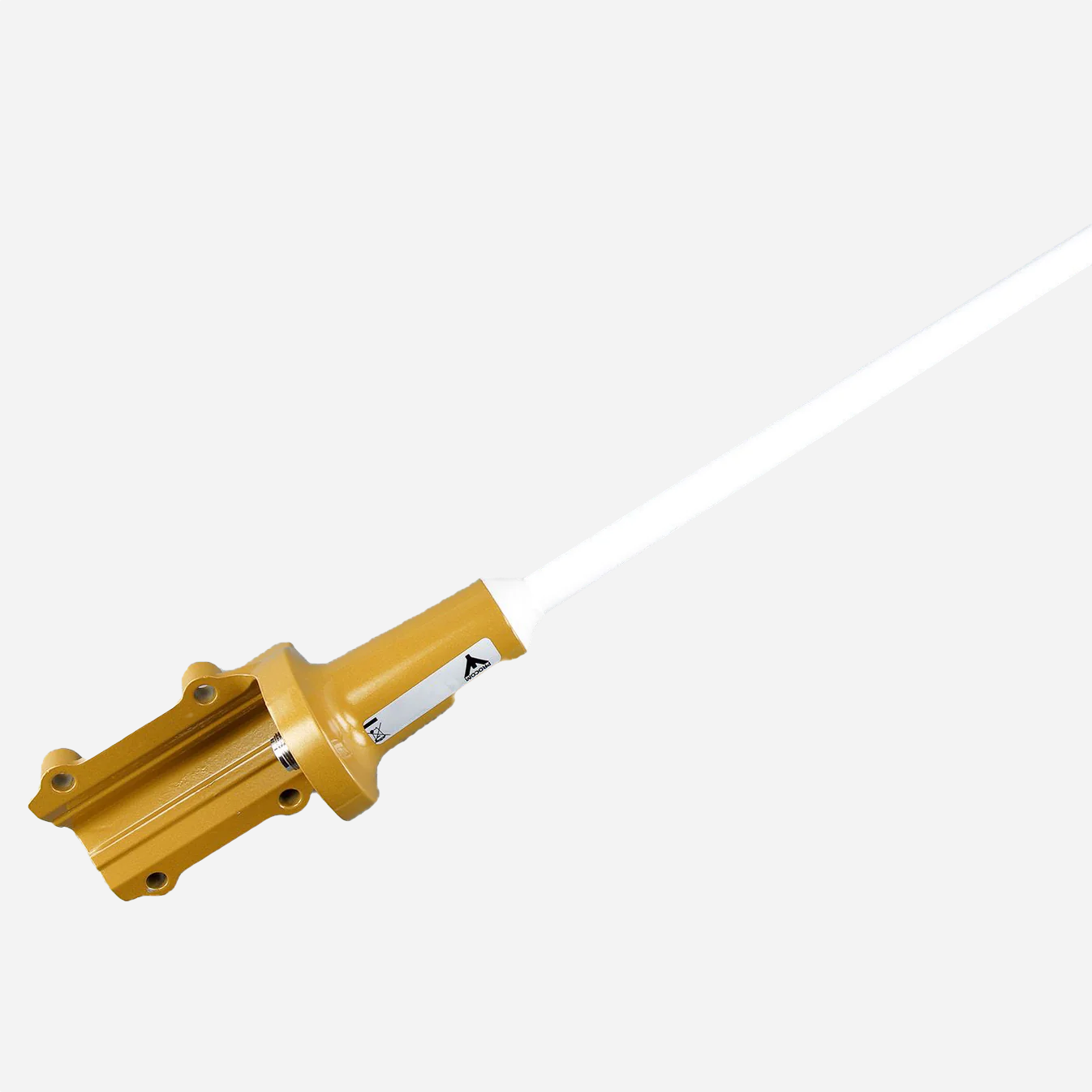

CXL 70-1LW/h | Amphenol Procom Unity-Gain, Omnidirectional Base Station for the 70cm Band

CXL 70-1LW/h | Amphenol Procom Unity-Gain, Omnidirectional Base Station for the 70cm Band

€217,80 EUR
€217,80 EUR
Sale Sold out
Tax included.

Description

  • CXL 70-1LW/… is a 0 dBd, vertically polarized, omnidirectional base station and marine antenna which covers the 450 MHz band in three models.
  • The carefully designed, broadbanded ½ λ-dipole radiating element is made of brass tube and sealed in a high-quality conical glass fibre tube with low wind-load.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 70-1LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

Specifications

Electrical

  • Model CXL 70-1LW/...
  • Frequency 420 - 470 MHz
  • Antenna Type Coaxial dipole, broad-banded
  • Max. Input Power 200 W
  • Polarisation Vertical
  • Pattern Type Omnidirectional
  • 3 dB Beamwidth, E-Plane 80 °
  • 3 dB Beamwidth, H-Plane Omnidirectional
  • Impedance 50 Ω
  • Gain 0 dBd (2.2 dBi)
  • VSWR < 1.5:1
  • Bandwidth 50 - 60 MHz dep. of model
  • Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
  • HCM Code(s) HCM000ND00, 040DE00

Mechanical

  • Connection(s) N(f)
  • Materials Shroud: Polyurethane-coated glass fibre
  • Mounting bracket: Seawater resistant aluminium, epoxy-coated
  • Clamps: Stainless steel
  • Colour White (RAL 9003)
  • Wind Area 0.0192 sq. m / 0.21 sq. ft
  • Wind Load 24 N (160 km/h)
  • Dia. At Top End 12 mm / 0.47 in.
  • Dia. At Bottom End 16 mm / 0.63 in.
  • Height Approx. 680 mm / 26.77 in.
  • Weight Approx. 0.65 kg / 1.43 lb.
  • Mounting On 16 to 54 mm / 0.62 to 2.12 in. dia. mast tube

Environmental

  • Operating temperature range -35 °C to +70 °C
  • Survival Wind Speed 290 km/h
  • Ingress Protection IP66

Diagram and Mounting

Multi-purpose mounting bracket

Typical Gain and SWR curves

Typical radiation pattern (E-plane)

Typical radiation pattern (H-Plane)
