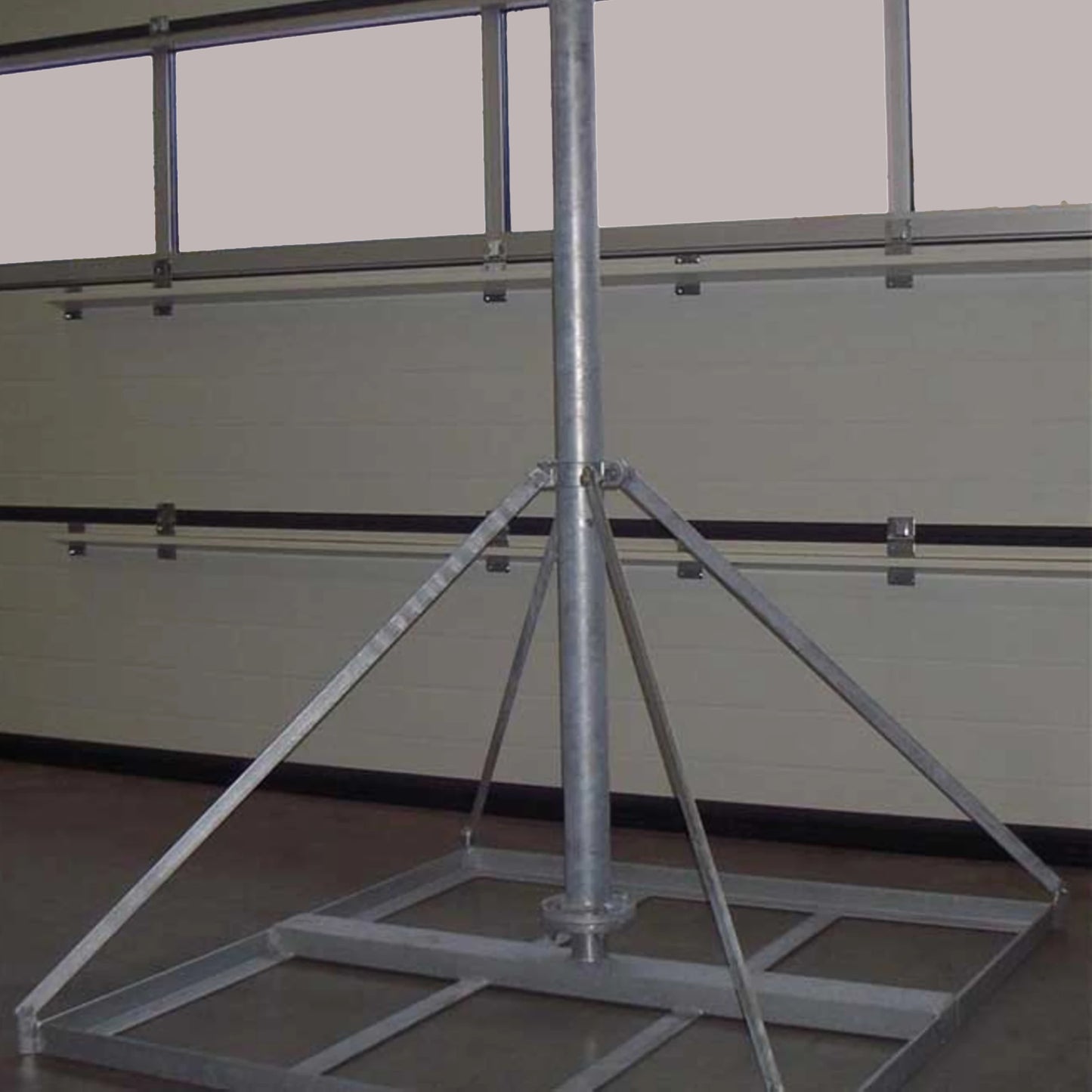

Heavy-Duty Ballast Frame for 60x40 cm Tiles and a Ø60.3 mm pole (4-6M)

The BFD6-60/40 is a reinforced ballast frame engineered to hold 6 or 12 concrete tiles of 60x40 cm, offering even more ballast weight for large or high-stress pole applications. Like the 50/50 variant, this frame uses industrial hot-dip galvanization for outstanding resistance to corrosion, wear, and extreme climates.

• Tile Support: 6 or 12 tiles of 60x40 cm (max. 12 mm thick)
• Frame dimensions:
  • 1300x1400mm
• Estimated Ballast Weight:
  • 6 tiles ≈ 150 kg
  • 12 tiles ≈ 300 kg
• Material: S235 thermisch gegalvaniseerd staal
  • Base plates: 5 mm and 10 mm steel
  • 4 diagonal braces of ~1 meter
• Pole Compatibility: Ø60.3 mm galvanized mast
• Use Case: Suited for larger setups requiring extra ballast stability—perfect for rooftop poles, point-to-point microwave links, or heavy-duty temporary masts

Built to last!
