Flat CCA Cable Red/Black 2 x 1.5 15A

Flat CCA Cable Red/Black 2 x 1.5 15A

€1,38 EUR
€1,38 EUR
Sale Sold out
Tax included.

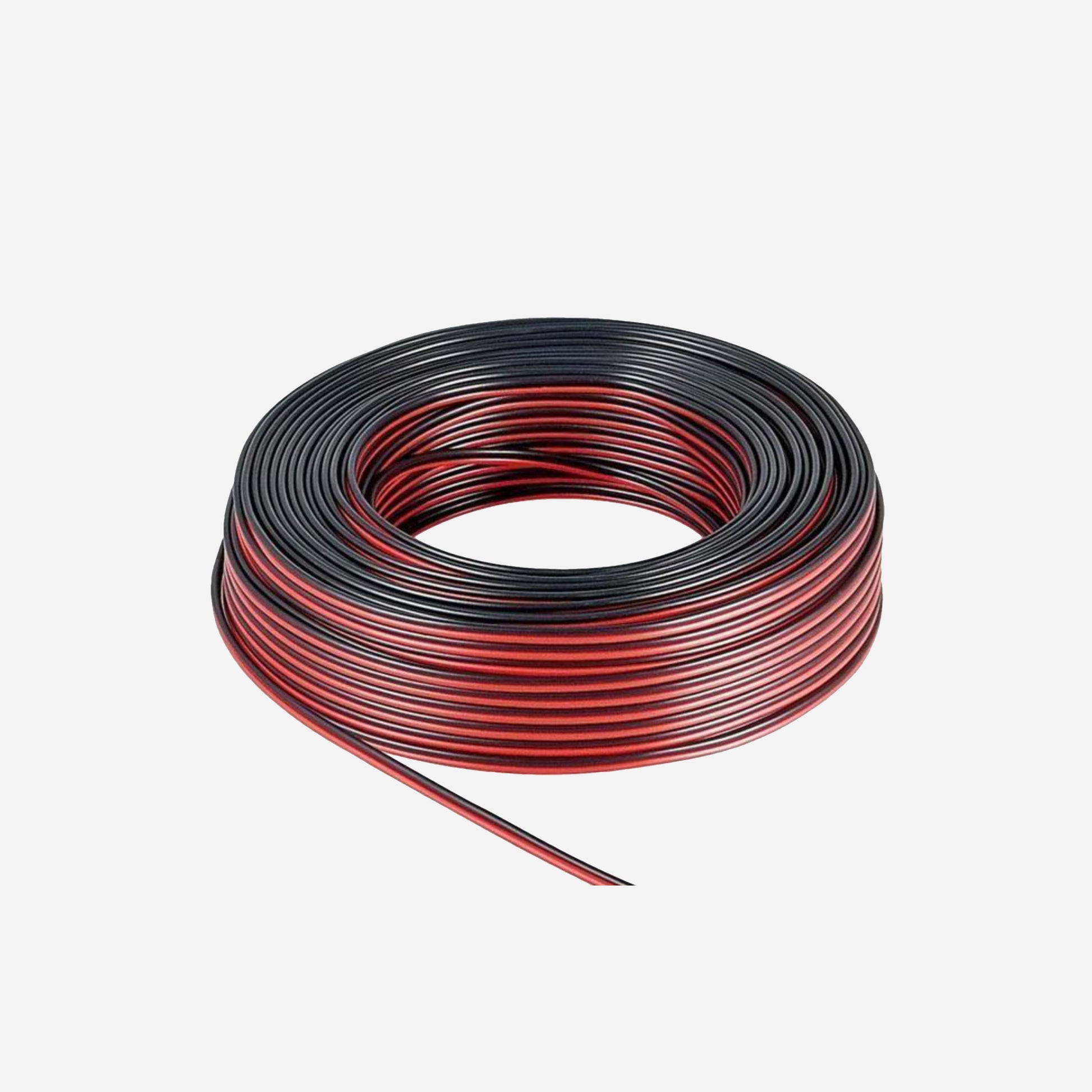

Flat CCA Cable — Red/Black 2 × 1.5 mm² (15 A)

Technical Overview: Flexible flat twin-core CCA (Copper-Clad Aluminum) power cable designed for 12–14.8 V DC systems. With 2 × 1.5 mm² conductors and a polarity-safe red/black jacket, it’s ideal for powering accessories, hotspots, and embedded gear up to 15 A.

Key Features

  • Flat twin-core: Red/black polarity-marked conductors
  • 2 × 1.5 mm²: Sized for low-to-medium current 13.8 V applications
  • CCA conductors: Lightweight, economical alternative to OFC
  • 15 A rating: Suitable for accessories and small rigs (fused)
  • Connector friendly: Works with PowerPole, ring/fork terminals, and barrier strips

CCA has higher resistance than pure copper. Keep runs short and fuse properly to limit voltage drop and heating.

Technical Specifications

  • Conductor material: Copper-Clad Aluminum (CCA)
  • Configuration: 2-core flat (red/black)
  • Cross-section: 2 × 1.5 mm²
  • Nominal current: up to 15 A (with correct fusing)
  • Jacket: Flexible PVC insulation
  • Voltage systems: 12–14.8 V DC (optimized for 13.8 V)

Application Notes

  • Short runs: Ideal for hotspots, mobile accessories, and embedded devices
  • Fuse at source: Always add an inline fuse matched to cable gauge
  • Installation: Crimp, solder, or PowerPole connectors with strain relief

Ordering & Pricing

Price per meter. Cable supplied in continuous length whenever possible.

Full coil/spool: Select quantity 100 to receive a 100 m spool.
