Hotspot Ultra-Low-Noise PSU Bundle

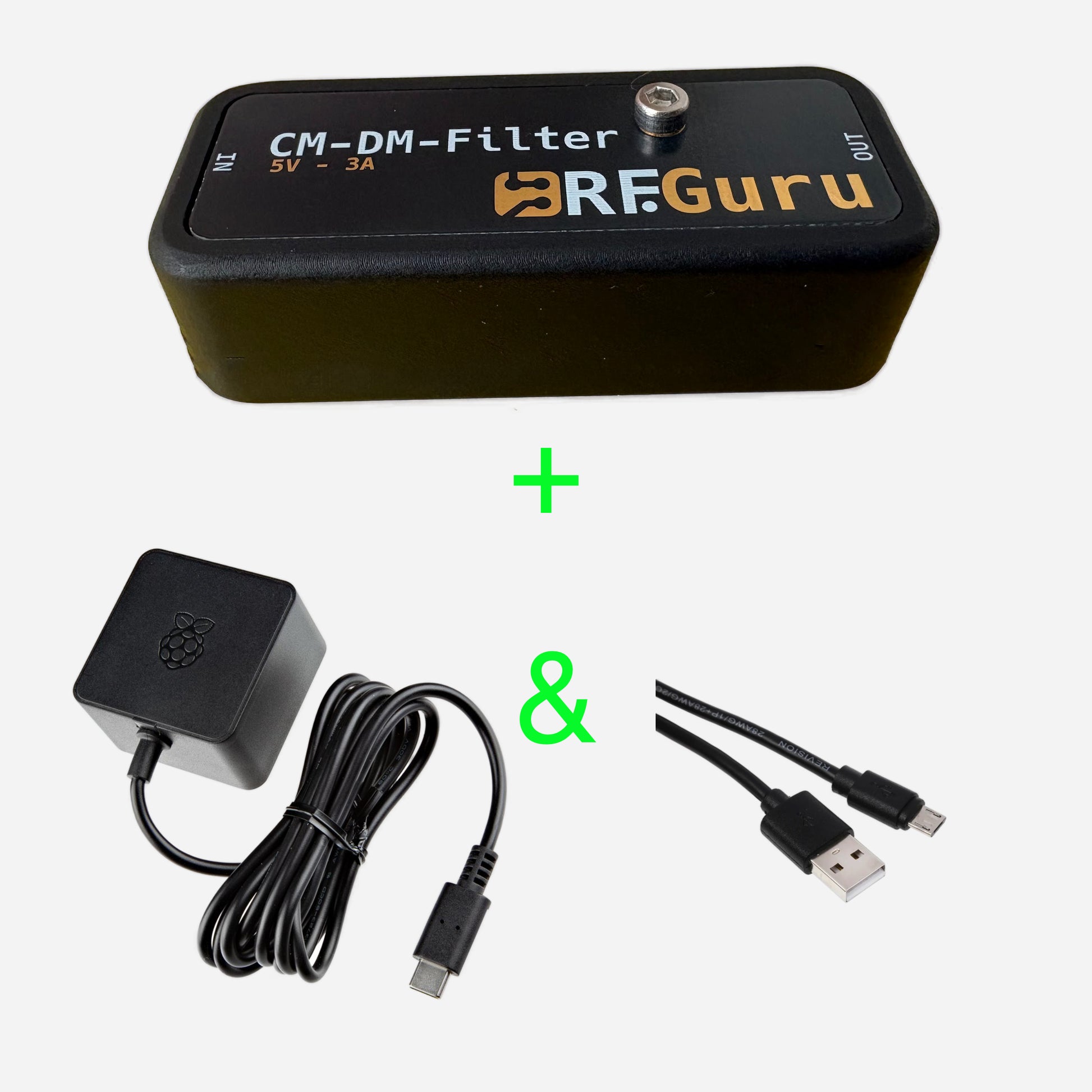

What’s Included

• USB-C to USB-A (Female) Ultra-Low-Noise Isolation Adapter: inline RF/EMI isolation and power-path filtering.
• Raspberry Pi USB-C 15 W power supply (no PD): stable 5 V output without USB-PD negotiation.
• Short USB-A to micro-USB cable: for connecting your hotspot cleanly with minimal cable length.

Key Features

• Cleaner 5 V rail for RF environments: reduces switching hash that often shows up as spurs, raised noise floor, or “mystery” interference.
• Inline isolation on the USB power path (EMI): multi-stage filtering targets multiple noise mechanisms, not just one.
• Transient and ESD resilience: the adapter clamps fast spikes before they reach your load.
• Common-mode + differential suppression: reduces both “between-the-wires” noise and noise riding on both conductors together.
• Controlled shield bleed: avoids a fully floating shield while preventing a hard bond that can re-inject noise via loops.
• Short cable strategy: keeping the device lead short reduces re-radiation and re-coupling near receivers.

How to Connect (Recommended)

• Step 1: Plug the USB-C power supply into mains and connect its USB-C output to your upstream USB-C input (or a suitable USB-C feed point).
• Step 2: Insert the USB-C to USB-A (Female) isolation adapter inline on the 5 V path (close to the power source is ideal).
• Step 3: Use the included short USB-A to micro-USB cable from the adapter output to the hotspot.

(Tip: place the isolation adapter close to the USB power source to stop noise early, and keep the downstream cable as short as practical.)

How It Works (Isolation Adapter Summary)

The isolation adapter uses several isolation “layers” in series. Each layer targets a different noise mechanism, so the combined result is stronger than any single filter stage.

• Input surge clamp + local decoupling: fast transients are clamped and short current spikes are buffered locally.
• High-frequency impedance step: adds attenuation at RF so digital edge energy doesn’t travel down the cable.
• Common-mode suppression on power + return: impedes noise riding on both conductors together (a major wideband RFI path).
• Differential low-pass smoothing: filters ripple and switching artifacts on the 5 V rail.
• Output-side “last barrier” filtering: residual noise is shunted locally at the output instead of being exported to the load.
• Controlled shield bleed network: prevents a floating shield from charging up while avoiding a hard shield-to-ground bond that can form noise loops.

Recommended Use Cases

• VHF/UHF hotspots and digital voice nodes
• Hotspot + single-board-computer setups where USB power noise impacts RF behavior
• USB-powered RF accessories used near receivers
• Any station where “USB power” has become a noise source

Compatibility Notes

• No-PD supply (included): provides a straightforward 5 V output without USB-PD negotiation, which keeps behavior predictable for RF loads.
• If you use other USB-C sources: ensure they deliver default 5 V output (or use a proper upstream trigger), otherwise some PD-only sources may not power up as expected.
• Cable fit: the included device cable is USB-A to micro-USB. If your device uses USB-C, simply use your own short USB-A to USB-C cable on the output side.

Technical Specifications

• Power Source: 5 V USB-C supply (included, non-PD)
• Isolation Stage: inline USB power-path filtering + EMI isolation (USB-C to USB-A Female)
• Device Cable: short USB-A to micro-USB (for hotspot connection)
• Purpose: conducted-noise suppression + reduced shield/ground coupling in RF-sensitive environments
