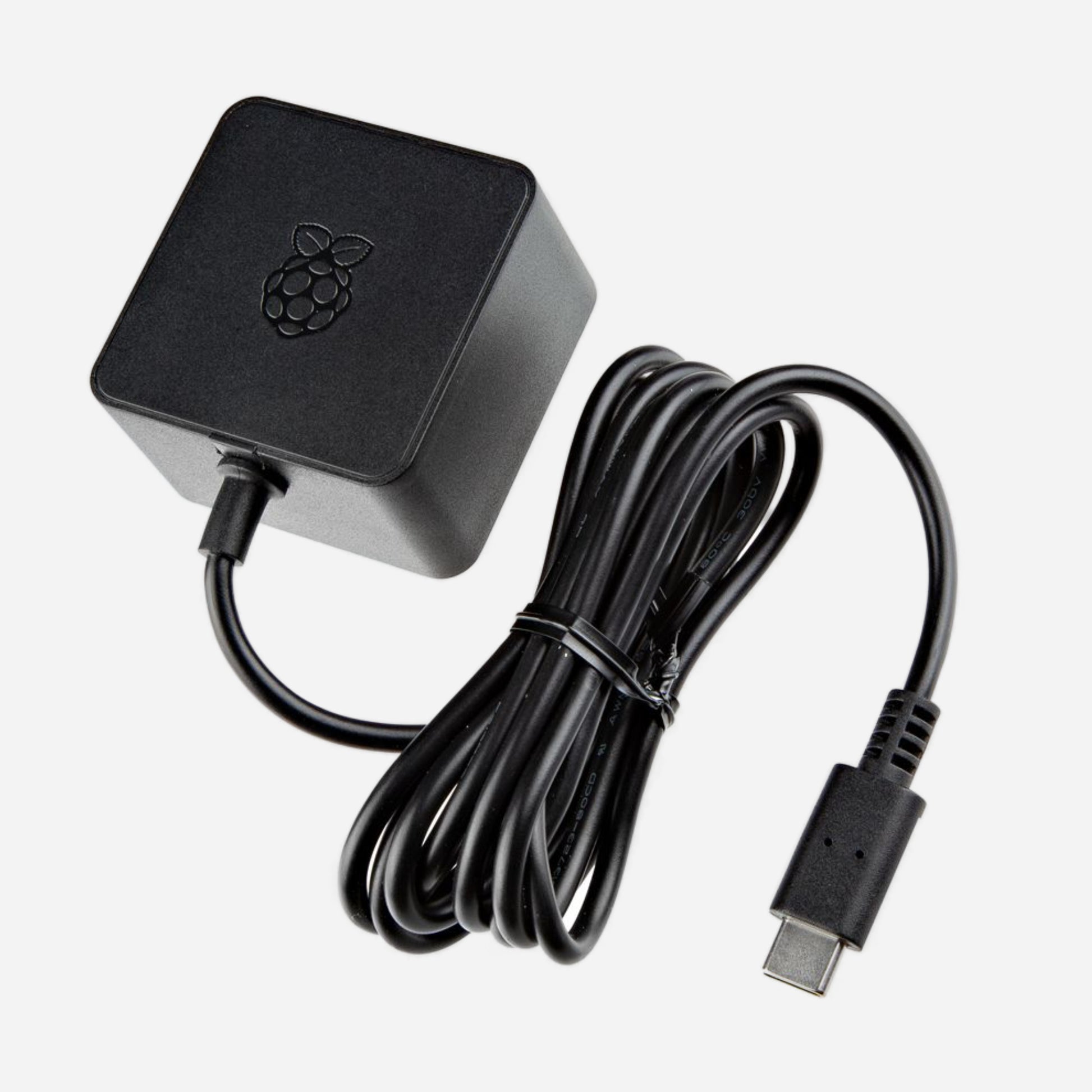

Raspberry Pi 15W USB-C Power Supply (Black, EU)

Raspberry Pi 15W USB-C Power Supply (Black, EU)

€8,82 EUR
€8,82 EUR
Sale Sold out
Tax included.

Official, stable 5.1 V power for Raspberry Pi 4 / 400.
This official Raspberry Pi 15W USB-C power supply is designed to deliver the current headroom a Pi needs under real load, with a 5.1 V / 3.0 A output and a 1.5 m captive USB-C cable. It’s a solid choice for Raspberry Pi builds used as hotspots, gateways, SDR helpers, and other always-on shack utilities.

SKU / Product code: KW-2505 (Black, EU plug)
Important: This is NOT USB-C Power Delivery (PD) and NOT Quick Charge. Output is fixed at 5.1 V.

Included

  • Official Raspberry Pi 15W USB-C power supply (Black, EU plug)
  • Fixed (captive) USB-C cable — 1.5 m

What It Is (and Isn’t)

This supply is built to reliably power Raspberry Pi 4 and Raspberry Pi 400 with a stable 5.1V / 3A rail and standard safety protections (short-circuit, over-current, over-temperature).

It does not negotiate USB-C PD voltages (9V/12V/15V). If your project needs PD or you’re powering a Raspberry Pi 5 with high-power peripherals, use the 27W USB-C PD model instead.

* For RF installations: keep the USB-C cable away from feedlines and high-field areas. If needed, add ferrites on the DC cable near the load to reduce cable-borne RF pickup.

Features

  • Stable 5.1 V output — designed for Raspberry Pi loads
  • 3.0 A continuous (15W class)
  • EU plug (Type-C)
  • Captive 1.5 m USB-C cable
  • Built-in protection: short-circuit / over-current / over-temperature
  • Low standby power for 24/7 operation

Specs at a Glance

Parameter Specification
SKU / Product Code KW-2505
Output Voltage 5.1 V DC (fixed)
Output Current 3.0 A
Output Power 15 W class
USB-C Power Delivery (PD) No (no PD negotiation)
AC Input Voltage Range 100 – 240 VAC
AC Input Frequency 50 – 60 Hz
No-Load Power Consumption < 0.075 W
Output Connector USB-C (captive cable)
Cable Length 1.5 m
Color Black
Plug Type EU (Type-C)

Typical Uses

  • Raspberry Pi 4 / Raspberry Pi 400 projects
  • Pi-based hotspots, gateways, and station helpers
  • Small always-on shack servers (logging, monitoring, APRS, dashboards)
  • Stable 5V power for embedded projects that truly need 3A headroom

* If you need USB-C PD profiles (9V/12V/15V) or you’re powering a Raspberry Pi 5 with power-hungry USB peripherals, use the Raspberry Pi 27W USB-C PD power supply instead.

Mini-FAQ

  • Is this USB-C Power Delivery (PD)? — No. Output is fixed at 5.1 V (no PD/QC negotiation).
  • What Raspberry Pi models is it intended for? — Primarily Raspberry Pi 4 and Raspberry Pi 400.
  • Can I run it 24/7? — Yes. It’s designed for continuous operation with low standby consumption.
  • Will it reduce RF noise? — It’s a quality PSU, but RF results still depend on cable routing and the overall station environment. Add ferrites if needed.
  • Do I need a separate USB cable? — No. It has a captive (fixed) USB-C cable.
