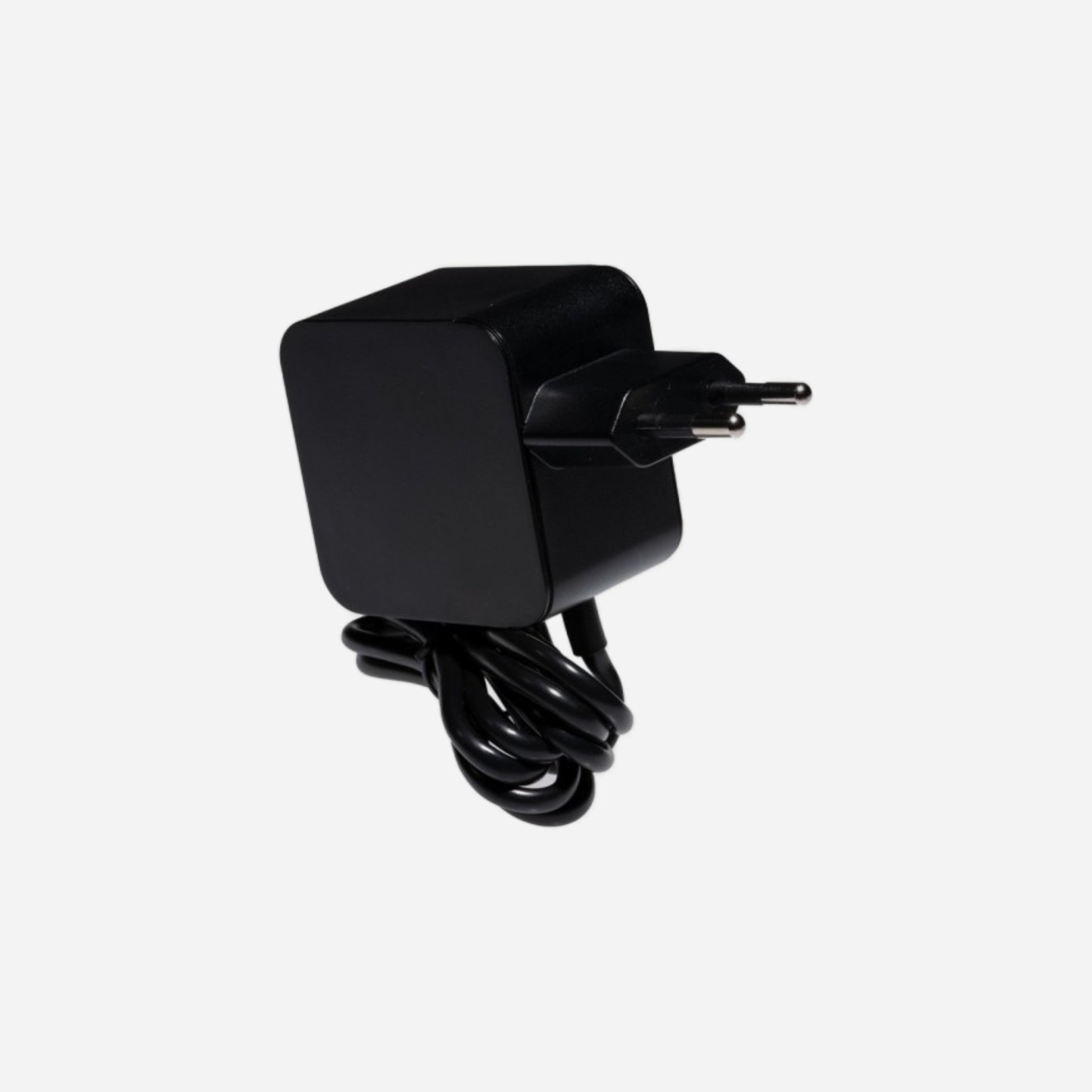

Raspberry Pi 27W USB-C Power Supply (Black, EU) for the Pi5

Raspberry Pi 27W USB-C Power Supply (Black, EU) for the Pi5

€13,18 EUR
€13,18 EUR
Sale Sold out
Tax included.

Official 5.1 V / 5 A power for Raspberry Pi 5.
The official Raspberry Pi 27W USB-C Power Supply gives Raspberry Pi 5 the power headroom it needs for demanding workloads and higher-power USB peripherals. This black EU version combines a 5.1 V / 5 A Raspberry Pi profile with a captive 1.2 m, 17 AWG USB-C cable and additional fixed USB Power Delivery profiles for compatible devices.

Official Raspberry Pi product: Black, EU plug (Type C)
EAN: 5056561803418
The Raspberry Pi 5 profile supplies 5.1 V / 5 A, or 25.5 W. The advertised 27 W maximum is available through the 9 V, 12 V, and 15 V USB-PD profiles.

Included

  • 1× Official Raspberry Pi 27W USB-C Power Supply (Black, EU plug)
  • Captive USB-C cable — 1.2 m, 17 AWG

Why Raspberry Pi 5 Benefits from 5 A

Raspberry Pi 5 can boot from a suitable 5 V / 3 A supply, but it then limits the total current available to downstream USB peripherals to 600 mA. When the official 5 A supply is detected, the higher USB current limit is enabled automatically, allowing up to 1.6 A for connected USB devices.

This provides useful headroom for equipment such as USB SSDs, hard drives, SDR receivers, and other higher-current peripherals. The power budget is shared with the fan header, so the total connected load still matters.

USB-PD negotiation selects the correct profile. The supply does not force 9 V, 12 V, or 15 V into a Raspberry Pi 5; the Pi requests its appropriate 5.1 V profile.

Features

  • Designed for Raspberry Pi 5 — official recommended power supply
  • 5.1 V / 5 A output profile — 25.5 W available to Raspberry Pi 5
  • Up to 27 W USB-C Power Delivery for compatible equipment
  • Additional fixed PD profiles: 9 V / 3 A, 12 V / 2.25 A, and 15 V / 1.8 A
  • Captive 1.2 m, 17 AWG USB-C cable — no separate cable required
  • Universal 100–240 V AC input for 50–60 Hz mains
  • Black enclosure with EU Type-C plug
  • Low no-load consumption — 0.1 W

Specs at a Glance

Parameter Specification
Product Official Raspberry Pi 27W USB-C Power Supply
Primary Application Raspberry Pi 5
USB-PD Output Profiles 5.1 V / 5 A; 9 V / 3 A; 12 V / 2.25 A; 15 V / 1.8 A
Maximum Output Power 27 W
Raspberry Pi 5 Output 5.1 V / 5 A (25.5 W)
AC Input Voltage Range 100–240 V AC
AC Input Frequency 50–60 Hz
Average Active Efficiency 89.0%
Efficiency at 10% Load 87.9%
No-Load Power Consumption 0.1 W
Output Connector USB-C (captive cable)
Cable 1.2 m, 17 AWG
Color Black
Plug Type EU Type C
EAN 5056561803418

Typical Uses

  • Raspberry Pi 5 systems with USB SSDs, hard drives, or other higher-current peripherals
  • Pi-based hotspots, gateways, controllers, dashboards, and station helpers
  • SDR and radio-related Raspberry Pi projects requiring stable power
  • Always-on home-lab, monitoring, automation, and embedded applications
  • Other USB-PD devices compatible with one of the listed fixed-voltage profiles

RF note: As with any switched-mode power supply, station noise performance also depends on cable routing, grounding, equipment layout, and antenna proximity. Keep the power lead away from feedlines and high-field areas; add suitable ferrite suppression if your installation requires it.

Mini-FAQ

  • Is this the recommended supply for Raspberry Pi 5? — Yes. This is the official Raspberry Pi 27W USB-C Power Supply and provides the recommended 5.1 V / 5 A mode.
  • Why is it called 27 W when the Pi receives 25.5 W? — The Raspberry Pi 5 profile is 5.1 V × 5 A, or 25.5 W. The other fixed PD profiles can deliver the full 27 W.
  • Does it increase the Pi 5 USB power budget? — Yes. When the 5 A supply is detected, Raspberry Pi 5 can raise the total downstream USB peripheral-current limit from 600 mA to 1.6 A. The available budget is shared with the fan header.
  • Will it send a higher voltage to Raspberry Pi 5? — No. USB Power Delivery negotiates the appropriate voltage before it is applied. Raspberry Pi 5 uses the 5.1 V profile.
  • Can it power other USB-C devices? — Yes, provided the device is compatible with one of the listed fixed USB-PD profiles.
  • Do I need a separate USB-C cable? — No. A 1.2 m captive USB-C cable is permanently attached.
