Raspberry Pi Zero WH (with header)

Raspberry Pi Zero WH (with header)

€14,90 EUR
€17,90 EUR €14,90 EUR
Sale Sold out
Tax included.

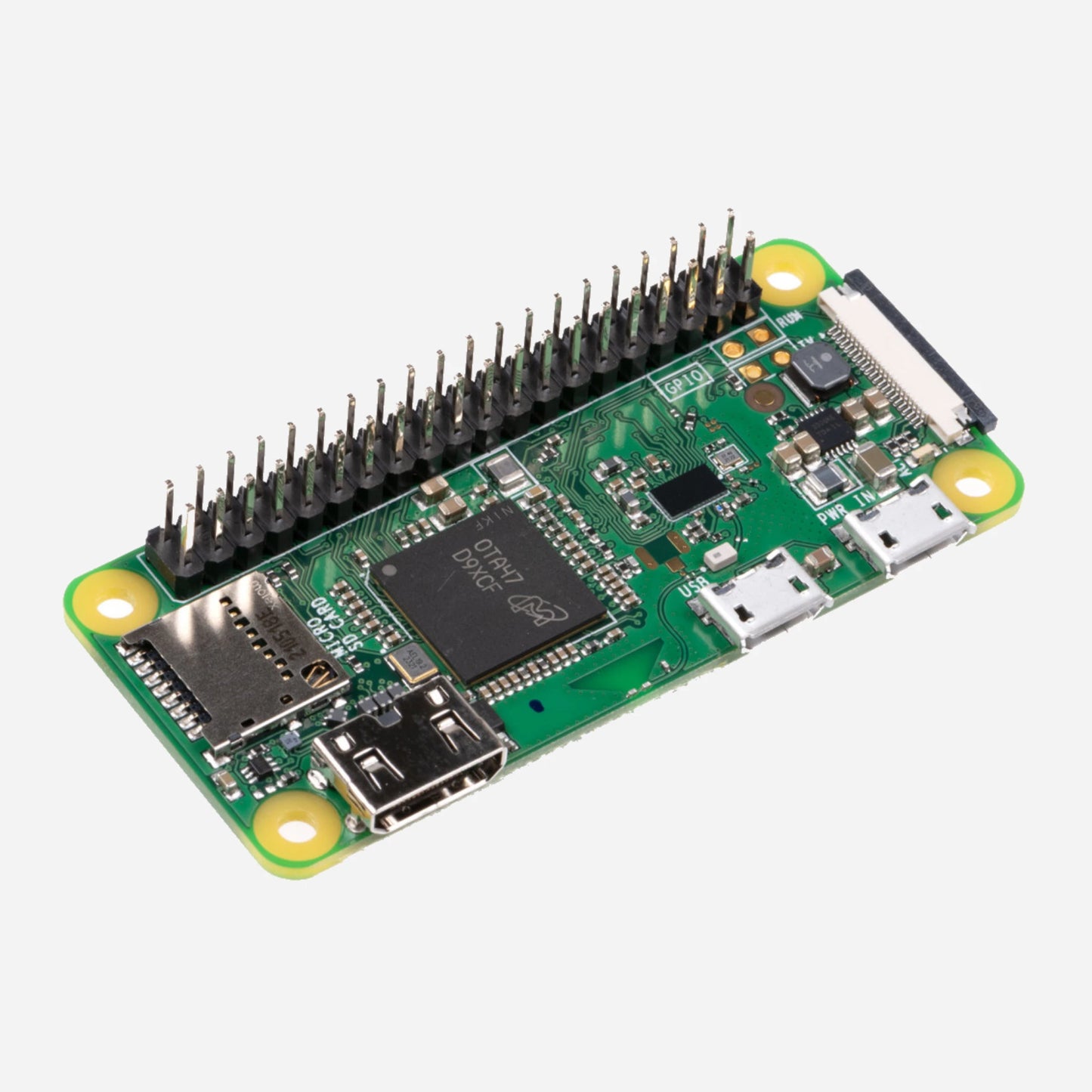

Raspberry Pi Zero WH (with Pre-Soldered Header)

The classic Raspberry Pi Zero WH adds a factory pre-soldered 40-pin header for instant HAT/pHAT use. Its ultra-compact form factor is perfect for hotspots, APRS/iGates, lightweight SDR control, sensors and station automation where low power and small size matter.

Key Specs
  • SoC: Broadcom BCM2835 @ ~1 GHz
  • Memory: 512 MB
  • Wireless: 2.4 GHz 802.11 b/g/n Wi-Fi, Bluetooth 4.1, BLE
  • Video: mini-HDMI
  • USB: micro-USB for data (OTG) + micro-USB for power
  • Storage: microSD
  • Camera: mini CSI connector
  • GPIO: 40-pin header pre-soldered
  • Size: 65 × 30 × 5 mm

What’s Included

  • Raspberry Pi Zero WH board
  • Factory-installed 40-pin header

Great For

  • Compact APRS/iGate nodes and beacon projects
  • Hotspots and low-duty digital mode helpers
  • Lightweight SDR control and monitoring
  • Station automation, sensors, and telemetry
Zero-Only Power Options (13.8 V shack → clean 5 V)

Tip: Keep leads short and add ferrite chokes on power/USB to minimize conducted and radiated noise in RF environments.

Compatibility Notes

  • Pre-soldered header makes it plug-and-play with most pHATs/HATs sized for the Zero footprint.
  • Use a quality OTG adapter for USB devices (e.g., SDR sticks) and consider ferrites on cables.
  • For 24/7 nodes, prefer shack-power solutions above instead of generic wall-warts.
