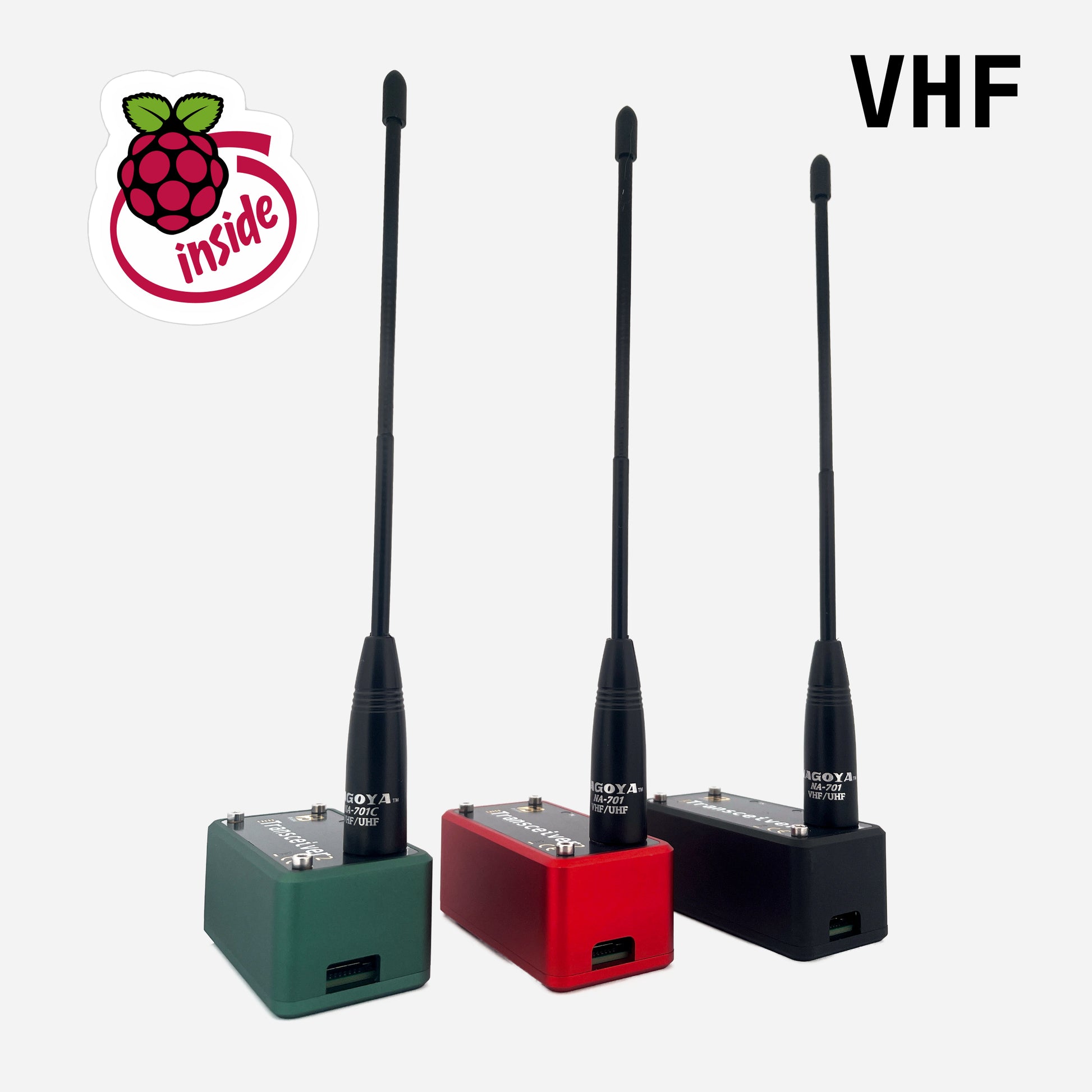

• Transceiver2 VHF

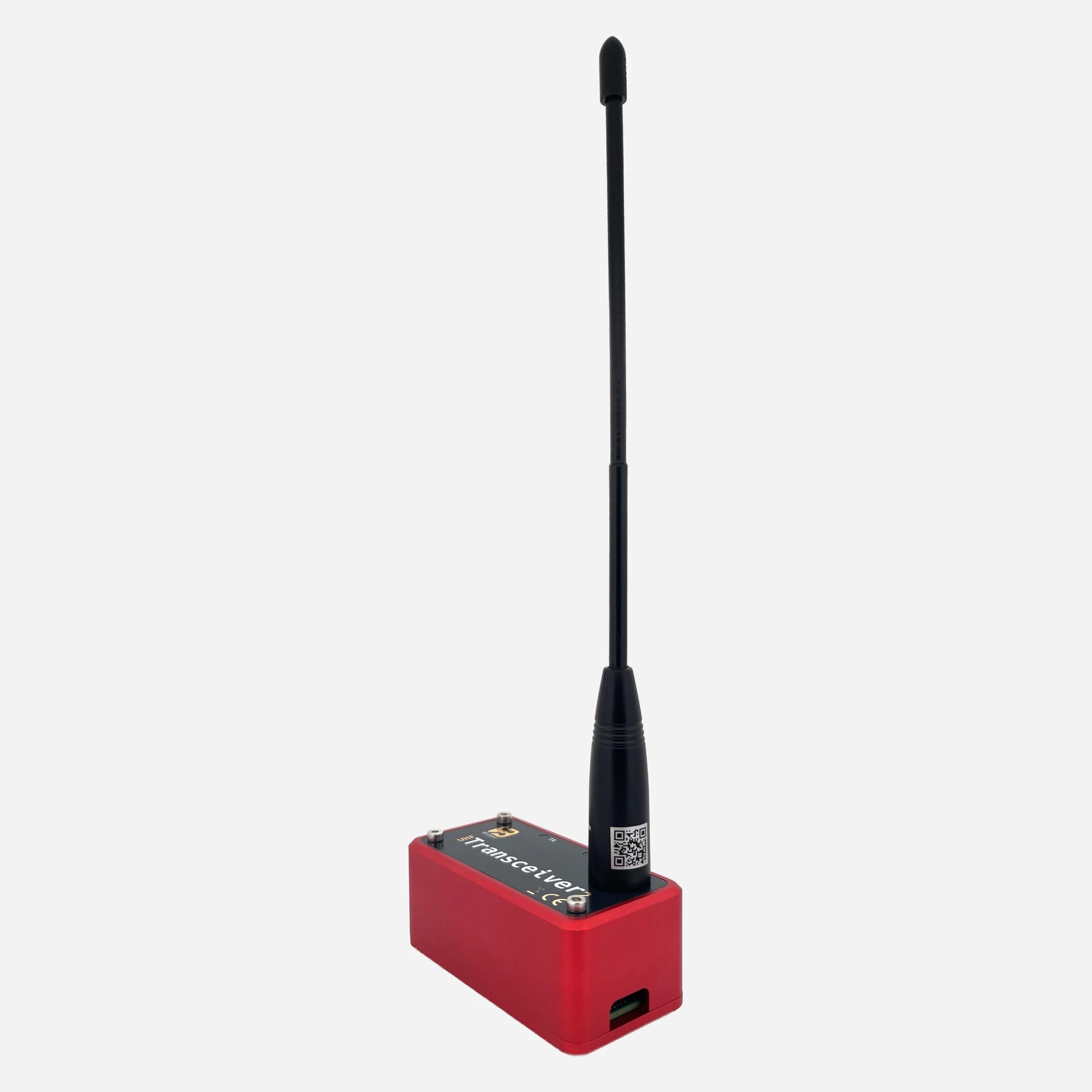

  • A compact device housed in a red aluminium enclosure, featuring a UHF antenna, designed to function as an EchoLink/SVXLink analog transceiver.

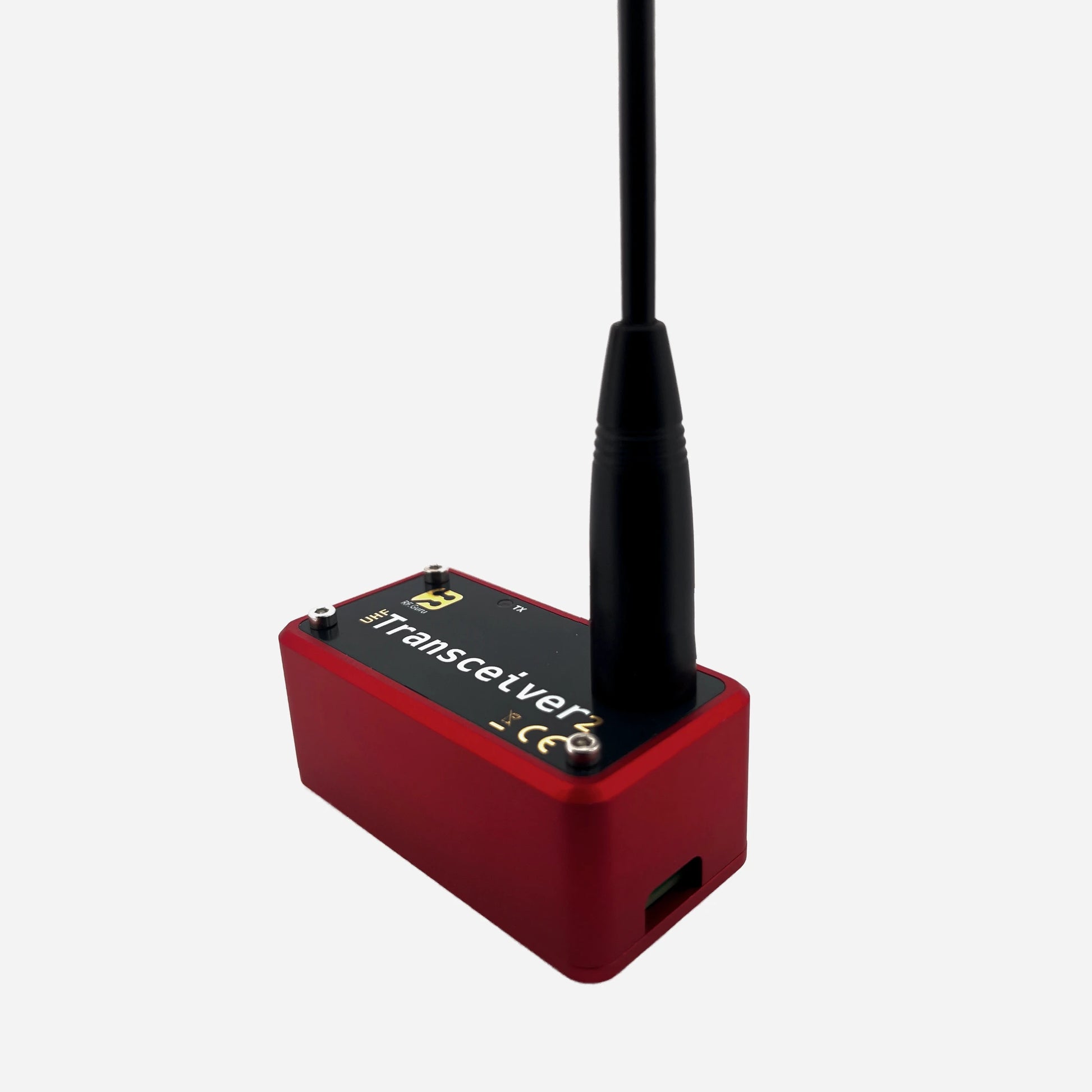

  • A compact device housed in a red aluminium enclosure, featuring a UHF antenna, designed to function as an EchoLink/SVXLink analog transceiver.

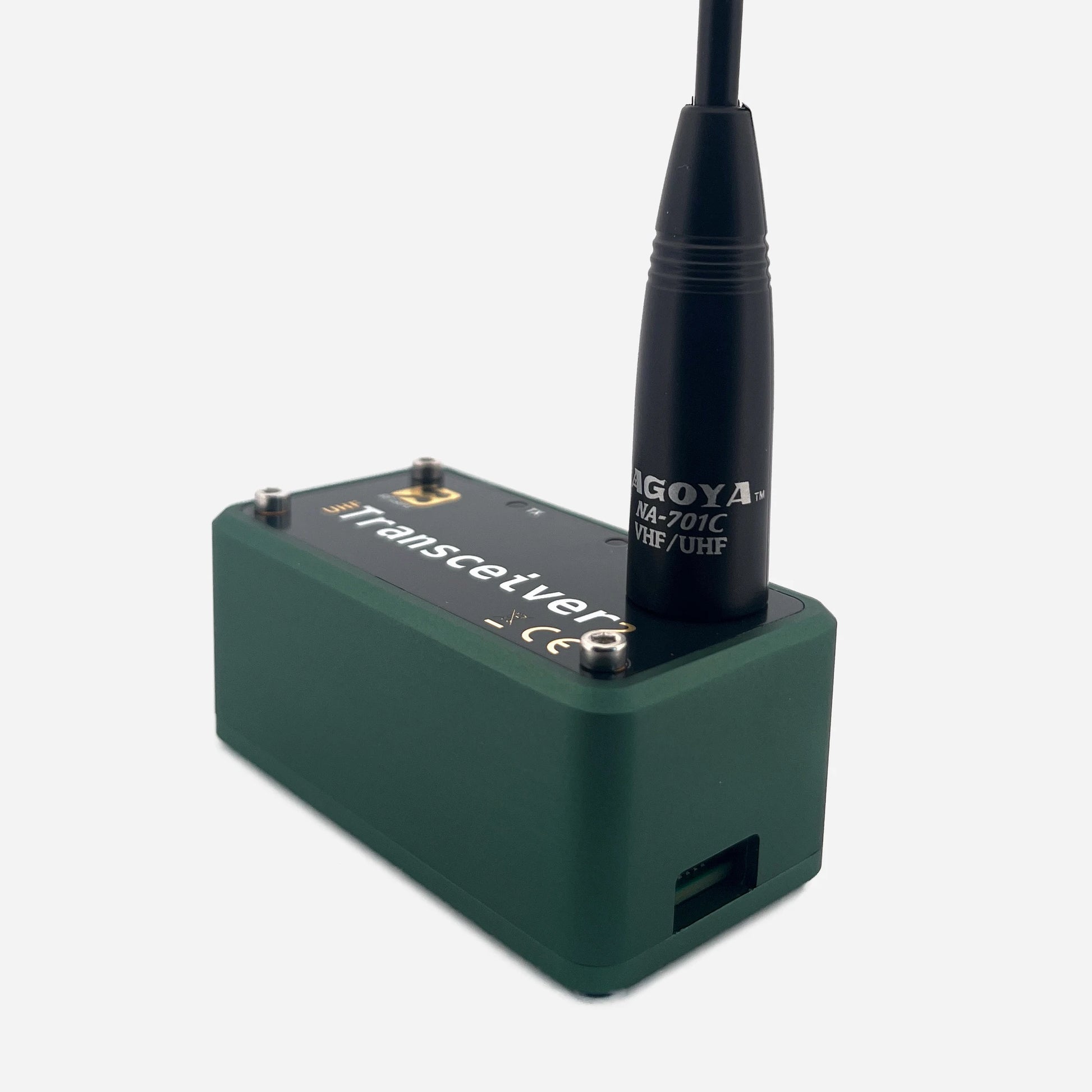

  • A compact device housed in a dark green aluminium enclosure, featuring a UHF antenna, designed to function as an EchoLink/SVXLink analog transceiver.
  • A compact device housed in a black aluminium enclosure, featuring a UHF antenna, designed to function as an EchoLink/SVXLink analog transceiver.
1 5

RF Guru

SVXLink Analog Transceiver2 2m VHF 500mW CE

SVXLink Analog Transceiver2 2m VHF 500mW CE

€199,00 EUR
€199,00 EUR
Sale Sold out
Tax included.
Colour
Now CE Certified — Fully tested and certified for safety, quality, and compliance.
Download CE Certificate (PDF)

SVXLink Analog Transceiver2 — Raspberry Pi Zero 2 W Bundle

Experience the power of the SVXLink Analog Transceiver2, a cutting-edge HAT designed exclusively for the Raspberry Pi Zero. Equipped with a high-performance VHF 2 m band radio module, this versatile device supports EchoLink/SVXLink analog hotspots, analog simplex repeaters, and APRS digipeaters.

Specs at a Glance

Feature Specification
Frequency Range 134–174 MHz (VHF 2 m band)
Output Power 27 dBm (≈ 500 mW)
RX Sensitivity −104 dBm (12 dB SINAD)
Bandwidth 12.5 / 25 kHz
Stability 1 ppm KDS TCXO
Audio Wolfson WM8960 ADC / 1 W DAC @ 48 kHz
Power Consumption 220 mA RX / 370 mA TX (with Pi Zero W)
Compliance CE Certified, −53.07 dBc harmonics

Included in the Bundle

Also Available as a PCB

View PCB-Only Version

Key Features

  • Raspberry Pi pin-compatible HAT
  • PCB ENIG (Electroless Nickel Immersion Gold)
  • Independent Tx/Rx frequency, CTCSS, and CDCSS settings
  • Signal/Tone LED and TX/PTT LED indicators

Power Consumption with Raspberry Pi Zero W

  • Receive mode: 220 mA
  • Transmit mode: 370 mA

Software

SVXLink Bookworm Image
SVXSpot Repository
SVXSpotMain Repository

Performance & Compliance

All measurements conducted with a calibrated Vector Network Analyzer (VNA) and 36 dB attenuator. Worst-case harmonic: −53.07 dBc (2nd harmonic), comfortably exceeding ETSI EN 300 220 CE RED requirements. This provides an extra safety margin of over 10 dB.

The spectrum confirms excellent spurious emission suppression and clean transmission within 12.5 kHz bandwidth. Compared to leading brands (Kenwood, Icom, Yaesu), our module delivers equal or superior spectral purity, placing it in the same performance league as established commercial radios.

Measurements

Spectrum

SVXLink Transceiver2 Spectrum

Harmonics

SVXLink Transceiver2 Harmonics

Channel Power

SVXLink Transceiver2 Channel Power

Mini‑FAQ

  • Is it CE certified? — Yes. Fully CE certified. See the certificate link at the top of this page.
  • Which bands/modes are supported? — VHF 134–174 MHz, FM (12.5/25 kHz). Ideal for EchoLink/SVXLink hotspots, simplex repeaters, and APRS.
  • Digital networks? — Yes via software: pair SVXLink with AnalogBridge (DVSwitch) to access BrandMeister and OpenDMR.
  • Output power? — 27 dBm (~500 mW). Use a suitable external antenna for best range.
  • Expected range? — Depends on antenna, height, terrain, and local noise. A rooftop antenna dramatically improves coverage.
  • Power draw? — ~220 mA RX / ~370 mA TX (with Pi Zero W). Use a stable 5 V supply.
  • APRS? — Yes. Works as an APRS (2 m) digipeater with appropriate software setup.
  • Pi compatibility? — Designed for Raspberry Pi Zero (pin‑compatible HAT). Requires Linux with SVXLink stack.
