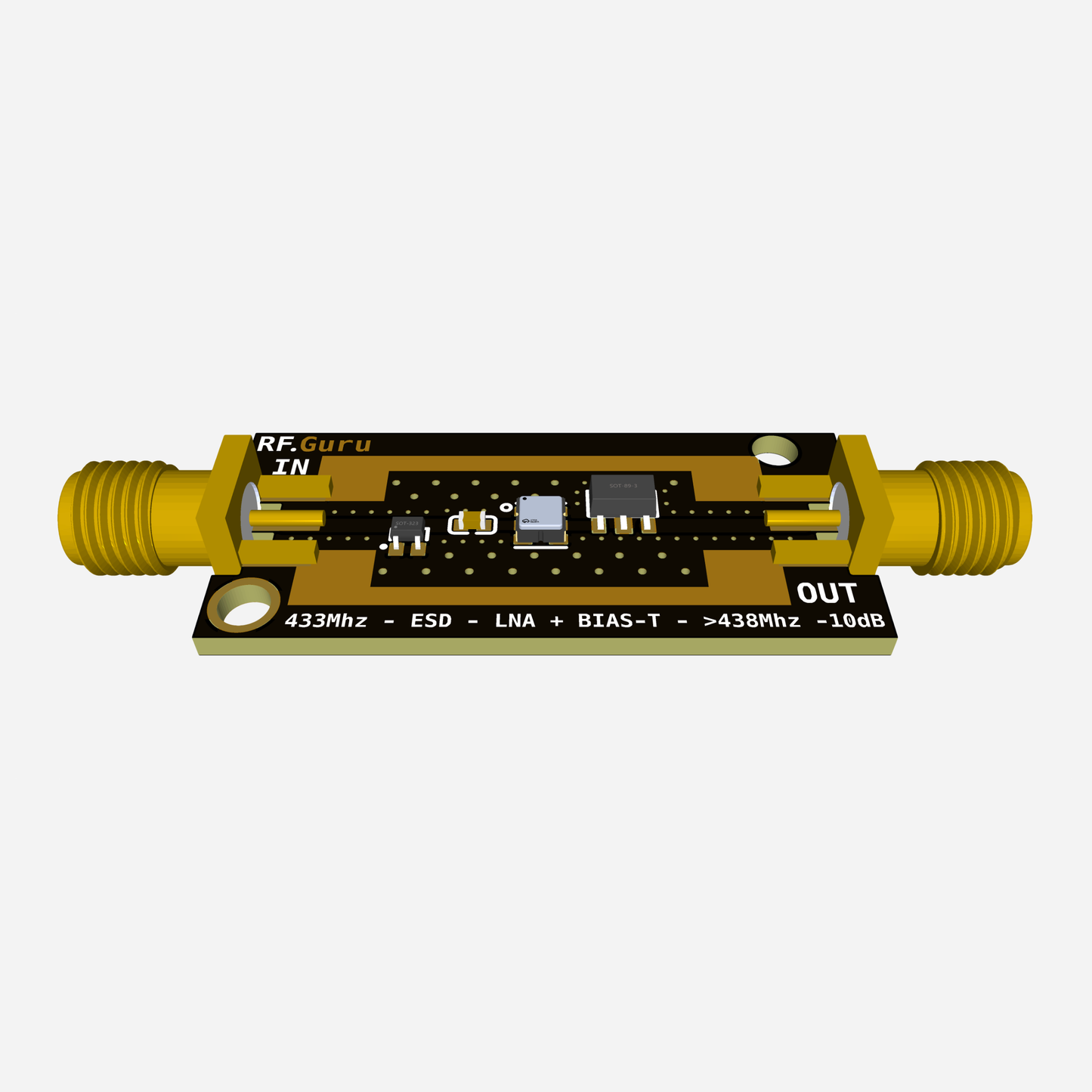

ESD Protected LNA for 433 MHz (LoRa APRS) + 18dB Gain

ESD Protected LNA for 433 MHz (LoRa APRS) + 18dB Gain

Regular price €49,50 EUR
Regular price Sale price €49,50 EUR
Sale Sold out
Tax included.

ESD-Protected LNA for 433 MHz (LoRa APRS) — +18 dB Gain with SAW Filtering

High-performance Low Noise Amplifier (LNA) optimized for 433 MHz applications such as LoRa APRS. Integrates robust ESD protection and a SAW band-pass filter (B39431B3710U410) for strong out-of-band rejection and clean reception in noisy RF environments.

Specs at a Glance

Parameter Specification
Center Frequency 433 MHz (ISM band)
Gain ≈ 18 dB
Noise Figure ≈ 0.6 dB (typ.)
Linearity IP3 > 41 dBm
P1dB ≈ 22.5 dBm
Front-End Filter SAW B39431B3710U410 (band-pass)
Power 5 V / 3 V via Bias-T (remote injection)
Protection ESD input protection + RF input protection

Key Features

  • Operating Frequency: 433 MHz (optimized for LoRa APRS and ISM-band receivers)
  • Amplifier IC: Mini-Circuits PGA-103+
  • Gain: ~18 dB for strong link-budget improvement
  • Ultra-Low NF: ~0.6 dB for minimal system noise temperature
  • High Linearity: IP3 > 41 dBm to resist desense from nearby transmitters
  • P1dB: ~22.5 dBm for robust headroom
  • Integrated SAW Filter: B39431B3710U410 for superior selectivity and out-of-band rejection
  • Bias-T Power: 5 V or 3 V via coax (no extra power wires)
  • ESD Protection: Built-in safeguards on the RF input

Additional Resources

Ideal where low noise, moderate gain, and excellent selectivity are required — from 433 MHz LoRa APRS iGates and receiver front-ends to general ISM-band monitoring. For best noise performance, mount the LNA as close to the antenna as practical.

Rejection vs Gain

SAW+LNA S21 Rejection vs Gain at 433 MHz

Mini-FAQ

  • Do I need a Bias-T? — Yes. The LNA is powered over the coax (5 V or 3 V). If your receiver lacks Bias-T, use an external injector.
  • Where should I place it? — As close to the antenna as possible to minimize pre-LNA cable loss and improve system NF.
  • Will strong nearby transmitters overload it? — The LNA is high-linearity (IP3 > 41 dBm) and filtered, but very strong signals may require extra filtering or separation.
  • Is the input protected? — Yes. ESD protection is included on the RF input.
  • Can I use it beyond 433 MHz? — The SAW filter is centered for 433 MHz. Usable bandwidth is narrow; for wideband work, use the non-filtered LNA version.
