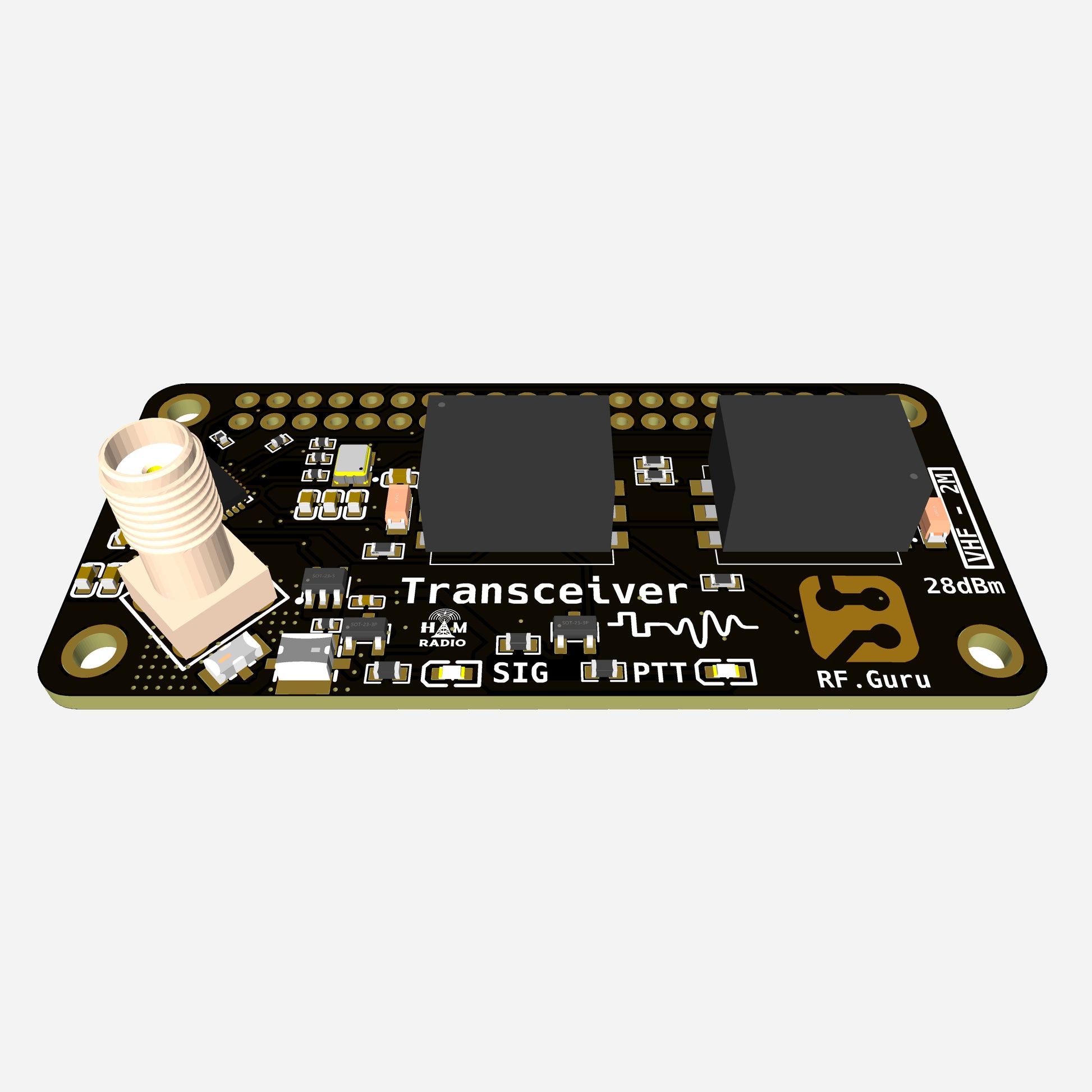

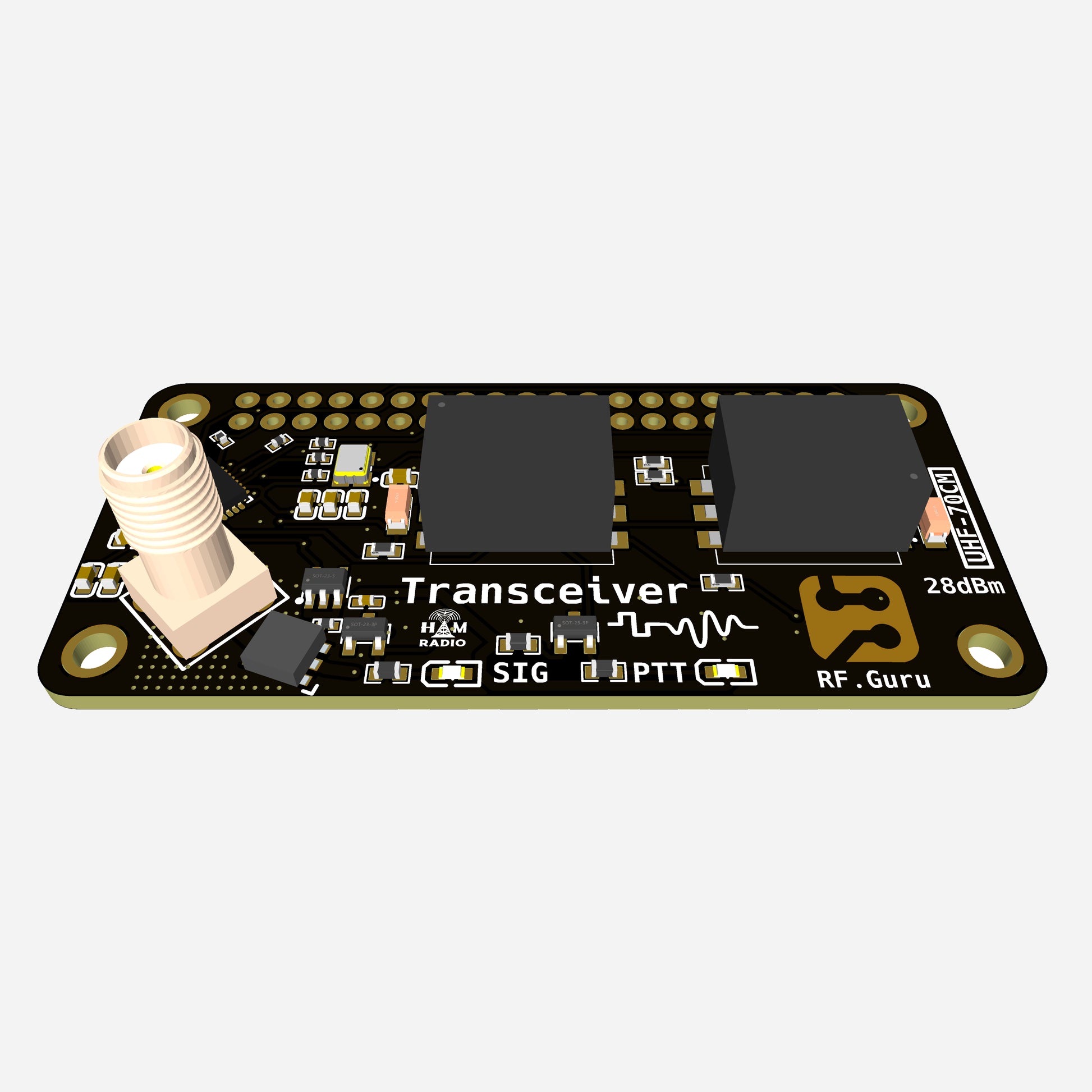

Analog Transceiver - HotSpot PCB 70cm UHF|VHF 500mW|2W - 4th generation

Analog Transceiver - HotSpot PCB 70cm UHF|VHF 500mW|2W - 4th generation

Regular price €153,00 EUR
Regular price Sale price €153,00 EUR
Sale Sold out
Tax included.
Power
Band
Handmade in Belgium. Fulfilment times may vary depending on order volume. Please allow 1–2 weeks for assembly and shipping. If you would like a more precise estimate, feel free to contact us before ordering.

Analog Transceiver PCB

Available in UHF and VHF, with a choice of 500 mW or 2 W output power. Select your band and power version above.

The Analog Transceiver PCB is now in its 4rd generation, featuring a redesigned power stage, improved filtering, and a more robust enclosure. We added additional DC-line filtering to eliminate noise sources, improved the thermal design and increased the output power to 500 mW (27 dBm) or 2 W (33 dBm).

Thanks to its Texas Instruments TLV320AIC3204IRHBR audio codec (ADC/DAC), it runs flawlessly as an EchoLink / SVXLink analog hotspot.

* The 500 mW output-power versions are CE marked; the 2 W versions are not CE marked. CE-RED documentation applies only to the 500 mW versions.

* Currently only an SVXLink Bookworm image is available for SVXLink and EchoLink.

What’s New in the 4rd Generation

  • Improved DC filtering — additional LC filtering stages drastically reduce noise and ripple on the power line.
  • Reinforced RF chain — cleaner TX signal, improved stability, and excellent spurious suppression.
  • Higher output power — increased to 500 mW (27 dBm) or 2 W (33 dBm) for improved range and more reliable linking.
  • Band-pass filter topology instead of the hotspot low-pass stage

Specs at a Glance

Feature Specification
Frequency Range VHF: 134–174 MHz
UHF: 400–480 MHz
Both bands available in 500 mW and 2 W versions.
Output Power 500 mW (27 dBm) or 2 W (33 dBm)
RX Sensitivity UHF: −124 dBm @ 12 dB SINAD
Bandwidth 12.5 kHz / 25 kHz
Clock Stability 1 ppm KDS TCXO
Audio Codec Texas Instruments TLV320AIC3204IRHBR audio codec (ADC/DAC)
Compliance 500 mW: CE marked (UHF worst-case spurious −86.23 dBc); 2 W: not CE marked
Power with Pi Zero W ~400 mA RX / ~600 mA TX (500 mW)

Included with the Product

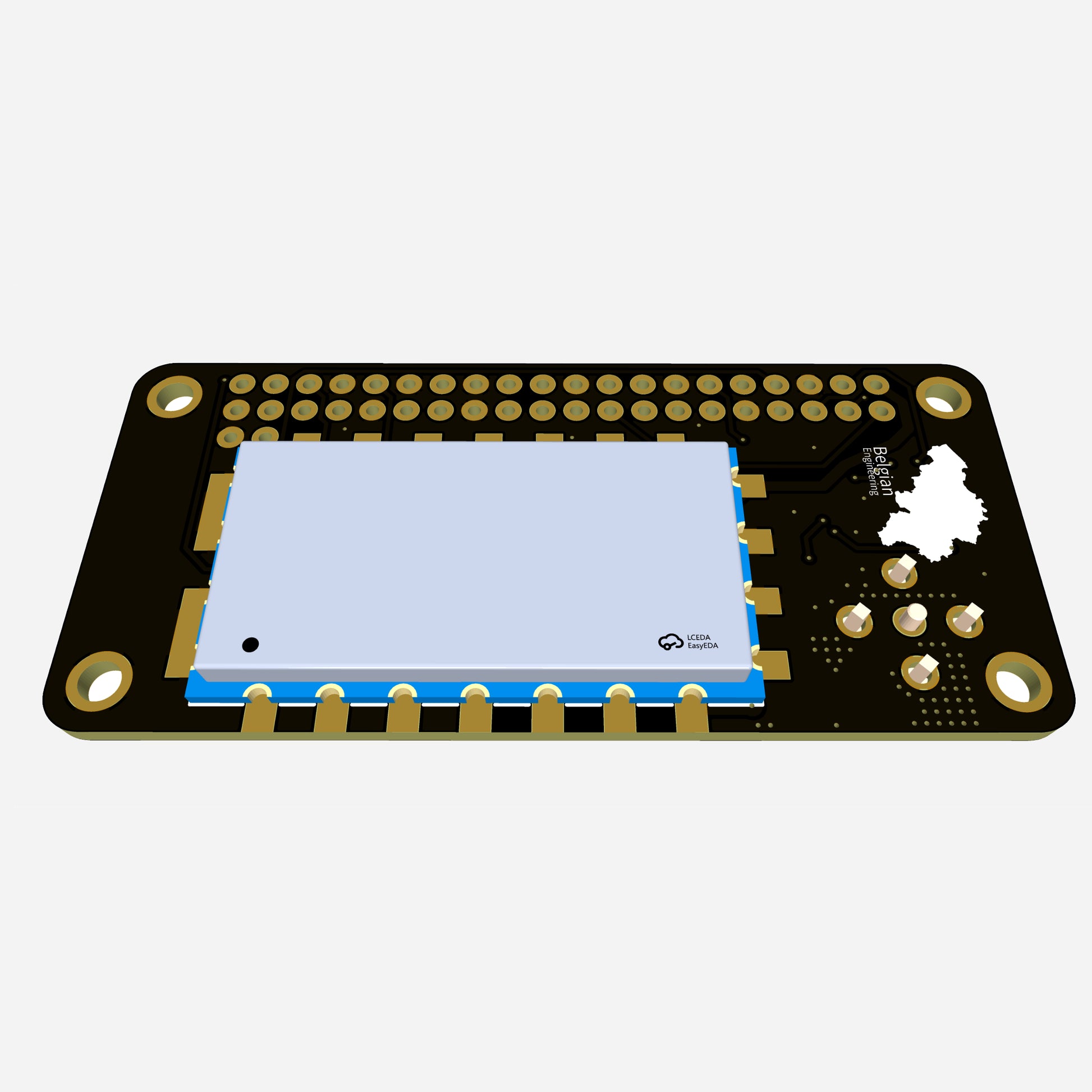

  • Fully assembled with SMA connector, 40-pin header, and RF chip installed.
  • Complete tested device
  • Preloaded SD card with our latest image

Key Features

  • ENIG-finished PCB (Electroless Nickel Immersion Gold)
  • Independent TX/RX frequencies, CTCSS, CDCSS
  • Adjustable RX/TX gain levels
  • Status LEDs: Signal/Tone, TX/PTT
  • Ultra-stable 1 ppm TCXO

Power Consumption with Pi Zero W

  • Receive: ~400 mA
  • Transmit: ~600 mA (500 mW)

Software - Howto - Instructions

SVXSpot Repository and Image







UHF Version Measurements

All measurements in this section apply to the UHF version. VHF measurements follow in the section below.

Sensitivity Measurements

The 12 dB SINAD sensitivity was determined using a 1 kHz tone FM-modulated at a 2.5 kHz deviation and injected into the receiver. This provides an accurate representation of real-world listening performance, fully aligned with industry-standard SINAD measurement procedures.

Compliance Measurements (500mW)

All tests conducted with a calibrated Vector Network Analyzer (VNA) and 36 dB attenuator. Worst-case harmonic: −63.56 dBc (3rd), far surpassing ETSI EN 300 220 (≥43 dB below carrier for ≤30 dBm TX). This offers an extra safety margin of >20 dB. Spectrum confirms excellent spurious suppression and clean transmission inside the 12.5 kHz channel.

Compared with top brands like Kenwood, Icom, and Yaesu, our module demonstrates superior spectral purity, placing it on par with commercial-grade equipment.

Spectrum

SVXLink UHF Transceiver2 Spectrum

Harmonics

SVXLink UHF Transceiver2 Harmonics

Channel Power

SVXLink UHF Transceiver2 Channel Power

Mini-FAQ

  • Which versions are CE marked? — The 500 mW versions are CE marked; the 2 W versions are not CE marked. CE-RED documentation applies only to the 500 mW versions. The CE marking of a 500 mW module does not automatically cover the complete system you build.
  • Which bands are supported? — Choose VHF 2 m (134–174 MHz) or UHF 70 cm (400–480 MHz). Both are available in 500 mW and 2 W versions.
  • Can it act as a hotspot? — Yes. Fully compatible with EchoLink, SVXLink, and AllStar.
  • Digital networks? — Via AnalogBridge (DVSwitch): BrandMeister, OpenDMR, Fusion, etc.
  • Output power? — 500 mW (27 dBm) or 2 W (33 dBm)
  • Sensitivity? — UHF: −124 dBm @ 12 dB SINAD.
  • What antenna is included? — A terminated 50 Ω indoor antenna. Complementary antennas available below for extended coverage.
