ARCA 406021 Outdoor Polycarbonate RF Feedthrough Cabinet

Outdoor polycarbonate enclosure platform for dense RF feedthrough, station-entry, connector breakout, and cable-gland builds.

The ARCA 406021 is a rugged polycarbonate cabinet we use when a standard small enclosure is no longer enough. With its 400 × 600 × 210 mm format, it is large enough for a 19-inch style connector panel or custom mounting plate, making it a very practical platform for organized coax entry and breakout work.

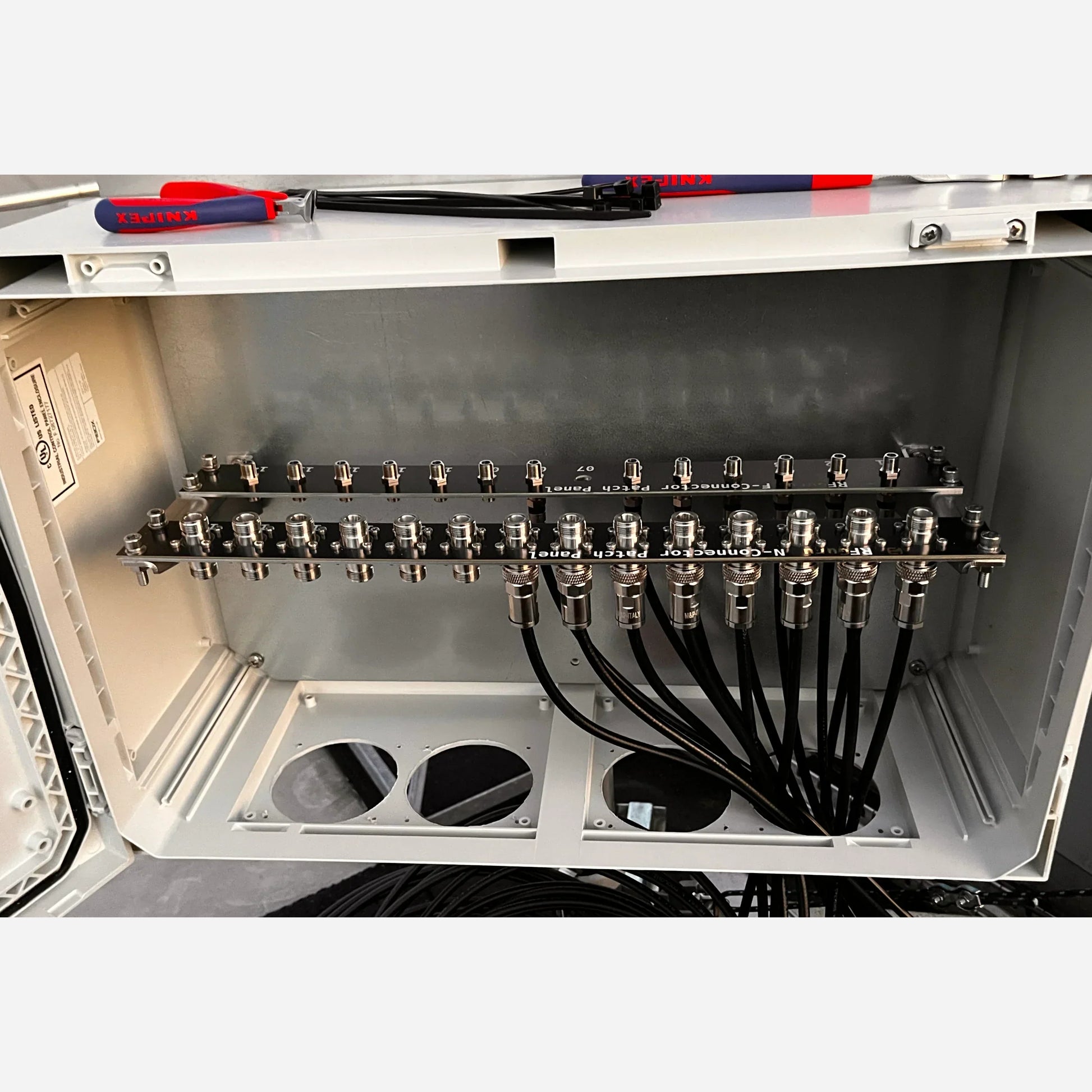

In real station use, this enclosure is particularly well suited for builds that need up to 28 feedthrough positions, 14 for N/PL bulkhead, and/or 14 for F-type cabling, depending on spacing, layout, and cable bend radius. That makes it a strong choice for antenna entry panels, receive-array hubs, remote RF cabinets, SDR feedthrough walls, and outdoor technical installations where many coax lines need to stay protected, labeled, and mechanically secure.

The same cabinet can also be used with large cable glands when you do not want to interrupt the coax at all. In that configuration, the complete coax cable can pass through the enclosure wall, including many common fitted N or PL connector assemblies, and the entry can then be sealed with M&P Silicone-Seal-L cold-shrink silicone sealing tube.

Why We Use This Cabinet for RF Feedthrough Work

• Large usable panel area for multi-port coax entry builds.
• Good depth at 210 mm, which helps with connector bodies, cable bend radius, and internal routing.
• Polycarbonate construction offers excellent outdoor durability without making the enclosure itself part of the RF path.
• Strong environmental rating for outdoor and technical-room use.
• Useful for mixed layouts such as N/PL connectors for main antenna lines and F-type ports for receive-only or RG6-based distribution systems.
• Compatible with cable-gland entries when the coax should remain continuous and no panel connector is desired.

Well Suited For

• Station-entry cabinets for HF, VHF, and UHF coax runs.
• Receive-array distribution using F-type cabling and RG6.
• Remote SDR or antenna switch locations where multiple feeds need weather protection.
• Mast-base breakout boxes for organized transition from outdoor lines to internal patching.
• Hybrid installations mixing N, SO-239, F-type, and cable-gland coax entries in one enclosure.

Connector and Cable-Gland Layout Flexibility

This enclosure is not limited to one connector family. It can be adapted for different RF roles and expanded over time:

• N-N bulkhead layouts for robust outdoor RF interconnects and higher-frequency work.
• PL-PL / SO-239 style layouts for classic HF station entry and amateur-radio coax systems.
• F-F layouts for receive-only systems, bias-tee distribution, and economical RG6-based cabling.
• Cable-gland entries for continuous coax runs where the cable should pass through the wall without adding another RF connector interface.
• Mixed panels where one cabinet handles main coax, receive/control distribution, and direct cable entries at the same time.

Using Cable Glands for Continuous Coax Feedthrough

Panel connectors are useful when you want a clean disconnect point on the enclosure wall. Cable glands are useful when you want the opposite: a continuous coax cable with no extra RF joint at the cabinet wall.

With a suitable large cable gland, the complete coax assembly can be routed through the box, including many common N or PL connector bodies. After the cable is positioned, the gland provides mechanical support and the outside entry can be finished with M&P Silicone-Seal-L. This cold-shrink silicone sleeve collapses around the cable and connector area, helping to create a flexible weather seal without heat, flame, or messy tape layers.

Connector dimensions vary between manufacturers. Always check the largest outside diameter of the fitted connector body before drilling the enclosure or selecting the final gland size.

Specifications at a Glance

Important Practical Note

The enclosure itself is factory-rated to IP66, but once it is drilled for feedthroughs, cable glands, lightning protectors, or custom panels, the final weather resistance depends on the connector hardware, sealing washers, gland quality, silicone sealing, and workmanship. The same is true electrically: the cabinet is the mechanical platform, while grounding, bonding, surge handling, and connector spacing must still be designed correctly for the intended frequency range and power level.

For cable-gland entries, do not let the gland carry the full weight of a hanging coax cable. Use proper strain relief, a drip loop, and internal cable support where needed, especially with heavier coax or stiff outdoor feed lines.

A Good Mechanical Platform for Serious RF Builds

For simple single-cable entry, smaller boxes can work. But once a project needs a real multi-port panel, clear labeling, decent internal routing, future expansion, and a cabinet that will survive outdoor use without quickly becoming cramped, the ARCA 406021 is in a different class. That is exactly why we use it for larger RF feedthrough and breakout work.

Because the cabinet can combine panel connectors and cable glands, it also gives more freedom during station upgrades. You can begin with a smaller connector population and later add more N-N, PL-PL, F-F, or gland-based cable entries as the antenna system expands.
