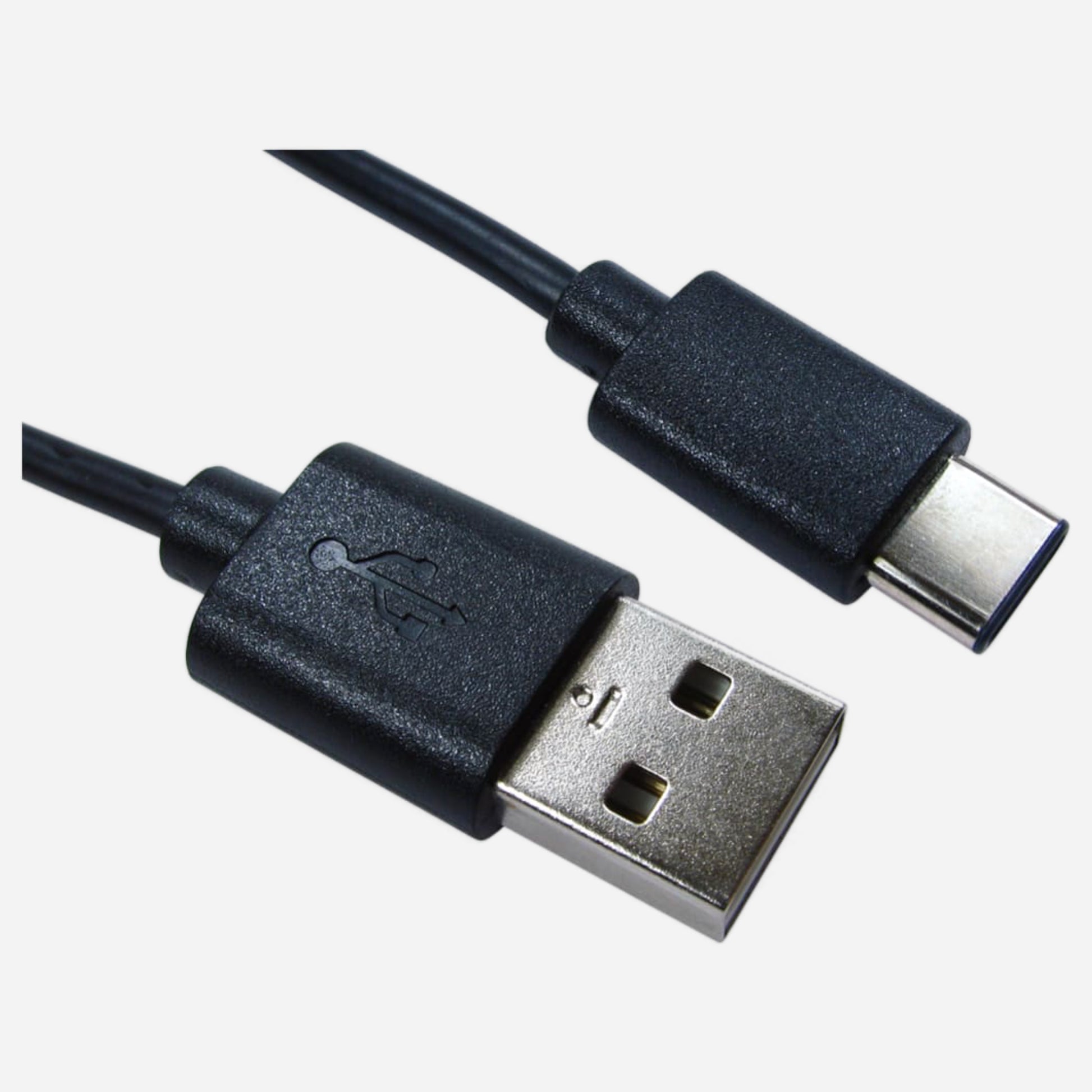

USB Cable, Male USB Type C to Male, USB 2.0 USB Type A, Black (0.5m|1m)
USB Cable, Male USB Type C to Male, USB 2.0 USB Type A, Black (0.5m|1m)
Couldn't load pickup availability
Short, shielded, and practical for station gear.
This USB-C to USB-A cable is a reliable everyday link for power and USB 2.0 data — ideal for hotspots, Raspberry Pi accessories, SDR peripherals, programming cables, and general shack devices where you want a solid, no-drama connection.
USB 2.0 supports data up to 480 Mbps. If you need USB 3.x (5 Gbps+) speeds, use a USB 3.x-rated cable.
Included
- 1× USB-C (Male) to USB-A (Male) cable (choose 0.5 m or 1 m)
RF Note: Why Cable Length Still Matters
In RF environments, USB leads can unintentionally act like “little antennas” that pick up or re-radiate noise. Using a short cable (especially 0.5 m) helps reduce loop area and common-mode pickup. This cable uses shielding (foil + braid) to improve robustness, but good routing still matters: keep it away from feedlines, tuner wiring, and high-field antenna runs.
Tip: If you still see USB-related noise, add a clamp-on ferrite near the device end and route the USB lead away from RF cabling.Features & Benefits
- USB-C (Male) to USB-A (Male) — connects modern USB-C devices to USB-A hosts/chargers
- USB 2.0 wiring — suitable for charging and standard USB data
- Shielded cable construction (foil + braid) for better noise immunity in real installations
- Strain-relief connector boots to reduce flex damage near the plug
- Compact 3 mm outer diameter — flexible and easy to route in tight builds
Specs at a Glance
| Parameter | Specification |
|---|---|
| Connector A | USB Type-C (Male) |
| Connector B | USB Type-A (Male) |
| USB Version | USB 2.0 |
| Data Capability | Up to 480 Mbps (USB 2.0) |
| Available Lengths | 0.5 m or 1.0 m |
| Jacket Color | Black |
| Jacket Material | PVC |
| Cable Shielding | Aluminum braid + foil (with drain wire) |
| Conductors | Copper conductors |
| Outer Diameter | 3 mm |
| Connector Finish | Nickel-plated connectors (with strain relief) |
Typical Uses
- Powering and connecting hotspots, controllers, and shack accessories
- USB links for Raspberry Pi peripherals and station helpers
- USB 2.0 devices: CAT interfaces, programming leads, sound interfaces, and test gear
- Charging and syncing phones/tablets from USB-A power sources
Note: Charge current and voltage drop depend on your power source and load. For high-current 5V devices, shorter cables generally perform better.
Mini-FAQ
- Does this support USB 3.x speeds? — No. This is USB 2.0 (up to 480 Mbps).
- Is it suitable for RF installations? — Yes. It’s shielded, and the 0.5 m version is ideal to minimize pickup. Routing still matters.
- Which length should I choose? — Use 0.5 m when possible for best robustness; use 1 m when you need extra reach.
- Can I use it for charging? — Yes. It supports standard USB charging. Actual current depends on device and charger behavior.
- USB-C on one end means PD? — Not necessarily. USB-C is a connector type. This cable is wired as a USB 2.0 cable.
