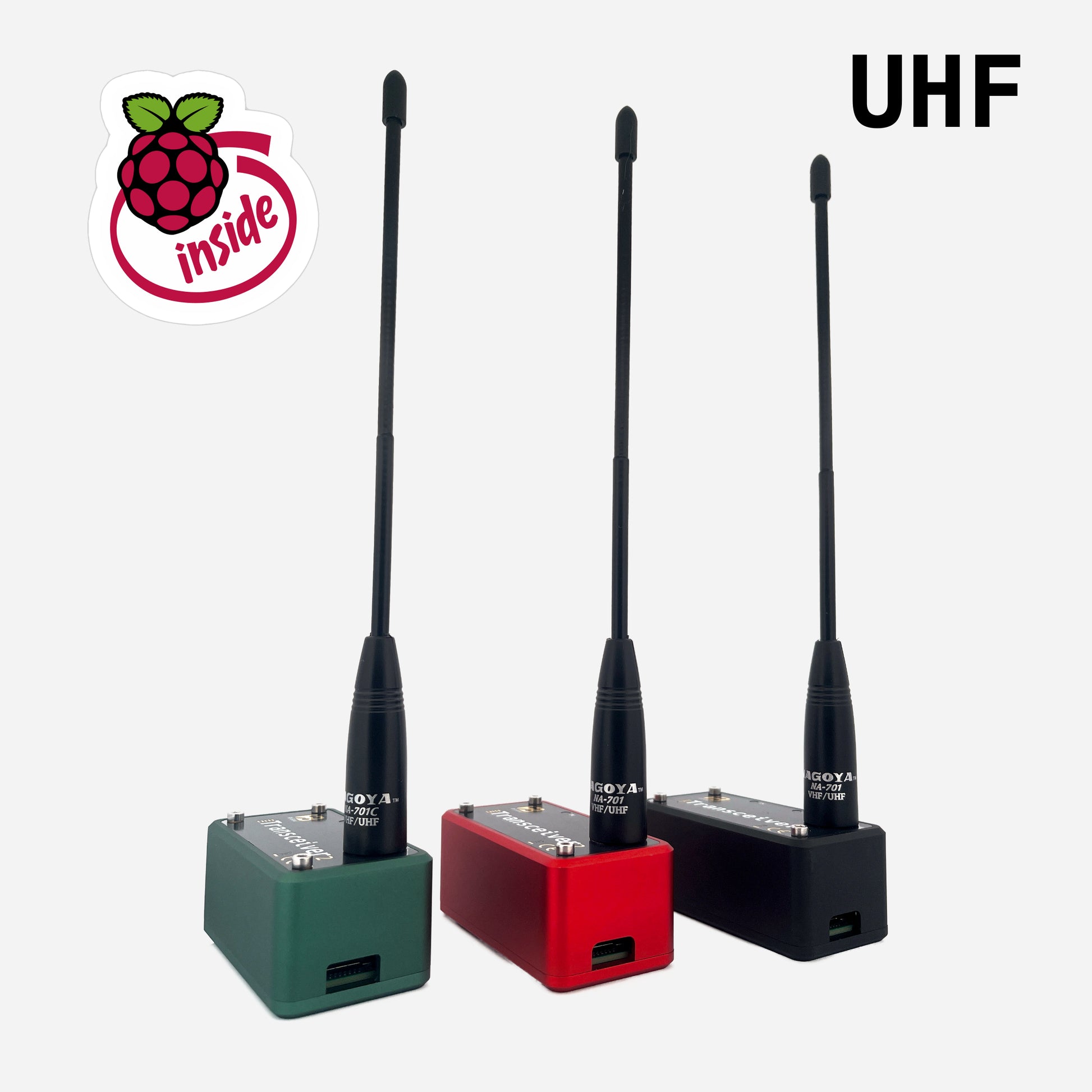

  • A compact device housed in a red aluminium enclosure, featuring a UHF antenna, designed to function as an EchoLink/SVXLink analog transceiver.
  • A compact device housed in a red aluminium enclosure, featuring a UHF antenna, designed to function as an EchoLink/SVXLink analog transceiver.
  • A compact device housed in a dark green aluminium enclosure, featuring a UHF antenna, designed to function as an EchoLink/SVXLink analog transceiver.
  • A compact device housed in a black aluminium enclosure, featuring a UHF antenna, designed to function as an EchoLink/SVXLink analog transceiver.
1 5

RF Guru

SVXLink Analog Transceiver2 70cm UHF 500mW CE

SVXLink Analog Transceiver2 70cm UHF 500mW CE

€199,00 EUR
€199,00 EUR
Sale Sold out
Tax included.
Colour
Now CE Certified — Fully tested for safety, quality, and compliance. Download CE Certificate (PDF)

SVXLink Analog Transceiver2 — Raspberry Pi Zero 2 W Bundle (UHF 70 cm)

The SVXLink Analog Transceiver2 is a cutting-edge HAT designed for the Raspberry Pi Zero. Equipped with a UHF 70 cm band radio module and Wolfson DAC/ADC, it can function as an EchoLink/SVXLink analog hotspot, an SVXLink simplex repeater, or even an APRS digipeater. Combined with AnalogBridge (DVSwitch), it provides seamless access to BrandMeister, OpenDMR, and other networks.

Specs at a Glance

Feature Specification
Frequency Range 400–480 MHz (UHF 70 cm)
Output Power 27 dBm (~500 mW)
RX Sensitivity −109 dBm (12 dB SINAD)
Bandwidth 12.5 kHz / 25 kHz
Clock Stability 1 ppm KDS TCXO
Audio Codec Wolfson WM8960 ADC / 1 W DAC (48 kHz)
Compliance CE (spurious: −63.56 dBc worst case)
Power (with Pi Zero W) ~220 mA RX / ~370 mA TX

Also Available as PCB

View PCB-Only Version

Included in the Bundle

Key Specifications

  • Raspberry Pi pin-compatible HAT
  • PCB ENIG (Electroless Nickel Immersion Gold)
  • Independent Tx/Rx frequency, CTCSS, CDCSS
  • Output Power: 27 dBm (~500 mW)
  • RX Sensitivity: −109 dBm (12 dB SINAD)
  • Adjustable RX/TX volume
  • Status LEDs: Signal/Tone, TX/PTT

Power Consumption with Pi Zero W

  • Receive: ~220 mA
  • Transmit: ~370 mA

Software

SVXLink Bookworm Image
SVXSpot Repository
SVXSpotMain Repository

Measurements

All tests conducted with a calibrated Vector Network Analyzer (VNA) and 36 dB attenuator. Worst-case harmonic: −63.56 dBc (3rd), far surpassing ETSI EN 300 220 (≥43 dB below carrier for ≤30 dBm TX). This offers an extra safety margin of >20 dB. Spectrum confirms excellent spurious suppression and clean transmission inside the 12.5 kHz channel.

Compared with top brands like Kenwood, Icom, and Yaesu, our module demonstrates superior spectral purity, placing it on par with commercial-grade equipment.

Spectrum

SVXLink UHF Transceiver2 Spectrum

Harmonics

SVXLink UHF Transceiver2 Harmonics

Channel Power

SVXLink UHF Transceiver2 Channel Power

Mini-FAQ

  • Is it CE certified? — Yes, CE certificate available above.
  • Which band is supported? — UHF 70 cm, 400–480 MHz.
  • Can it be used as a repeater? — Yes, EchoLink/SVXLink analog simplex repeater functionality supported.
  • Does it support digital networks? — Yes, when paired with AnalogBridge (DVSwitch).
  • Output power? — ~500 mW (27 dBm).
  • RX sensitivity? — ~−109 dBm @ 12 dB SINAD.
  • What antenna is included? — Bundle includes a Nagoya 701SP long-range dual-band antenna (144/430 MHz).
View full details
